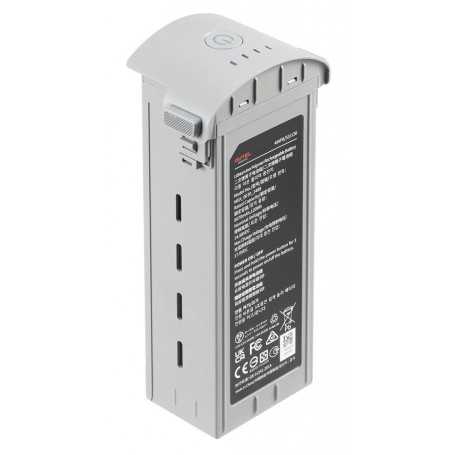

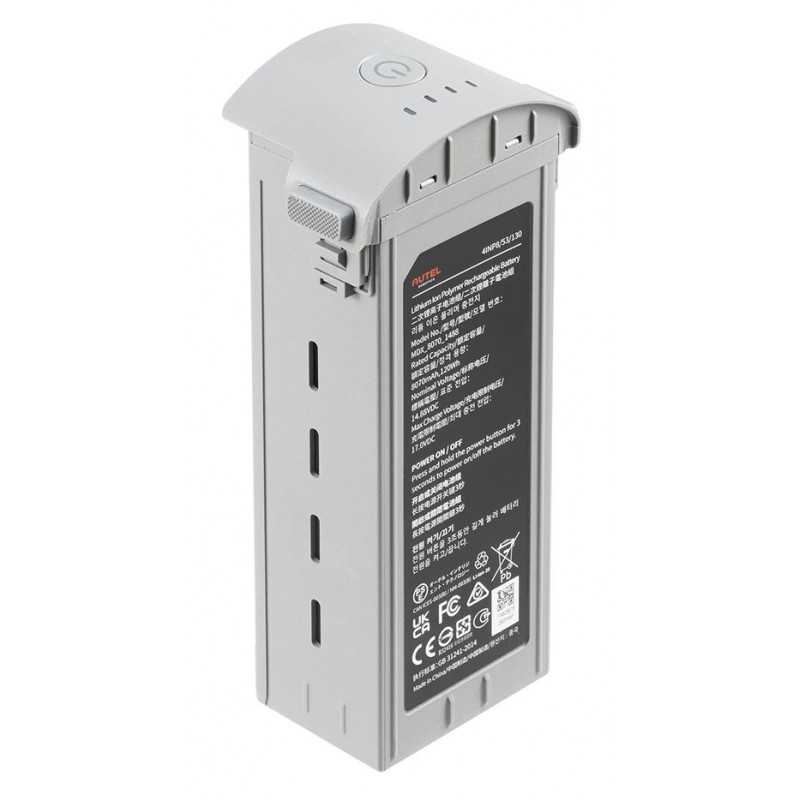

Autel EVO Max 4T Hot-Swappable Battery

Hot swap (Hot Swap) refers to plugging in or out of the system without turning off the power of the system without affecting the normal operation of the system, thereby improving the reliability of the system. Rapid maintenance, redundancy and timely recovery from disasters, etc.

Additional Features of Autel EVO Max 4T Battery

The following additional features protect and extend battery life.

The battery has a self-heating function, and in a low temperature environment:

• After inserting the aircraft and turning on the battery, if the battery temperature is lower than 10°C, the self-heating function will be activated

Yes, the self-heating function of the battery will be automatically turned off after the aircraft takes off. Note that when the battery temperature

Below -10°C, the aircraft will not be allowed to take off, it is recommended to wait until the self-heating is over before operating

• If the battery is not inserted into the aircraft, short press the power button and then long press the power button for 3 seconds to start the aircraft

Automatic self-heating function, the final battery temperature will remain between 15°C and 20°C. battery protection

Warm time is about 30 minutes. Press and hold the power button for 3 seconds during the heating process to exit the battery

Heating function.

• When the battery is in the state of heating and keeping warm, the state of the battery level indicator flashes as shown in the figure.

•Storage self-discharge protection: If the battery is stored in a high temperature environment or not used for 6 days

High, the self-discharge protection will activate. The battery will automatically discharge to a safe level. This is silent

default settings, and the discharge process takes 2-3 days. Although there is no indication that the battery is in a self-discharge cycle,

However, you may notice that the battery is slightly warm, which is normal. discharge threshold can be used

Autel Enterprise App for customization.

• Low battery protection: If the battery is low, the battery will automatically enter sleep mode to prevent over-discharge.

In this mode, the battery does not respond when the power button is pressed. To wake up the battery, connect it to the charger.

Autel EVO Max 4T Battery Specification

Capacity 8070mAh

Nominal voltage 14.88V

Charging limit voltage 17.0V

Battery Type Li-Po 4S

Energy 120Wh

Charging ambient temperature 5~45℃

Maximum charging power 247W
