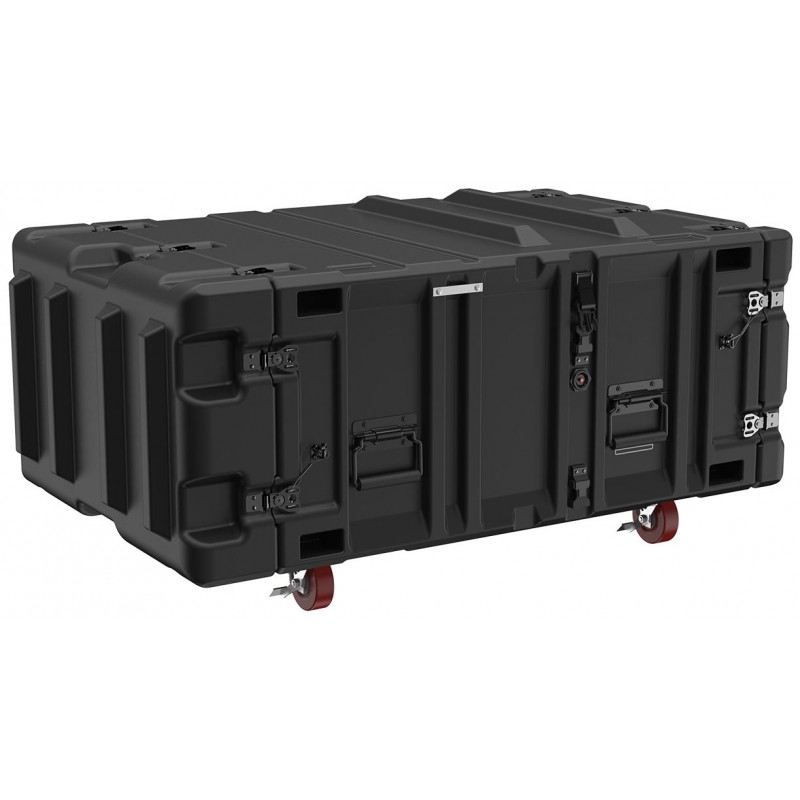

Peli Classic V-Series 5U Rack Mount Case (33 Inch)

These cases are designed to provide secure transport for rack-mountable electronics, offering durability and functionality for a wide range of applications. Available in 3U, 4U, 5U, 7U, and 9U sizes, they are engineered to handle equipment payloads of 80-100 lbs. (36-45 kg) for 3U-5U cases and 100-170 lbs. (45-77 kg) for 7U-9U cases. The black case features anti-reflective zinc cobalt black (HCB) catch-and-strike hardware, ensuring both practicality and a sleek appearance. CLASSIC-V-5U-M6

3146.36 $
Tax included

2558.02 $ net price (non-EU countries)

Description

These cases are designed to provide secure transport for rack-mountable electronics, offering durability and functionality for a wide range of applications. Available in 3U, 4U, 5U, 7U, and 9U sizes, they are engineered to handle equipment payloads of 80-100 lbs. (36-45 kg) for 3U-5U cases and 100-170 lbs. (45-77 kg) for 7U-9U cases. The black case features anti-reflective zinc cobalt black (HCB) catch-and-strike hardware, ensuring both practicality and a sleek appearance.

Constructed from rotomolded polyethylene with a silicone sponge O-ring seal, aluminum purge body, and black oxide-coated stainless steel hardware, these cases are built to last. With features like molded-in stacking ribs and shock isolation through elastomeric mounts, they ensure your sensitive equipment is protected during transport while meeting ANSI/EIA-310-C standards for universal rack mounting.

Key Features:
  • Rugged steel rack frame with a 19" (48 cm) wide and 33" (83 cm) deep fixed square hole frame for universal equipment fit
  • Two lockable cable catches per lid for added security
  • Black stainless steel handles and lid hangers for convenient storage while in use
  • Molded stacking ribs and coupling catches to securely stack cases
  • Sealed gasket and pressure relief valve (PRV) to maintain watertight integrity and prevent over-pressurization
  • Four removable 3.5" (8.9 cm) heavy-duty bottom casters for easy mobility
  • Choice of SAE 10-32 or Metric M6 clip nuts
  • REACH and RoHS compliant

Specifications:
  • Exterior Dimensions: 116.3 x 68.6 x 42.2 cm
  • Rack Height: 22.2 cm
  • Rack Depth: 83.8 cm
  • Interior Lid Depth: 6.4 cm
  • Interior Back Lid Depth: 13.3 cm
  • Weight: 25.4 kg
