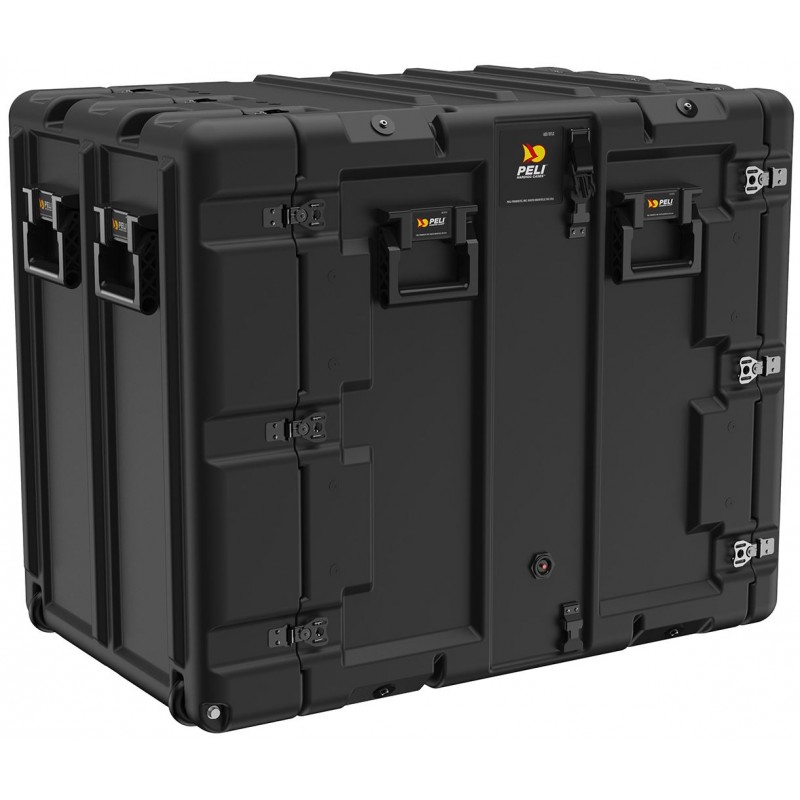

Peli Super V 14U Rack Mount Case (24 Inch)
zoom_out_map
chevron_left chevron_right
New

Peli Super V 14U Rack Mount Case (24 Inch)

Designed for secure transport of rack-mountable electronics. SUPER-V-14U-M6

3775.03 $
Tax included

3069.13 $ net price (non-EU countries)

Description

SUPER V-SERIES 14U, 2128-02/29/05W
  • Designed for secure transport of rack-mountable electronics.
  • Equipment Payload Weight:
    • 3U – 5U: 80-100 lbs. (36-45 kg) per case.
    • 7U – 14U: 100-170 lbs. (45-77 kg) per case.
  • Features a fixed square hole frame for universal equipment compatibility.
  • Lids: 2” front lid, 5” rear lid with integrated hangers for easy storage during use.
  • Anti-reflective black hardware and coupling catches for secure stacking.
  • Watertight design with a sealed gasket and pressure relief valve (PRV) to prevent overpressurization.
  • Comfort grip plastic handles and molded rear edge casters with additional handles on the lid for effortless movement.
  • Metric M6 clip nuts provide enhanced flexibility for mounting equipment.
  • Compliant with REACH and RoHS standards.
  • Available in multiple sizes: 3U, 4U, 5U, 7U, 9U, 11U, and 14U.

SPECIFICATIONS
Dimensions:
  • Exterior (L×W×D): 97.8 x 71.9 x 77.7 cm
Measurements:
  • Rack Height: 62.2 cm
  • Rack Depth: 61 cm
  • Interior Lid Depth: Front: 5.6 cm, Back: 13.2 cm
Weights:
  • Weight: 33.6 kg
Materials:
  • Body Material: RotoMolded Polyethylene
  • O-Ring Material: Silicone Sponge
  • Purge Body Material: Aluminum
  • Hardware Material: Stainless Steel (Black Oxide) / RoHS Nickel Black
  • Frame Material: Steel (Clear Coated)
