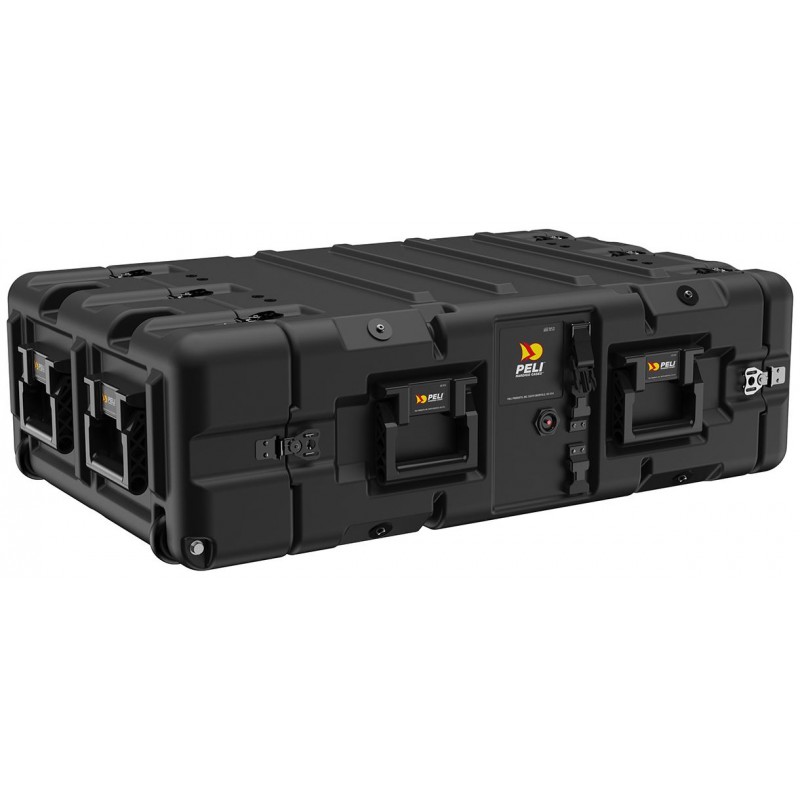

Peli Super V 3U Rack Mount Case (24 Inch)
zoom_out_map
chevron_left chevron_right
New

Peli Super V 3U Rack Mount Case (24 Inch)

Designed to comply with Def Stan 81-41 Level J, Military Standard 810, STANAG 4340, and other European standards. SUPER-V-3U-M6

2876.04 $
Tax included

2338.24 $ net price (non-EU countries)

Description

High-strength steel rack frame supports equipment weighing 10 to 50 kg.
  • Designed to comply with Def Stan 81-41 Level J, Military Standard 810, STANAG 4340, and other European standards.
  • Meets ANSI/EIA-310-C specifications for universal rack-mounting hole patterns.
  • Available in 10 models with frame heights ranging from 4U to 12U and two depths: 480 mm and 610 mm.
  • Fixed square-hole frame ensures universal equipment compatibility.
  • Equipped with a 2” front lid and a 5” rear lid.
  • Includes lid hangers for convenient storage of lids during use.
  • Anti-reflective black hardware enhances durability and usability.
  • Coupling catches enable secure stacking of containers.
  • Sealed gasket and pressure relief valve (PRV) ensure the container remains watertight and prevent overpressurization.
  • Comfort-grip plastic handles make handling easier.
  • Molded rear edge casters, along with additional handles on the lid, facilitate smooth movement.
  • Metric M6 clip nuts provide greater flexibility for mounting various equipment.
  • Fully compliant with REACH and RoHS environmental standards.

SPECIFICATIONS
Dimensions:
  • Exterior (L×W×D): 97.8 x 71.9 x 29 cm
Measurements:
  • Rack Height: 13.3 cm
  • Rack Depth: 61 cm
  • Interior Lid Depth (Front): 5.6 cm
  • Interior Lid Depth (Rear): 13.2 cm
Weight:
  • Total Weight: 22.7 kg
Materials:
  • Body Material: RotoMolded Polyethylene
  • Seal Material (O-Ring): Silicone Sponge
  • Purge Valve Body Material: Aluminum
  • Hardware Material: Stainless Steel (Black Oxide) / RoHS Nickel Black
  • Frame Material: Steel (Clear Coated)

Data sheet

V1TFHOP833
