Cobham SAILOR 7222 VHF DSC Class A

Highly resilient and easy to operate in any situation, the SAILOR 7222 VHF DSC Class A is the most advanced SAILOR radio for demanding users operating within the SOLAS maritime environment. As a next generation solution at the forefront of radio technology, it unlocks new performance gains that improve critical safety and regular operational communication.

Technology updated - GMDSS compliant

Exceeding standards set by IMO regulation for GMDSS Class A VHF, the August 2021 introduced Bridge Alert Management IMO resolution MSC.302(87), as well as IEC 62923-1 & IEC 62923-2, the SAILOR 7222 VHF DSC Class A is a robust platform for when clear communication could make the difference between a nonevent or a major incident.

Building on the established technology leadership of SAILOR VHF DSC radios before it, SAILOR 7222 VHF DSC Class A features updated hardware and software to deliver even more reliability. Its new and innovative, user-friendly 5.5” TFT touchscreen interface further streamlines workflows and optimises operational safety and efficiency.

Flexible features and deployment

SAILOR 7222 VHF DSC Class A is quick and easy to install standalone, or as a core component of a SAILOR GMDSS console. Advanced networking functionality also significantly reduces the installation and service burden, when deployed as part of a fully compliant solution with other compatible SAILOR products, including mini-C, MF/HF, NAVTEX and AIS. Providing communication clarity at all times, the SAILOR 7222 VHF DSC Class A VHF is far more than just a means of meeting regulations. It’s a vital tool for daily operations with the features and ruggedness for diverse users on any vessel, from trawlers and workboats to merchant ships and specialist offshore vessels.

The best just got better

Flexible screen colour options for optimal operation day and night

Intuitive and easy to use interface reduces errors and improves safety

Unique SAILOR Replay function enables simple and fast message verification

Powerful 6W loudspeaker for clear audio inside or outside (rated IPx6/IPx8)

Complete accessories portfolio including microphones and handsets

LAN based service interface streamlines maintenance and troubleshooting

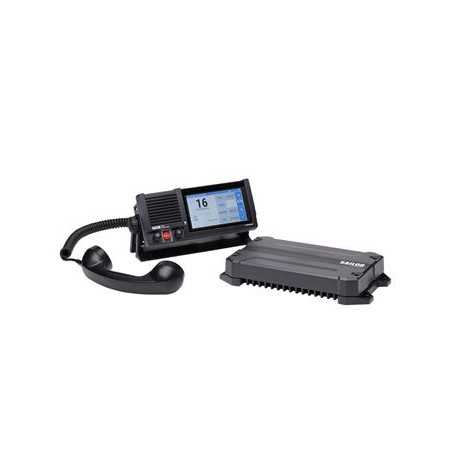

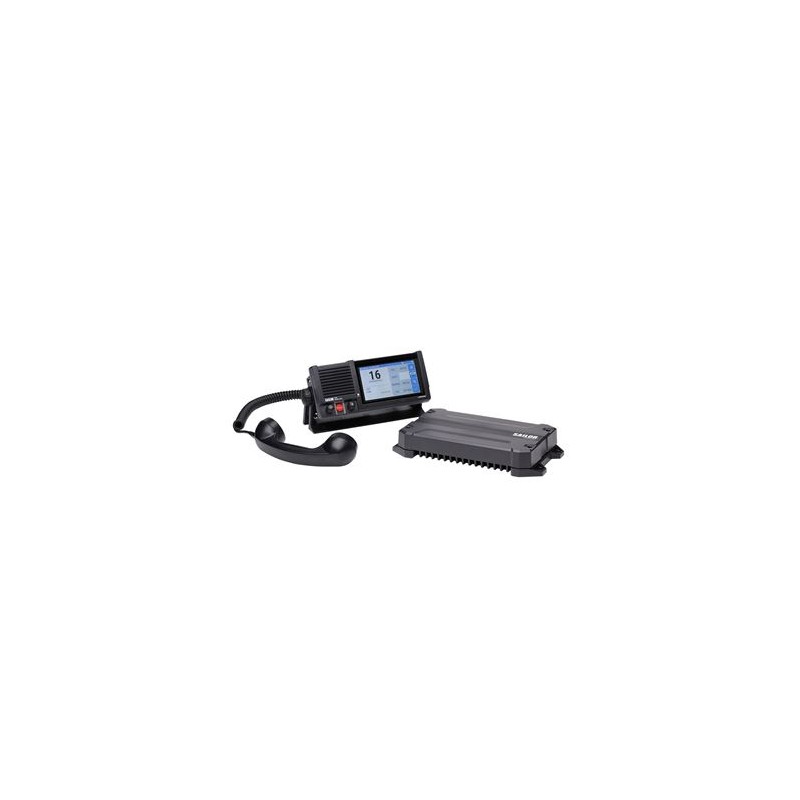

Included in system

SAILOR 7224 VHF Control Unit incl Power Cable

SAILOR 6201 Handset incl Cradle

SAILOR 7226 VHF Transceiver Unit

Note 1: Mounting accessories MUST be ordered seperately

Note 2: Connection between CU andTU must be made using a shielded LAN cable - up to 50m. Not included.

SAILOR 7226 VHF Transceiver Unit

TECHNICAL SPECIFICATIONS

VHF (136-174 MHz)

Weight 1.5 kg (3.3 lbs)

Dimensions HxWxD: 161 x 306 x 51 mm

Operating temperatures -15°C to +55°C

Storage temperature -25°C to +70°C

Ingress protection IPX2

Power supply 24 VDC +30%/-10%

Power consumption Rx operative: 8 W

(typical) Tx 25 W operative: 65 W

Tx 1 W operative: 18 W

Heat dissipation Rx operative: 8 W

(typical) Tx 25 W operative: 40 W

Tx 1 W operative: 17 W

Rx/Tx ant. input/output 50 ohm @ Tx voice/Tc DSC & Rx voice

DSC ant. input 50 ohm @ Rx DSC

LAN 2 LAN ports category 6 STP

Frequency range Voice: 156.000 MHz — 164.000 MHz

DSC: 156.525 MHz

Channel spacing 25 kHz, all international maritime channels

Number of P channels The radio may be programmed with up to 100 private channels in all channel

Modulation 16K0G3E, 16KOG2B (DSC)

TRANSMITTER

RF output power dB High: 25 W +0 dB / - 1.5

dB Low: 1 W +0 dB / - 1.5

Frequency error +/- 3ppm

RECEIVER @ VOICE

Sensitivity < -119 dBm typically @ 20 dB SINAD

LF power Built-in loudspeaker: 6 W (at 5 kHz dev./1 kHz tone)

External loudspeaker: 6 W / 8 Ohm

RECEIVER @ DSC

Sensitivity -117 dBm

SAILOR 7224 Control Unit

TECHNICAL SPECIFICATIONS

Weight 1.0 kg (2.2 lbs)

Dimensions Height: Outer dimension 107 mm, hole height for flush mount 89 mm

Width: Outer dimension 241 mm, hole width for flush mount 227 mm

Depth: Outer dimension from front of knobs 104 mm, depth for flush mount 94 mm

Operating temperature -15°C to 55°C (5°F to 131°F)

Storage temperature -25°C to 70°C (-13°F to 158°F)

Ingress Protection IP54 when flush-mounted (Estimated, only front exposed)

IP20 for other installation (whole unit exposed)

Power supply +24 V DC nom. (-10% / +30%)

Power consumption 10 W @ 24 VDC standby

33 W @ 24 VDC max

Display 5.5” TFT with capacitive multi touch – 350 cd/m2 . (e.g.800x600 , 1024x768) – 40k Hours to half Brightness

Speaker 2 LAN ports supporting RSTP and 10/100 Mbit 1

LAN port not supporting RSTP

USB USB 2.0

CTRL_Port Supporting up to four SAILOR 6204

ACC_Port Supporting Handset & Hand Microphone. NMEA for GNSS and AIS

AUX_Port Support for VDR, Alarm I/O, GNSS, AUX OC and

Ext. Speaker. Max audio output power: 6W (external LS @ 5 kHz deviation/1kHz)
