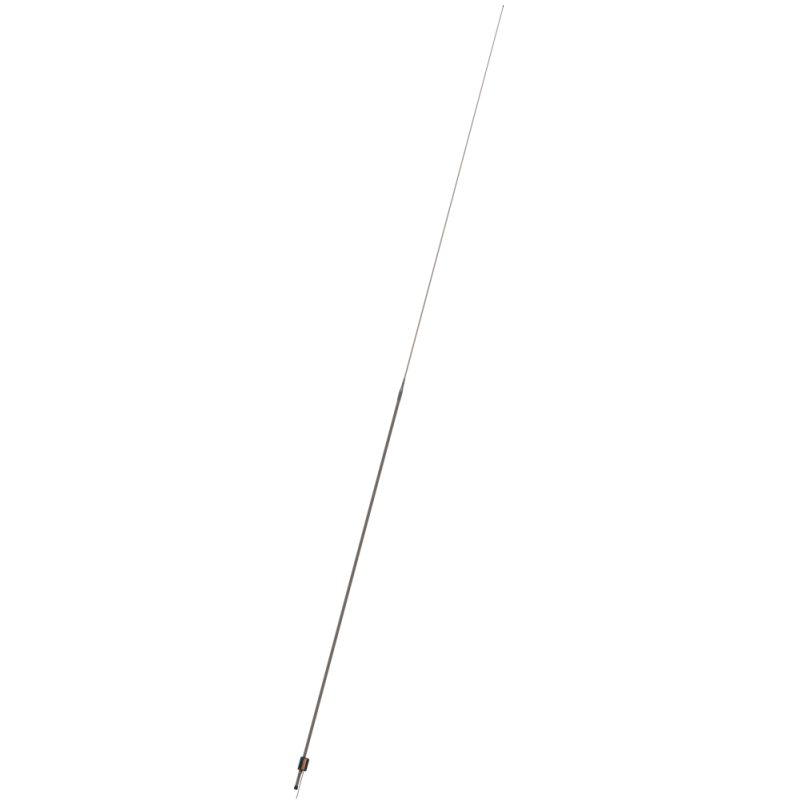

Scan Antenna HF620 RX, 6 Meters

Introducing the Scan Antenna HF620 RX, a high-performance 6-meter receiving antenna designed for superior signal reception in the 0.15-30 MHz frequency range. Sporting a part number of 13620-012, this outstanding antenna provides excellent coverage across the specified range and ensures crystal clear listening experiences. Enhance your radio communication system with the reliable and efficient Scan Antenna HF620 RX that promises an effective and easy-to-install solution for all your listening needs. Upgrade your setup with this premium choice and experience the difference in quality and performance today.
465.30 $
Tax included

378.29 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

High quality 6 m high HF antenna for professional use

Built in matching transformer for low frequency receiving

Rugged design

Chrome plated solid brass joints

Designed for rail mounting

Fed via screw terminal inside connection box with standard coaxial cable (Ø 5 - 10 mm)

Full omni-directional receving pattern



Electrical specifications

FREQUENCY 0.15 - 30 MHz (LF, MF and HF)

IMPEDANCE 50 Ohm

POLARISATION Vertical

MAX. INPUT POWER n/a (Receive only)

STATIC CAPACITANCE 70 pF

INSULATION RESISTANCE 10 GOhm

ELECTRIC LENGTH 5550 mm



Mechanical specifications

COLOR White

HEIGHT 6 m

WEIGHT 2.2 kg

DIAMETER Ø 21 to Ø 5 mm

MOUNTING Rail Bracket Kit (Small) P/N 10000-153 (Not supplied!)

MOUNTING PLACE On rail or pole (Ø 30 - 90 mm)

MOUNTING INSTRUCTION Supplied

MATERIALS PU-painted heavy duty glass-fibre tubes and chromed solid brass

SURVIVAL WIND SPEED 55 m/s (125 mph)

OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR Screw terminal inside connection box

CABLE No cable supplied (Use standard coax cable Ø 5 - 10 mm)

SERIAL NO. On product label

Data sheet
