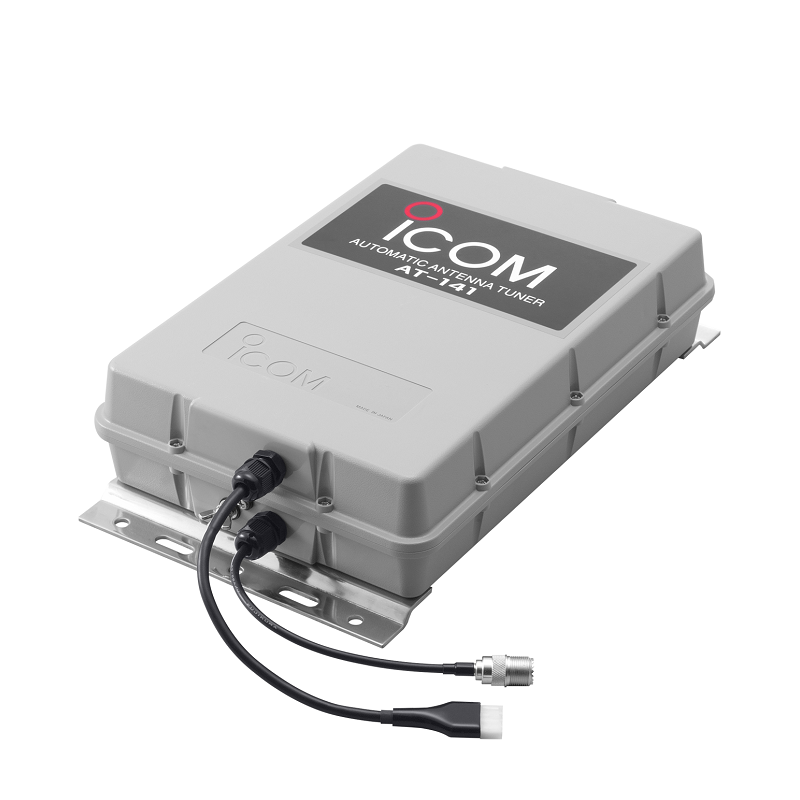

Icom Antenna Tuner AT-141 Version 45 for GM800

Frequency range 100 kHz-30 MHz

45 frequency memories for shorter tuning time.

Specifications

Frequency coverage 1.6–30 MHz (with 7 m or longer antenna element)

Power supply requirement 13.6 V DC (supplied from the HF transceiver)

Current drain Maximum 2 A

Operating temperature range –20°C to +55°C

Weight (approximately) 2.5 kg

Antenna connector SO-239 (50 Ω)

Maximum Input power 150 W (PEP) 100 W (continuous)

Automatic tuning time Approximately 2 to 3 seconds (general condition) Maximum 15 seconds

Automatic tuning accuracy SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ)

Usable pole diameter 32 to 60 mm

IP rating IPX6

Note Version 45 must be used for MED certification compliance with the GM800.

All stated specifications are subject to change without notice or obligation
