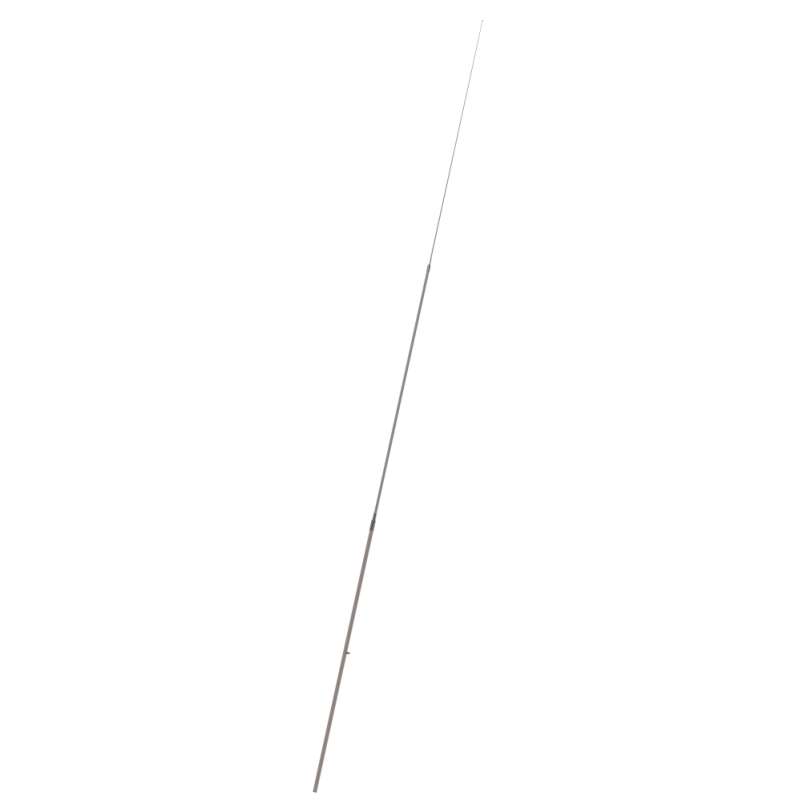

Scan Antenna HF8000 TX/RX, 8 Meters

Introducing the Scan Antenna HF8000 TX/RX - a high-performance, versatile communication solution designed for optimal results in the 1.4 to 30 MHz frequency range. This 8-meter long antenna is perfect for a wide array of applications, including amateur radio, marine communication, and emergency services. Its durable construction ensures longevity and provides reliable communication in various environments. The part number 13800-012 signifies its compatibility with numerous radio systems. Enhance your communication capabilities and experience the convenience of the HF8000 TX/RX 8-meter Scan Antenna.
633.31 $
Tax included

514.89 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

High quality self supporting 8 m high HF antenna for professional use

Designed for GMDSS installations

Rugged design

Chrome plated solid brass joints

Designed for rail mounting

Side fed via open single wire

Full omni-directional radiation pattern



Electrical specifications

FREQUENCY 1.4 - 30 MHz (MF and HF)

POLARISATION Vertical

MAX. INPUT POWER 1200 W PEP

STATIC CAPACITANCE 100 pF

INSULATION RESISTANCE 10 GOhm

ELECTRIC LENGTH 6790 mm



Mechanical specifications

COLOR White

HEIGHT 8 m

WEIGHT 6.0 kg

DIAMETER Ø 40 to Ø 5 mm

MOUNTING Rail Bracket Kit (Large) P/N 10000-163 (Not supplied!)

MOUNTING PLACE On rail or pole (Ø 30 - 90 mm)

MOUNTING INSTRUCTION Supplied

MATERIALS PU-painted heavy duty glass-fibre tubes and chromed solid brass

SURVIVAL WIND SPEED 55 m/s (125 mph)

OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR Screw terminal

CABLE No cable supplied (Use open single wire)

SERIAL NO. On product label
