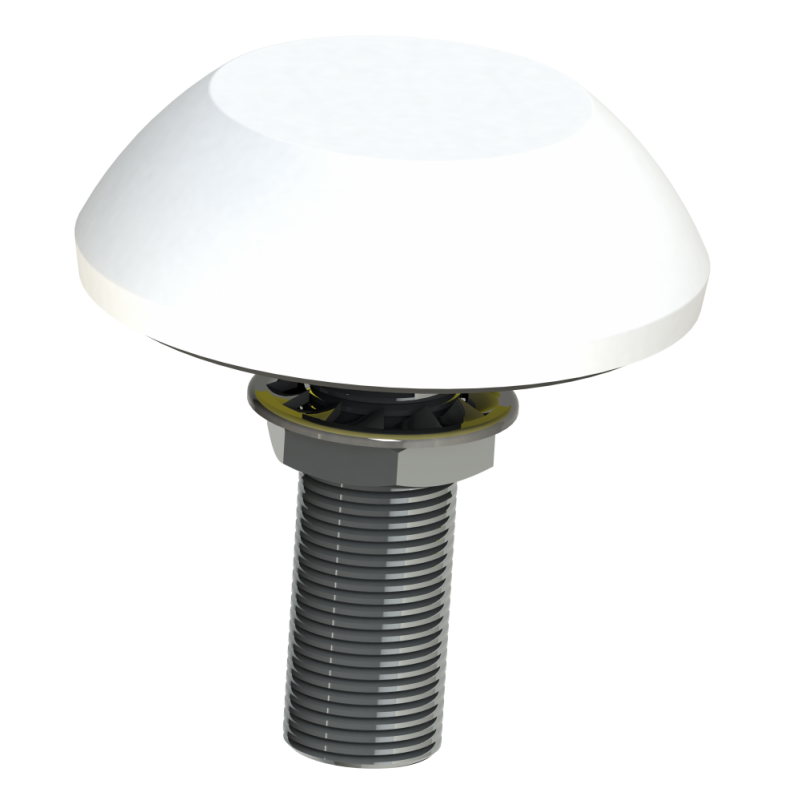

Scan Antenna GNSS01 (White) - GPS Antenna

Introducing the Scan Antenna GNSS01 (white) - a high-performance GPS antenna designed to significantly enhance your navigation accuracy and signal reception. With its sleek white design, this antenna is not only stylish but also a highly reliable solution for your GPS navigation needs. Part number 16001-001, the GNSS01 GPS antenna boasts advanced features to ensure seamless connectivity and optimal performance in various environments. Upgrade your GPS navigation system with the Scan Antenna GNSS01, and experience superior reception and precise positioning capabilities, giving you the confidence to venture further and explore the world.
92.25 $
Tax included

75 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

Active GNSS antenna for through-hole deck or bracket mounting.

  • For navigation and tracking purpose
  • Low profile design
  • Non-corrosive



Electrical specifications

FREQUENCY 1561.1 MHz, 1575.42 MHz, 1598.1 - 1605.4 MHz (GLONASS/GPS & Galileo/ BeiDou)

IMPEDANCE 50 ohm

SATELLITE SYSTEM GLONASS, GPS, Galileo and BeiDou

POLARISATION RHC (Right Hand Circular)

LNA GAIN 26 dB

NOISE FIGURE 1.35 dB

SUPPLY VOLTAGE 3 - 5.5 V DC (Fed via cable)

CURRENT CONSUMPTION, AVERAGE 20 mA



Mechanical specifications

COLOR White

HEIGHT 15 mm

WEIGHT 60 g

DIAMETER Ø 48 mm

MOUNTING Bolt-on with adhesive tape for effective sealing

MOUNTING PLACE On horizontal surface (Max panel thickness 20 mm)

MOUNTING INSTRUCTION Unobstructed view to satellites

MOUNTING HOLE Ø 13 mm

MATERIALS ABS, PE, brass and PCB

OPERATING TEMPERATURE -40C to +70C

CONNECTOR FME-male (Integrated in base)

CABLE No cable supplied

INGRESS PROTECTION IP65 (When mounted)
