Em-trak SART100 IMO/SOLAS Certified AIS Transponder
zoom_out_map
chevron_left chevron_right

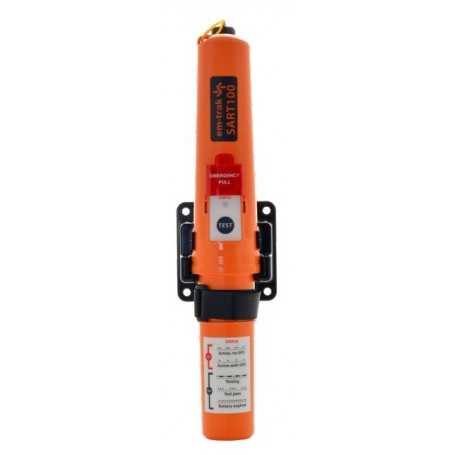

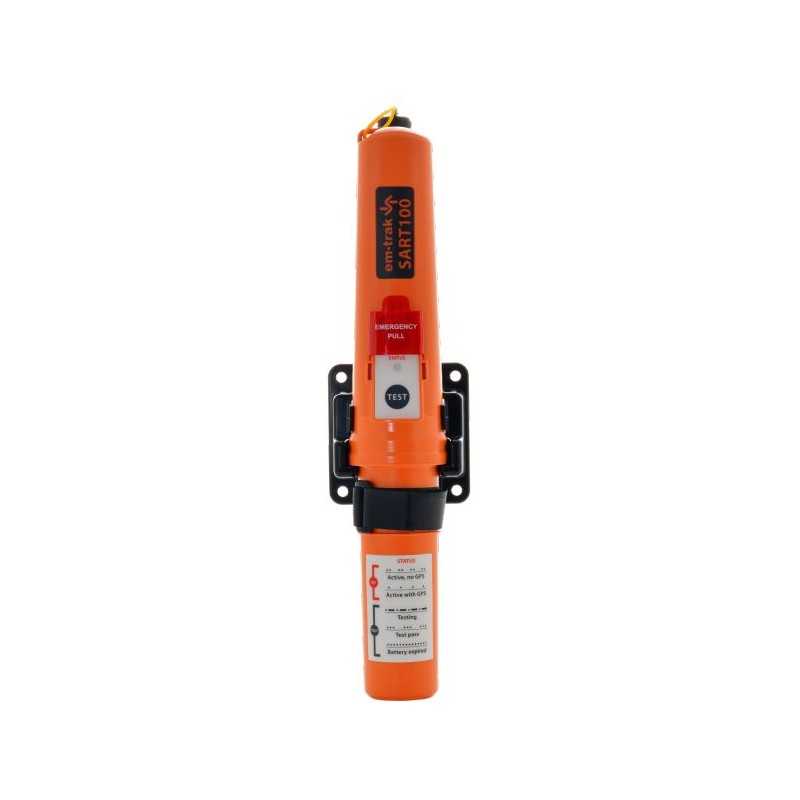

Em-trak SART100 IMO/SOLAS Certified AIS Transponder

Introducing the em-trak SART100, an IMO-SOLAS certified AIS search and rescue transponder designed to provide a reliable and efficient solution for maritime safety and emergency situations. Part Number 409-0018, this advanced transponder utilizes cutting-edge technology to ensure prompt detection and response during critical moments at sea. Equipped with superior performance features, em-trak SART100 is built to conform with the International Maritime Organization (IMO) and Safety of Life at Sea (SOLAS) specifications, enhancing your vessel's safety and communication capabilities. Invest in peace of mind and maritime security with the em-trak SART100 AIS transponder.
$783.51
Tax included

637 $ net price (non-EU countries)

100% secure payments

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

The SART100 is a IMO-SOLAS certified AIS search and rescue transponder. Engineered for complete reliability, SART100 can be stored for years and when needed instantly activated to transmit an emergency transmission, which all AIS equipped vessels and aircraft will receive and pin-point your exact location. SART100 is ruggedized and supplied with its own grab bag and quick release vessel bracket.



FEATURES

  • IMO SOLAS certified and approved AIS SART
  • 5 years minimum maintenance free continuous standby
  • Easy to use in an emergency
  • Ruggedized, weather and waterproof to IPx6 and IPx8
  • Complete kit, inclusive of quick release mounting bracket and grab bag



PHYSICAL & ENVIRONMENTAL SPECIFICATION

Size (H x W) 68 x 384mm

Weight 360g

Operating temperature -25°C to +55°C

Storage temperature -25°C to +70°C

Ingress protection IPx6 and IPx8

ELECTRICAL SPECIFICATION

Battery capacity 3000mAh

Battery type 6V Lithium primary cell

Battery life (default operating conditions) 96 hours

STANDARDS COMPLIANCE

AIS standards IEC 61097-14

Product safety standards EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013

Environmental standards IEC 60945 Ed. 4

GNSS performance standards IEC 61108-1 Ed 2.0

GNSS

Systems supported GPS

Channels 48

Internal/external antenna Internal only

Time to first fix from cold start 35s

VHF TRANSCEIVER

VDL access scheme Modified SOTDMA

Operating frequency 161.975MHz and 162.025MHz

Channel bandwidth 25kHz

Receivers/transmitters 1 x transmitter

AIS transmitter power 1W (30dBm radiated)

USER INTERFACE

Buttons Activation and test

Indicators Status indicator

Data sheet

G94CIN30SM
