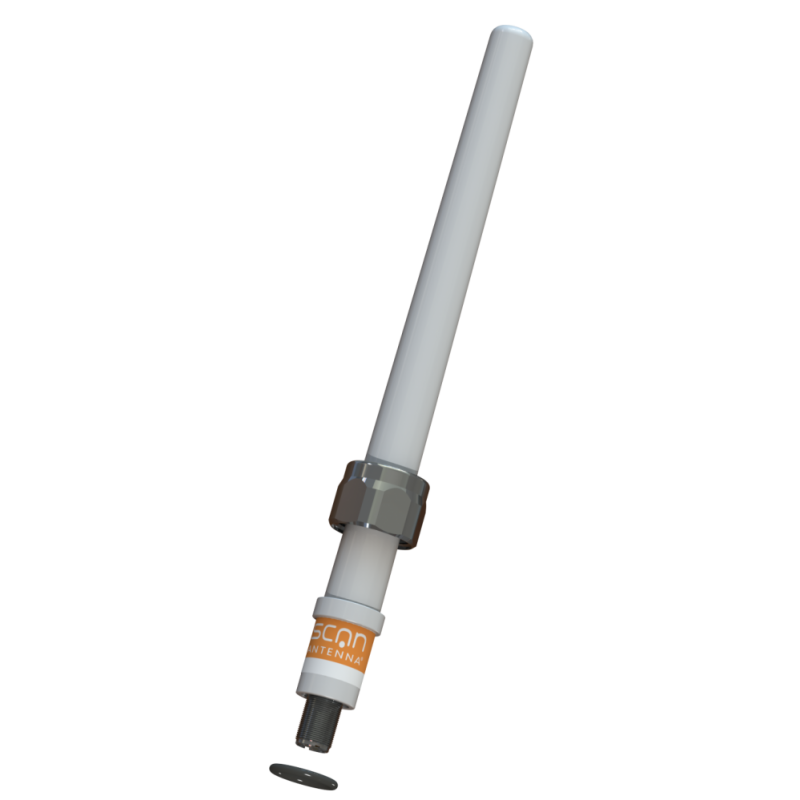

Scan Antenna Navtex Tri-Band (Antenna + 1" Revolving Nut)

Introducing the Scan Navtex Tri-Band Antenna (Part Number 16201-432), a top-notch solution for receiving crucial marine navigational and weather information. This package includes a high-quality antenna and a 1'' revolving nut, ensuring easy and secure installation on your vessel. Designed for exceptional performance and durability, this tri-band antenna is ideal for hassle-free reception of Navtex transmissions, allowing you to stay informed about the latest updates in maritime safety. Enhance your navigation and communication system with our reliable and efficient Scan Navtex Tri-Band Antenna and never miss a beat on the seas.
361.62 $
Tax included

294 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

  • Active 3-band Navtex (Navigational Telex) antenna
  • Low-profile end-fed multiband antenna design
  • No groundplane needed
  • Mounting kit for mounting on G1"-11 threaded pole or bracket included
  • Dedicated Power supply available (not included)



Electrical specifications

FREQUENCY 0.49 MHz, 0.518 MHz, 4.2095 MHz (NAVTEX)

BANDWIDTH 10 kHz, 10 kHz & 150 kHz

IMPEDANCE 50 Ohm

POLARISATION Vertical

SUPPLY VOLTAGE 6 - 12 VDC

CURRENT CONSUMPTION, AVERAGE 10.5 mA



Mechanical specifications

COLOR White and chrome

HEIGHT Approx. 315 mm

WEIGHT Approx. 200 g

MOUNTING On 1" threaded pole (G1"-11 thread) with supplied 1" Revolving Nut

MOUNTING PLACE On mast

MOUNTING INSTRUCTION Included

MATERIALS PE, PCB, copper, PTFE and chrome plated solid brass

OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTORS UHF-female

CABLE No cable supplied

INGRESS PROTECTION IP66

SERIAL NO. On product label
