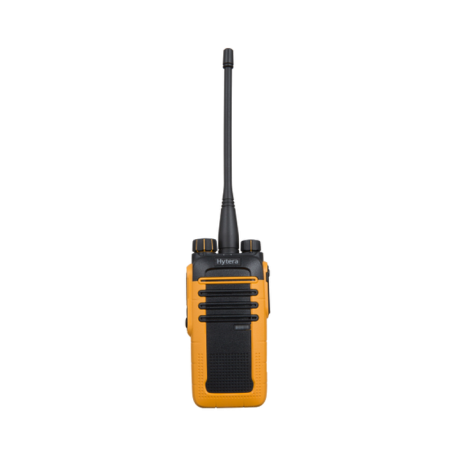

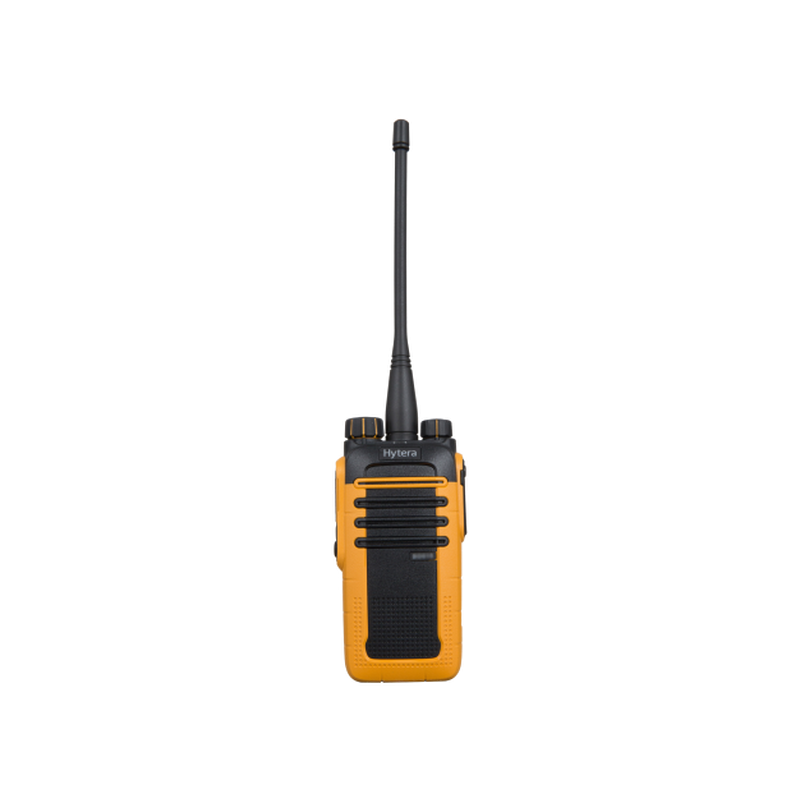

Hytera BD615 DMR/Analogue VHF Handheld Radio
235.7 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Hytera's new BD615 two-way radio inherits the excellent performance of its predecessor the TC-610 series and provides professional communication that is easy to operate effectively. The robust and reliable body can guarantee excellent product performance. The clear and loud sounding voice can cope better in multiple surroundings, these include noisy environments such as the outdoors and crowded areas.
Functions
RUGGED AND RELIABLE
The BD615 features a bold two-colour design and is tested to meet the Military Standards of 810 G, including temperature shock management and vibration handling. The BD615 is also IP66 certified for dust and waterproof and its design guarantees reliability in different environments.
CLEAR VOICE
Fitted with the latest digital encoding and correction technology, the BD615 caters for human voice to be transmitted clearer and without distortion, even over greater distances.
EXCELLENT PERFORMANCE
With a new, innovative design, the BD615 offers better performance than traditional analogue radios. With excellent reception sensitivity, it means the device can provide a stable communication with no interference.
ANALOGUE AND DIGITAL
The BD615 can support both analogue and digital modes on the same hardware. You can easily switch between dual operation modes which helps you to communicate with more devices.
Technical Specifications
General
Frequency Range
VHF: 136-174 MHz
Channel Capacity
48
Zone Capacity
3
Channel Spacing
25/12.5Khz
Operating Voltage
7.4V (rated)
Battery
1500mAh lithium battery
Battery Life (5/5/90)
Analog: 12 hours; Digital: 16 hours
Weight
240g (with standard battery and antenna fitted)
Dimensions
108x54x29mm
Environmental
Operating Temperature Range
-30℃~+60℃
Storage Temperature Range
-40℃~+85℃
IP Certification
IP66 standard
Receiver
Sensitivity (Digital)
0.22uV / BER 5%
Sensitivity (Analogue)
0.22uV (Typical) (12db SIN AD)
Hum
40dB @ 12.5kHz
Noise
45dB @ 12.5kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
<3%
Transmitter
RF Power Output
VHF High Power: 5W
VHF Low Power: 1W
FM Modulation
11K0F3E @ 12.5kHz
16K0F3E @ 25kHz
FM Hum
40dB @ 12.5kHz
FM Noise
45dB @ 25kHz
Audio Distortion
<5%
Data sheet
