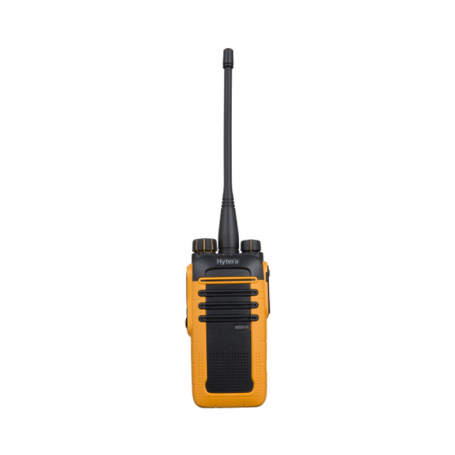

Hytera BD615 DMR/Analogue UHF Handheld Radio

Introducing the Hytera BD615, a versatile DMR/Analogue Handheld Radio designed for UHF communication in even the harshest environments. This rugged and reliable radio ensures clear communication and enhanced safety for users in various industries such as construction, manufacturing, and event management. With its long-lasting battery life, superior audio quality, and resistance to dust and water, the Hytera BD615 is built to endure the toughest working conditions. Its user-friendly interface and programmable features offer quick access to your most-needed functions, making it an essential communication tool for professionals on the go. Equip your team with the Hytera BD615 for efficient and dependable communication in any situation.
289.91 $
Tax included

235.7 $ net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

Hytera's new BD615 two-way radio inherits the excellent performance of its predecessor the TC-610 series and provides professional communication that is easy to operate effectively. The robust and reliable body can guarantee excellent product performance. The clear and loud sounding voice can cope better in multiple surroundings, these include noisy environments such as the outdoors and crowded areas.



Functions

RUGGED AND RELIABLE

The BD615 features a bold two-colour design and is tested to meet the Military Standards of 810 G, including temperature shock management and vibration handling. The BD615 is also IP66 certified for dust and waterproof and its design guarantees reliability in different environments.

CLEAR VOICE

Fitted with the latest digital encoding and correction technology, the BD615 caters for human voice to be transmitted clearer and without distortion, even over greater distances.

EXCELLENT PERFORMANCE

With a new, innovative design, the BD615 offers better performance than traditional analogue radios. With excellent reception sensitivity, it means the device can provide a stable communication with no interference.

ANALOGUE AND DIGITAL

The BD615 can support both analogue and digital modes on the same hardware. You can easily switch between dual operation modes which helps you to communicate with more devices.



Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

48

Zone Capacity

3

Channel Spacing

25/12.5Khz

Operating Voltage

7.4V (rated)

Battery

1500mAh lithium battery

Battery Life (5/5/90)

Analog: 12 hours; Digital: 16 hours

Weight

240g (with standard battery and antenna fitted)

Dimensions

108x54x29mm



Environmental

Operating Temperature Range

-30℃~+60℃

Storage Temperature Range

-40℃~+85℃

IP Certification

IP66 standard



Receiver

Sensitivity (Digital)

0.22uV / BER 5%

Sensitivity (Analogue)

0.22uV (Typical) (12db SIN AD)

Hum

40dB @ 12.5kHz

Noise

45dB @ 12.5kHz

Rated Audio Power Output

0.5W

Rated Audio Distortion

<3%



Transmitter

RF Power Output

UHF High Power: 4W

UHF Low Power: 1W

FM Modulation

11K0F3E @ 12.5kHz

16K0F3E @ 25kHz

FM Hum

40dB @ 12.5kHz

FM Noise

45dB @ 25kHz

Audio Distortion

<5%

Data sheet
