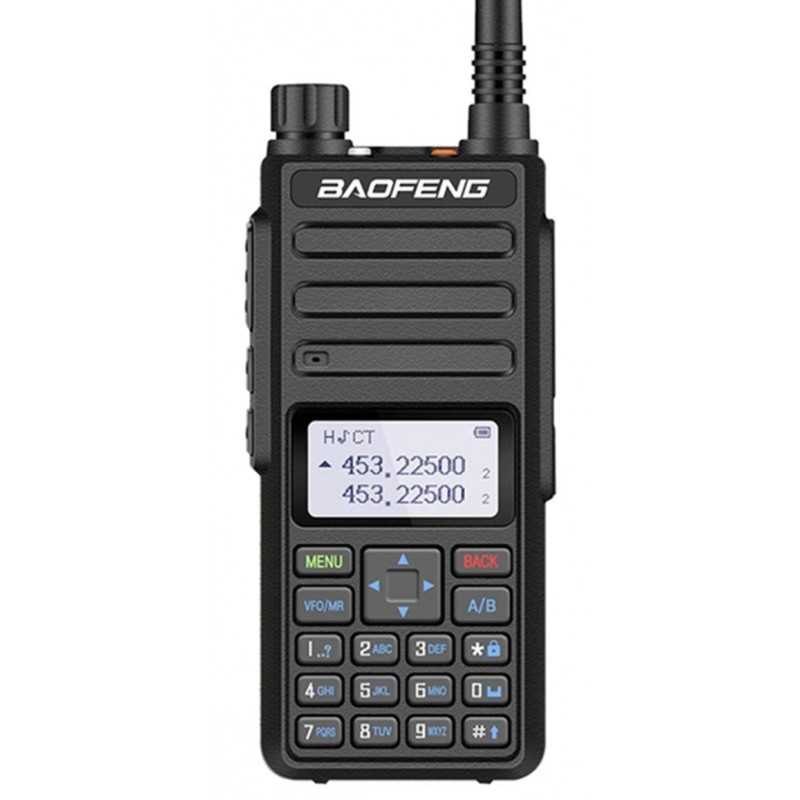

Baofeng BF-H6 UHF/VHF Long Range Two Way Walkie Talkie Radio
113.73 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
General
Frequency Range VHF:136-174MHz UHF (403-527 MHz)(Dual band)
Memory Channel 128 Group
Channel Spacing 25KHz(Wide)、12.5K(Narrow)
Operating Voltage DC7.4V
Frequency Stability ±2.5ppm
Operating Temperature -20~+60℃
Antenna Impedance 50Ω
Transmit Current H≤2.5A；M≤1.8A；L≤1.1A
Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
Stray Power ≤7.5uW
Adjacent Channel power ≤-65dB/≤-60dB
Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
QT/DQT Deviatio（wide/narrow） 0.7±0.1KHz/0.4±0.1KHz
Modulation Sensitivity 8-12mV
Demission 134*62*32mm(no including the antenna)
Weight About 300g(include in battery and antenna)
Receiver
Receiver Sensitivity ≤0.25uV(12dB SINAD）
Audio Power 1W@10%
Audio Distortion <10%
Signal-to-Noise ≥45dB
Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB
Intermodulation(wide/narrow ) ≥-65dB/≥-60dB
Stray Suppression ≥-65dB
Receive Current ≤380mA
Package Include
1x Baofeng BF-H6 10W Dual Band Walkie Talkie
1x 2200mAh Li-ion Battery Pack
1x Dual Band Antenna
1x Hand Strap
1x Belt Clip
1x Earpiece
1x User Manual
1x Desktop Charger with EU Plug
