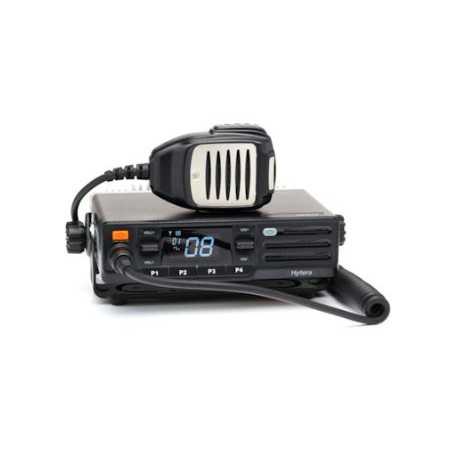

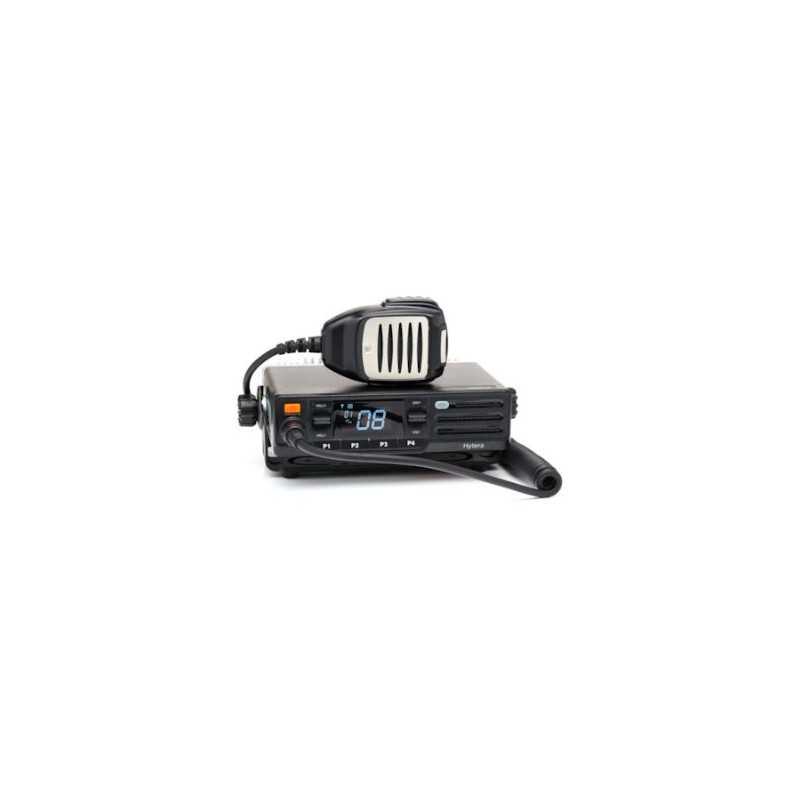

Hytera MD615 BT Commercial Digital Mobile Radio UHF

Functions

BLUETOOTH AUDIO (OPTIONAL)

Wireless connectivity to audio devices to improve user experience.

DUAL MODE

Operating in Analogue and Digital mode to aid your migration from Analogue to Digital two-way radio technology.

GPS (OPTIONAL ACCESSORY)

Global Positioning System, enabling location based services to improve safety and control.

ROAMING

This feature allows the radio to switch between sites, ensuring seamless communication.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, communication slots can be shared to improve capacity usage with transmissions either direct to devices or to repeater.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

DIGITAL ENCRYPTION

Ensuring your radio transmissions are secure with end-to-end encryption.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

48 analogue, 48 digital (3 zones with 16 channels per zone)

Digital Protocol

ETSI-TS102 361-1,2 & 3

Dimensions

164 x 43 x 150 (mm)

Weight

1.1Kg

Display

2 digit LED

Programmable Buttons

5

Keypad

NO

Environmental Specifications

Operating Temperature

30°C to +60°C

Storage Temperature

-40°C to +85°C

US Military Standard

MIL-STD-810 G

Dustproof & Waterproof

IP54

Features

RRS

YES

GPS

Separate GPS adaptor and antenna

Option Board

NO

Intrinsically Safe Option

NO

Bluetooth Audio

YES (Factory Fit Option)

Data Services via Bluetooth

NO

Stun / Unstun

YES

Remote Monitor

YES

Priority Interrupt

YES

IP Site Connect

YES

Roaming

YES

Telemetry

NO

5 Tone Signalling

NO

2 Tone Signalling

NO

VOX

NO

Priority Scan

YES

GPS SMS

NO

Vibration

NO

Emergency Mode

YES

Lone Worker

NO

Mandown

NO

Digital Encryption

Basic encryption as standard (10, 32 & 64 character keys).

Pseudo Trunking in DMO and RMO

YES (Hytera patented technology)

Voice Interrupt

YES (TX Interrupt for voice call, emergency call, remote dekey, text message.)

No of Contacts (Conventional)

Digital 64 Analogue 2-Tone NA Analogue HDC1200 N/A Analogue 5-Tone N/A

Text Messaging

64 characters (pre-defined only)

Quick Text Messages

Up to 10 pre-programmed via CPS

MPT1327 / 1343 Trunking

NO

Tier 3 Trunking

NO

XPT

NO

Mixed Mode Operation

YES

Full Duplex Calls

NO

Single Frequency Repeater

NO
