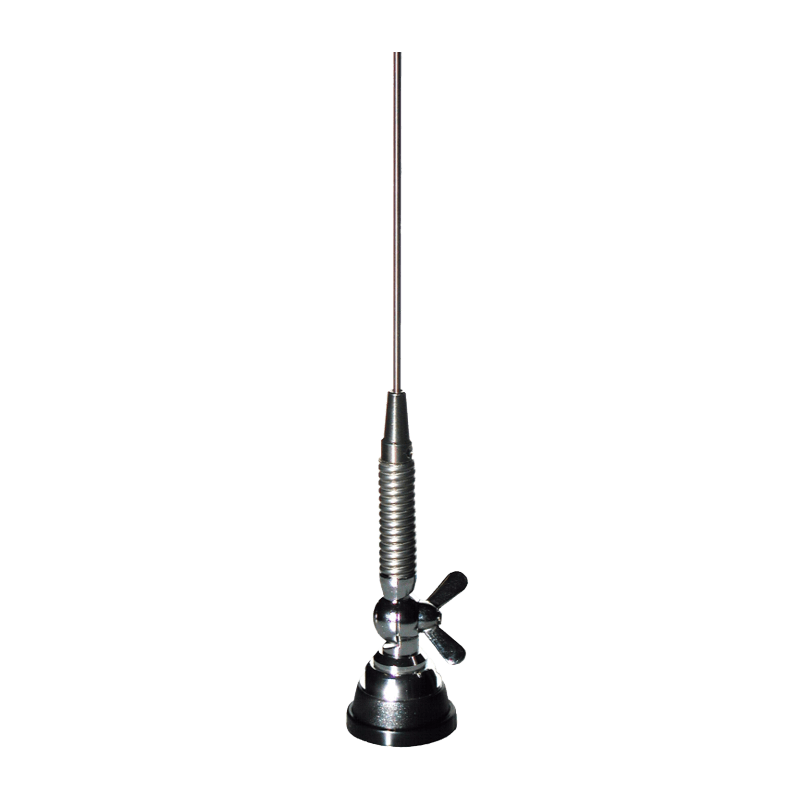

Sirio MGA 55-550 VHF/UHF Antenna
100 $ net price (non-EU countries)
100% secure payments
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Product Number:
P/N: 2205905.32 MGA 55-550 SL Included: Hole mount: SL, Wing Bolt
P/N: 2205905.28 MGA 55-550 S Included: Hole mount: S, Screw Bolt
Electrical Data:
Type: 1/4 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:
MGA 55-550 SL: 55 … 550 MHz Tunable
MGA 55-550 S: 55 … 300 MHz Tunable
Systems: 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, FM, ISM-169MHz, VHF-260MHz
Gain: 0 dB ref. to a λ/4 whip
Max Power: 100 W (CW)
Cable lenght / type: 5 m (16.4 ft) / RG58
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Nylon
Height (approx):
MGA 55-550 SL: 1400 mm / 4.59 ft
MGA 55-550 S: 1400 mm / 4.59 ft
Weight (approx): 420 gr / 0.93 lb
Mounting type: Thru-Hole
Suitable Accessories:
Hole mount: N Chrome (P/N:2500102.01)
Magnetic Mount: PM-125 S (P/N:2502602.01)
Data sheet
