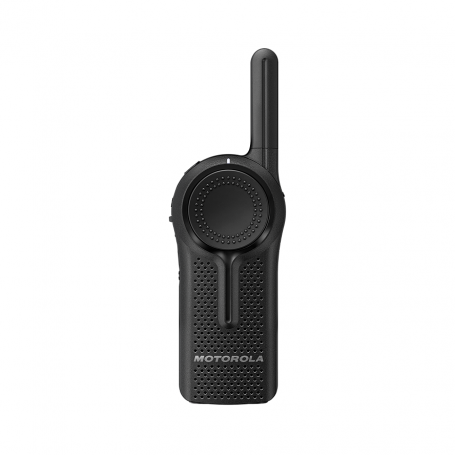

Motorola CLR446 Unlicensed Business Two-Way Radio

The CLR Series is your essential communication tool built to last all day, every day.

Features

• IP52 and Military Standard 810H rated
• Easily located oversized PTT button
• Up to 18 hours battery life
• A large selection of accessories for the CLR
• Escalate call for high-risk situations
• Voice-guided navigation
• 16 channels and 219 privacy codes

Attractive, comfortable, and powerful design

The palm-sized CLR has a compact design to discreetly and comfortably carry with you through extended shifts. The CLR is IP52 and Military Standard 810H rated to survive dust, water, vibration, shock and temperature extremes.

16 Channels & 219 privacy codes

Multiple channels give you the flexibility to keep different teams on separate channels and keep your staff focused on their roles. A privacy code can be added to the device to protect your communications from neighbouring groups.

Voice Guided Navigation

Help your staff to easily learn the system with voice-guided menus. The CLR allows you to use pre-defined voice prompts for your channels or add custom voice prompts to help your staff identify the channel they should be using.

Multi-Colour LED

The LED is centrally located above the oversized PTT button. It features 8 colours to indicate the active channel, radio transmit & receive, and battery status. This easy to understand visual feedback helps your staff spend less time focusing on the radio and more time focusing on the guest and customers.

GENERAL SPECIFICATIONS

Frequency Band PMR446, 446.0-446.2 MHz

Range Unit to Unit: 14,000 m2 (150,000 ft2) / 10 floors

Channel Capacity 16

Repeater Capability No

Channel Bandwidth 12.5 kHz

PL Codes (Privacy Codes) 39 std + 6 custom

DPL Codes (Privacy Codes) 84 std + 84 inverted + 6 custom

Average Battery Life @ 5/5/90 with Standard Li-Ion Battery BT90 1800 mAh 18 hours

Radio Dimensions (H x W x D): 107 x 51 x 23 mm

Weight: Radio w/Standard Li-Ion Battery BT90 126g

TRANSMITTER

RF Output High: 0.5 Watts

Frequency Stability +/- 1.5kHz

Spurs & Harmonics @ < 1GHz: < - 42 dBm

FM Hum & Noise @ 12.5 kHz without companding: - 40 dB

Modulation Limiting @ 12.5 kHz: ± 2.5 kHz

Adjacent Channel Power @ 12.5 kHz: 60 dBc

Radiated Spurious Emissions (<1 GHz) < - 36 dBm

Radiated Spurious Emissions (>1 GHz) < - 30 dBm

Audio Distortion < 2%

RECEIVER

Sensitivity (20 dB SINAD) -118 dBm (0.282 uV)

Adjacent Channel Selectivity @ 12.5 kHz: > 60 dB

Intermodulation Rejection > 63 dB

Spurious Response Rejection >70 dB

Audio Distortion < 5%

CSQ Hum & Noise @ 12.5kHz: - 50 dB

PL Hum & Noise @ 12.5kHz: - 50 dB

Radiated Spurious Emissions (< 1GHz) < - 63 dBm

Radiated Spurious Emissions (> 1GHz) < - 53 dBm

Audio Output @ <5% Distortion 500 mW @ 8 ohms

ENVIRONMENTAL SPECS

Operating Temperature - 30°C to + 60°C6 (Radio)

Shock & Vibration Polycarbonate Housing Passes EIA 603

Humidity Satisfied EIA 603

Dust & Water Intrusion IP52
