Hytera X1p UHF Handheld Radio with GPS and Man Down

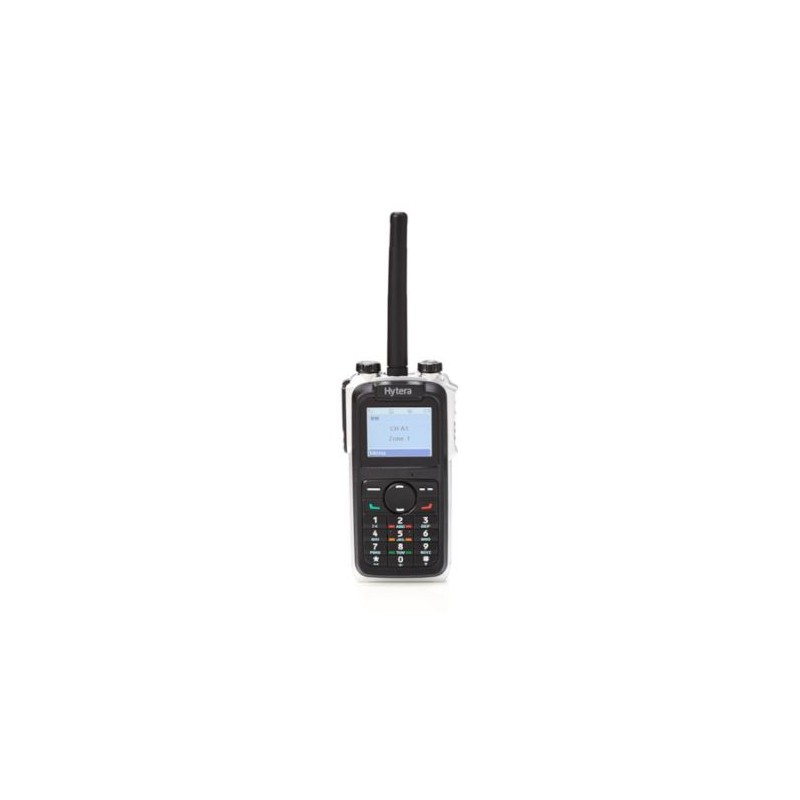

Slim and lightweight, the Hytera X1p handheld digital two-way radio offers the perfect combination of ruggedness, versatility and refined design with LCD screen and keypad to enable advanced covert communications.

Functions

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

MAN DOWN

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

GPS

Enabling location based services to improve safety and control.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

BLUETOOTH AUDIO

Wireless connectivity to optional audio devices including covert earpieces to improve user experience.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

1024 (64 zones with 256 channels per zone)

Digital Protocol

ETSI-TS102 361-1,2 & 3

Battery Life (5-5-90 Duty Cycle)

1400mAh, Analogue 10.2h, Digital 12.7h

Dimensions(W×H×D)

119.5 X 57 X 21mm

Weight

Approx 240g (optional 1100mAh Li-ion)

Display

160 x 128 pixels, 65536 colors 1.8 inch, 4 rows

Keypad

Full Keypad

Programmable Buttons

4

Environmental Specifications

Dust & Water Intrusion

IP67 Standard

Features

RRS

YES

Telemetry

YES

Option Board

YES

Intrinsically Safe Option

NO

Radio Check

YES

Alert Call

YES

Stun / Unstun

YES

Remote Monitor

YES

Priority Interrupt

YES

IP Site Connect

YES

Roaming

YES

Work Order

YES

5 Tone Signalling

YES

2 Tone Signalling

YES

HDC1200 Signalling

YES

DTMF (Phone Patch)

YES

Intelligent audio

YES

VOX

YES

Priority Scan

YES

GPS SMS

YES

Vibration

YES

Scrambler (Analogue)

YES

Digital Encryption

Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as Standard (latest firmware required)Advanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable licence file.

Multiple Key Encryption Decode

YES

Multilanguage Menu

YES

Power on & off user logo programming

YES

Voice Interrupt

Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.)

No of Contacts (Conventional)

Digital 1024 Analogue 2-Tone 32 Analogue HDC1200 200 Analogue 5-Tone 255

No of Contacts (Trunking)

Private Contacts 512 Group Contacts 1024

Text Messaging

256 characters

Quick Text Messages

Up to 25 pre-programmed via CPS

MPT1327 / 1343 Trunking

Yes via free of charge licence key

Tier 3 Trunking

Available via chargeable licence file

Over-the-Air Programming

Yes via smartdispatch 4.0

Analogue Only Version

Not Available

Full Duplex Calls

NO

Micro SD Card

NO

Voice Recording

NO

Data Services via Bluetooth

NO

Single Frequency Repeater

NO

Auto Power Select

Yes (V8.0 firmware or later)
