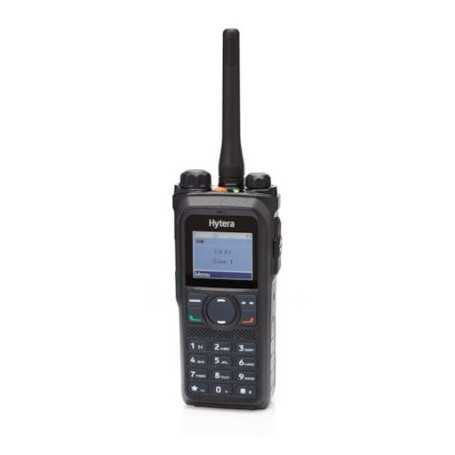

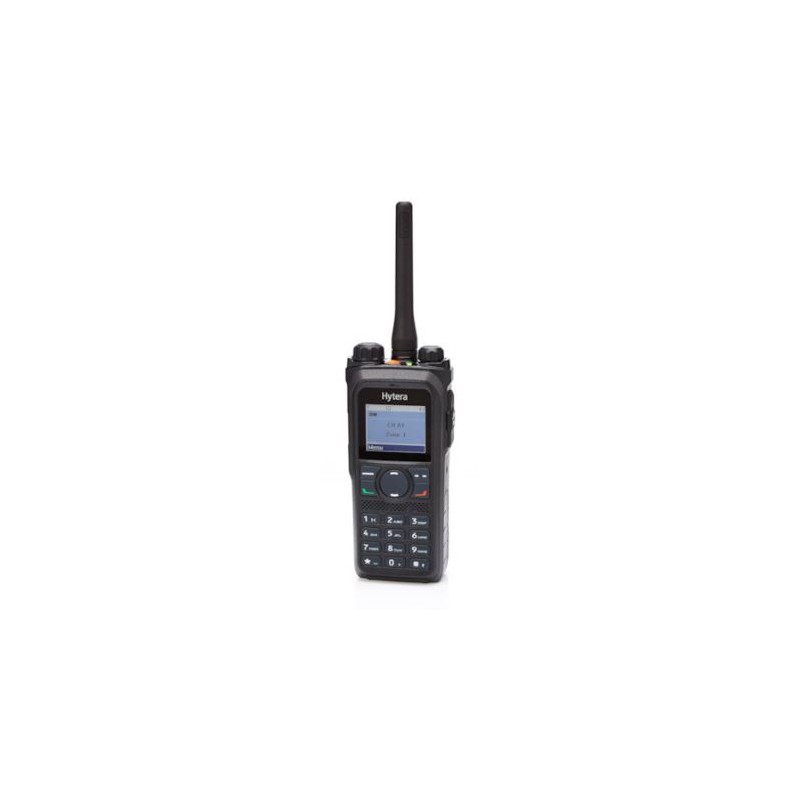

Hytera PD985 MD Digital Two-Way Radio UHF

Professional and versatile, the Hytera PD985 is the ultimate handheld digital two-way radio. Offering a range of advanced features and an exceptional audio experience, the PD985 can be utilised in all manner of working environments, playing an integral role in your communication network.

Request the PD985 GPS MD variant for GPS and Man Down.

Functions

BLUETOOTH AUDIO

Bluetooth 4.0 for wireless connectivity to audio devices to improve user experience.

PSEUDO TRUNKING

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

FULL DUPLEX CALLS

Have a conversation on a call rather than a classic one-way transmission (DMR Tier III mode only)

VOICE RECORDING

Record your transmission and call data for future analysis. Requires micro SD card and separate application for playback, chargeable licence.

SINGLE FREQUENCY REPEATER

Utilise your PD985 radio as a repeater to improve coverage across your site (chargeable licence)

MAN DOWN

Optional (PD985G only), the man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

LONE WORKER

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

GPS

Optional (PD985G only), enabling location based services to improve safety and control.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

1024 (64 zones with 256 channels per zone)

Digital Protocol

ETSI-TS102 361-1,2 & 3

Battery Life (5-5-90 Duty Cycle)

2000mAh, Analogue 14.5h, Digital 19h

Dimensions(W×H×D)

131 X 54.5 X 36(mm)

Weight

335g with standard battery and antenna

Display

160 x 128 pixels, 65536 colours 1.8 inch, 4 rows

Keypad

Full Keypad

Programmable Buttons

5

Receiver

Sensitivity Analog

0.28μV (12dB SIN AD) , 0.22μV (Typical) (12dB SIN AD)

Sensitivity Digital

0.22μV/BER5%

Selectivity TIA-603 ETSI

60dB @ 12.5kHz / 70dB @ 20/25kHz (TIA-603) 60dB @ 12.5kHz / 70dB @ 20/25kHz (ETSI)

Spurious Response Rejection TIA-603 ETSI

70dB @ 12.5/20/25kHz (TIA-603) 70dB @ 12.5/20/25kHz (ETSI)

Hum and Noise

40dB @ 12.5kHz; 43dB @ 20kHz; 45dB @ 25kHz

Rated Audio Power Output

0.5W

Rated Audio Distortion

≤3%

Audio Response

+1 ~ -3dB

Conducted Spurious Emission

< -57dBm

Transmitter

RF Power Output

UHFx: 1W/4W; UHF5: 1W/3W (806-870MHz) UHF5: 1W/2.5W (896-941MHz)

FM Modulation

11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz

4FSK Digital Modulation

12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW

Modulation Limiting

±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz; ±5.0kHz @ 25kHz

FM Hum & Noise

40dB @ 12.5kHz 43dB @ 20kHz 45dB @ 25kHz

Adjacent Channel Power

60dB @ 12.5kHz; 70dB @ 20/25kHz

Audio Response

+1 ~ -3dB

Audio Distortion

≤3%

Digital Vocoder Type

AMBE+2™ SELP

Digital Protocol

ETSI-TS102 361-1,-2,-3

Environmental Specifications

Dust & Water Intrusion

IP68 Standard

GPS (Accuracy specs are for long-term tracking) (5 satellites visible at nominal -130dBm)

TTFF (Time To First Fix) Cold Start

<1 minute

TTFF (Time To First Fix) Hot Start

<10 seconds

Horizontal Accuracy

<5m (50% probable) <10m (95% probable)
