Hytera PD665 Handheld Digital Two-Way UHF Radio

Hytera PD665 Handheld Digital Two-Way UHF Radio

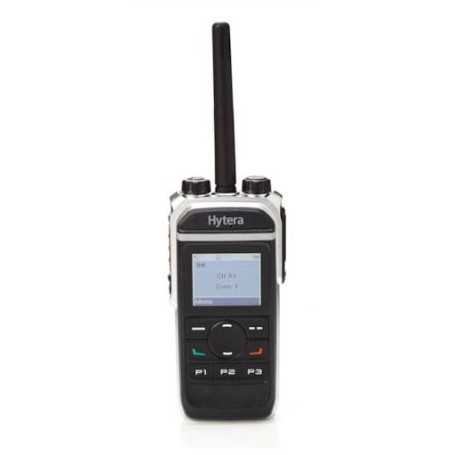

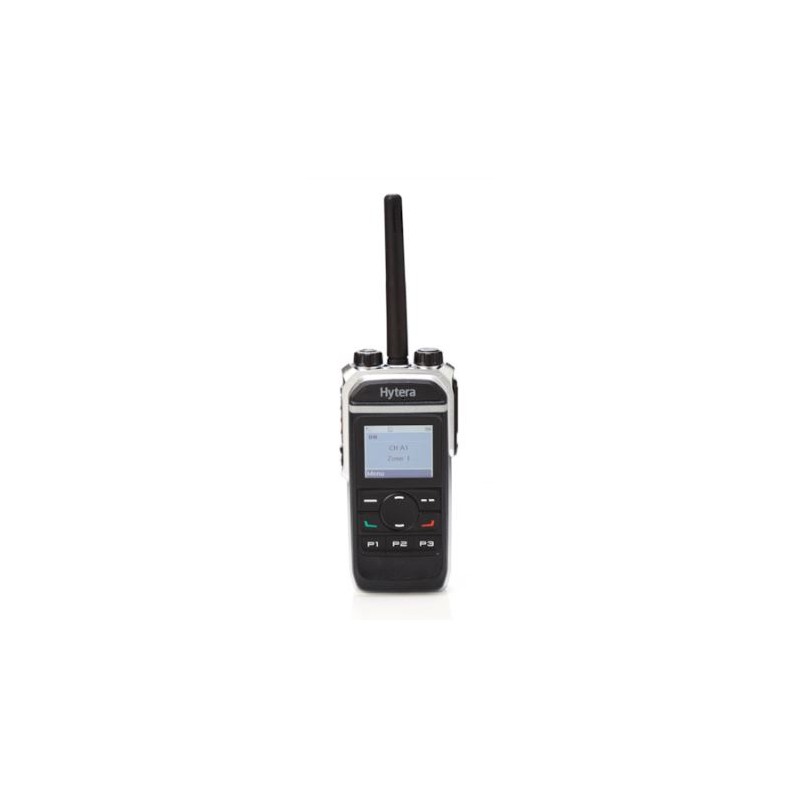

The Hytera PD665 Handheld Digital Two-Way UHF Radio offers exceptional voice clarity and advanced encryption in a sleek, compact design. With its built-in LCD screen and programmable keys, this radio is just 27mm thick and weighs only 310g, making it perfect for long shifts and demanding environments.

For enhanced features, consider the PD665 GPS MD variant that includes GPS and Man Down functionality.

Key Features:

• Pseudo Trunking: Utilizes Hytera's patented technology to maximize capacity by dynamically sharing slots for direct handset or repeater transmissions.
• XPT (Extended Pseudo Trunking): Efficiently uses limited spectrum resources by dynamically assigning channel resources without a dedicated control channel.
• Emergency Mode: Prioritize alarms to base stations or other radios, identify the alarm issuer, and receive emergency notifications.
• Lone Worker: A timer measures inactivity, issuing a warning and triggering an alarm if no response is detected.
• Bluetooth Audio: Optional external adapter accessory for wireless connectivity to enhance user experience.
• GPS: Available on PD665G, enabling location-based services for improved safety and control.
• Man Down: Optional on PD665G, detects if the radio is tilted, indicating potential user distress, and triggers an alarm after a warning.

Technical Specifications:

• Frequency Range: UHF (403-527 MHz)
• Channel Capacity: 1024 (64 zones with 256 channels per zone)
• Digital Protocol: ETSI-TS102 361-1,2 & 3
• Battery Life: 1500mAh, Analogue 11h, Digital 16h
• Dimensions (W×H×D): 122 x 54 x 27mm
• Weight: Approx 310g (1500mAh Li-ion)
• Display: 160 x 128 pixels, 65536 colours, 1.8 inch, 4 rows
• Keypad: Partial Keypad
• Programmable Buttons: 6

Environmental Specifications:

• Dust & Water Intrusion: IP67 Standard

Additional Features:

• RRS: Yes
• Telemetry: Yes
• Radio Check: Yes
• Alert Call: Yes
• Stun / Unstun: Yes
• Remote Monitor: Yes
• Priority Interrupt: Yes
• IP Site Connect: Yes
• Roaming: Yes
• Work Order: Yes
• 5 Tone Signalling: Yes
• 2 Tone Signalling: Yes
• HDC1200 Signalling: Yes
• DTMF (Phone Patch): Yes (latest firmware required)
• Intelligent Audio: Yes
• VOX: Yes
• Priority Scan: Yes
• Scrambler (Analogue): Yes
• Digital Encryption: Basic and enhanced encryption available, with advanced options via chargeable licence.
• Multiple Key Encryption Decode: Yes
• Text Messaging: 256 characters (Quick Text only)
• Quick Text Messages: Up to 25 pre-programmed via CPS
• MPT1327 / 1343 Trunking: Yes via free of charge licence file (latest firmware required)
• Tier 3 Trunking: Available via chargeable licence file (latest firmware required)
• Over-the-Air Programming: Yes via smartdispatch 4.0
• Auto Power Select: Yes (V8.0 firmware or later)

Whether you need reliable communication in rugged conditions or advanced features for safety and coordination, the Hytera PD665 is a versatile and dependable choice.
