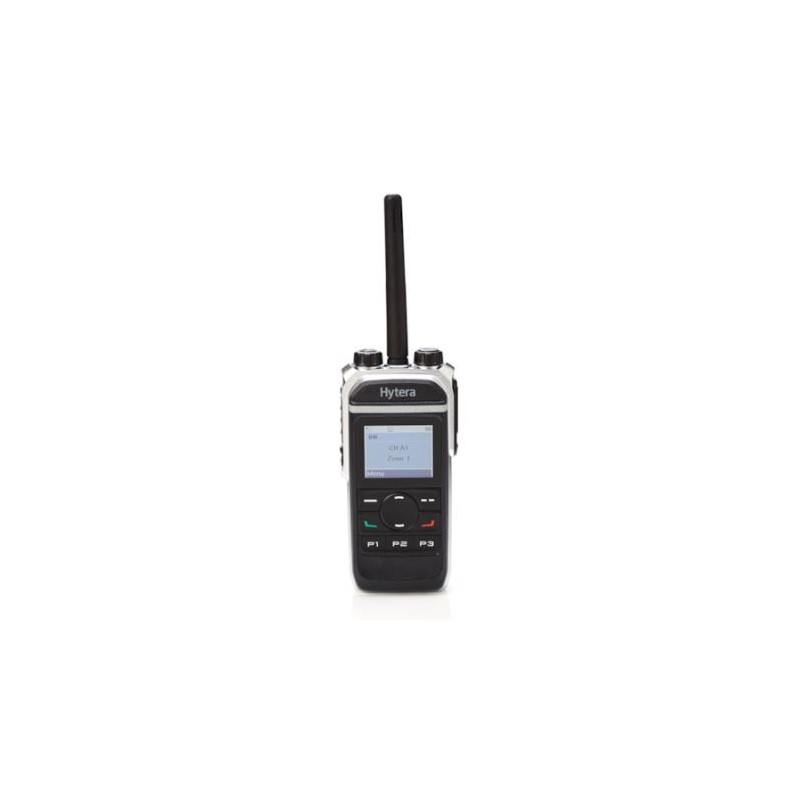

Hytera PD665 GPS MD Handheld Digital Two-Way UHF Radio

Delivering superior voice clarity and enhanced encryption, the Hytera PD665 handheld digital two-way radio is a compact, high quality device with LCD screen and programmable keys. At just 27mm thick and 310g, this radio is a popular choice and ideal for long shifts.

Functions

PSEUDO TRUNKING IN DMO AND RMO

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

LONE WORKER

The Lone Worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

BLUETOOTH AUDIO

Optional (external adapter accessory), wireless connectivity to audio devices to improve user experience.

GPS

Optional (PD665G only), enabling location based services to improve safety and control.

MAN DOWN

Optional (PD665G only), this feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

1024 (64 zones with 256 channels per zone)

Digital Protocol

ETSI-TS102 361-1,2 & 3

Battery Life (5-5-90 Duty Cycle)

1500mAh, Analogue 11h, Digital 16h

Dimensions(W×H×D)

122 x 54 x 27mm

Weight

Approx 310g (1500mAh Li-ion)

Display

160 x 128 pixels, 65536 colours 1.8 inch, 4 rows

Keypad

Partial Keypad

Programmable Buttons

6

Environmental Specifications

Dust & Water Intrusion

IP67 Standard

Features

RRS

YES

Telemetry

YES

Option Board

NO

Intrinsically Safe Option

NO

Radio Check

YES

Alert Call

YES

Stun / Unstun

YES

Remote Monitor

YES

Priority Interrupt

YES

IP Site Connect

YES

Roaming

YES

Work Order

YES

5 Tone Signalling

YES

2 Tone Signalling

YES

HDC1200 Signalling

YES

DTMF (Phone Patch)

YES (latest firmware required)

Intelligent audio

YES

VOX

YES

Priority Scan

YES

GPS SMS

PD665G only

GPS SMS

NO

Scrambler (Analogue)

YES

Digital Encryption

Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as Standard (latest firmware required)Advanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable licence file.

Multiple Key Encryption Decode

YES

Multilanguage Menu

NO

Power on & off user logo programming

YES

Voice Interrupt

Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.)

No of Contacts (Conventional)

Digital 1024 Analogue 2-Tone 32 Analogue HDC1200 200 Analogue 5-Tone 255

No of Contacts (Trunking)

Private Contacts 512 Group Contacts 1024

Text Messaging

256 characters (via Quick Text only)

Quick Text Messages

Up to 25 pre-programmed via CPS

MPT1327 / 1343 Trunking

Yes via free of charge licence file (latest firmware required)

Tier 3 Trunking

Available via chargeable licence file (latest firmware required)

Over-the-Air Programming

Yes via smartdispatch 4.0

Over-the-Air Programming

Not Available

Full Duplex Calls

NO

Micro SD Card

NO

Voice Recording

NO

Data Services via Bluetooth

NA

Single Frequency Repeater

NO

Auto Power Select

Yes (V8.0 firmware or later)
