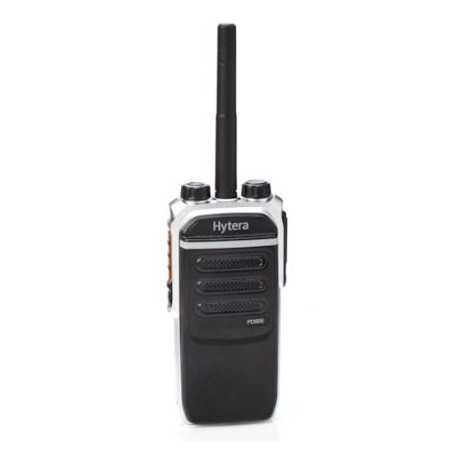

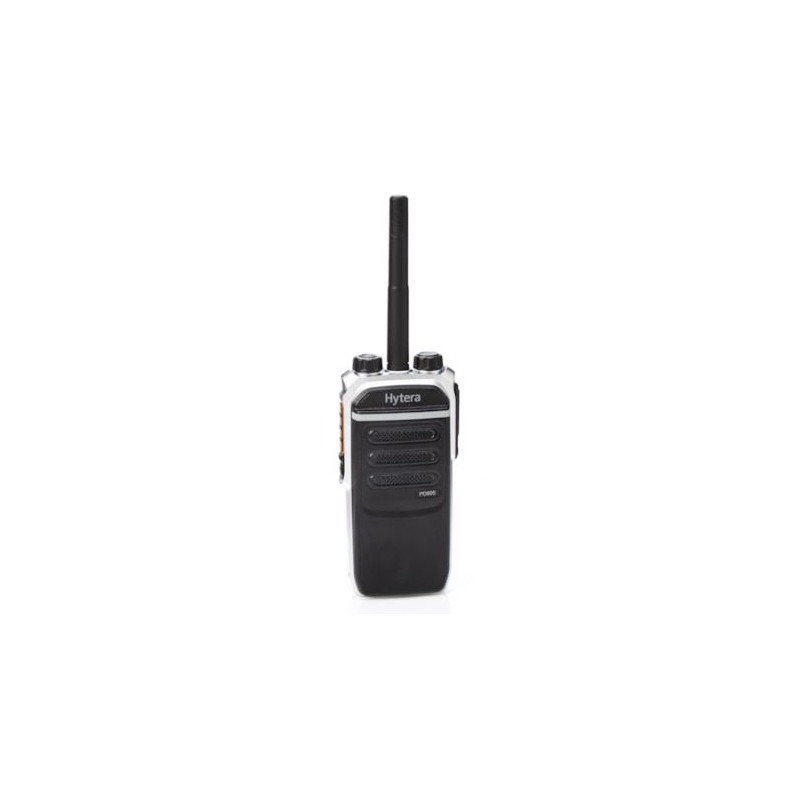

Hytera PD605 GPS MD Handheld Digital Two-Way UHF Radio with Enhanced Features

Experience superior voice clarity and advanced encryption with the Hytera PD605 GPS MD Handheld Digital Two-Way UHF Radio. This compact and high-quality device is designed for ease of use during long shifts, weighing just 290g and measuring only 27mm thick.

Key Features

The Hytera PD605 is equipped with numerous features to enhance user experience and safety:

• Emergency Mode: Instantly raise an alarm with top priority to base stations or other radios. Identify the ID of the person issuing the alarm and receive emergency notifications.
• Lone Worker: A timer measures inactivity and triggers an alarm if no response is received after a warning.
• Pseudo Trunking: Hytera's patented technology maximizes capacity usage by sharing slots for direct handset or repeater transmissions.
• XPT (Extended Pseudo Trunking): Efficiently manage spectrum resources by dynamically assigning channel resources without a dedicated control channel.
• GPS: (Optional for PD605G) Enable location-based services for improved safety and operational control.
• Bluetooth Audio: (Optional with external adapter) Enjoy wireless connectivity to audio devices.
• Priority Interrupt: Send priority transmissions to interrupt ongoing calls for critical messages.
• Man Down: (Optional for PD605G) Detects if the radio is tilted beyond a certain angle, indicating a potential fall or injury, and triggers an alarm.

Technical Specifications

General:

• Frequency Range: UHF (403-527 MHz)
• Channel Capacity: 256 (16 zones with 16 channels per zone)
• Digital Protocol: ETSI-TS102 361-1,2 & 3
• Battery Life (5-5-90 Duty Cycle): 1500mAh, Analogue 11h, Digital 16h
• Dimensions: 119 x 54 x 27mm
• Weight: Approx 290g (1500mAh Li-ion)
• Display: No
• Keypad: No
• Programmable Buttons: 1

Environmental Specifications:

• Dust & Water Intrusion: IP67 Standard

More Features:

• RRS: Yes
• Telemetry: Yes
• Option Board: No
• Intrinsically Safe Option: No
• Radio Check: Yes (decode only)
• Alert Call: Yes (decode only)
• Stun / Unstun: Yes (decode only)
• Remote Monitor: Yes (decode only)
• IP Site Connect: Yes
• Roaming: Yes
• 5 Tone Signalling: Yes
• 2 Tone Signalling: Yes
• HDC1200 Signalling: Yes
• Intelligent Audio: Yes
• VOX: Yes
• Priority Scan: Yes
• GPS SMS: PD605G only
• Scrambler (Analogue): Yes
• Digital Encryption: Basic and enhanced encryption available with up to 256-bit AES with a license
• Multiple Key Encryption Decode: Yes
• Voice Interrupt: Yes (TX Interrupt for voice call, emergency call, remote dekey, text message)
• No of Contacts (Conventional): Digital 1024, Analogue 2-Tone 32
• No of Contacts (Trunking): Private Contacts 512, Group Contacts 1024
• Text Messaging: 256 characters (via Quick Text only)
• Quick Text Messages: Up to 25 pre-programmed via CPS
• MPT1327 / 1343 Trunking: Available via free of charge license file
• Tier 3 Trunking: Available via chargeable license file
• Over-the-Air Programming: Yes via SmartDispatch 4.0
• Auto Power Select: Yes (V8.0 firmware or later)
