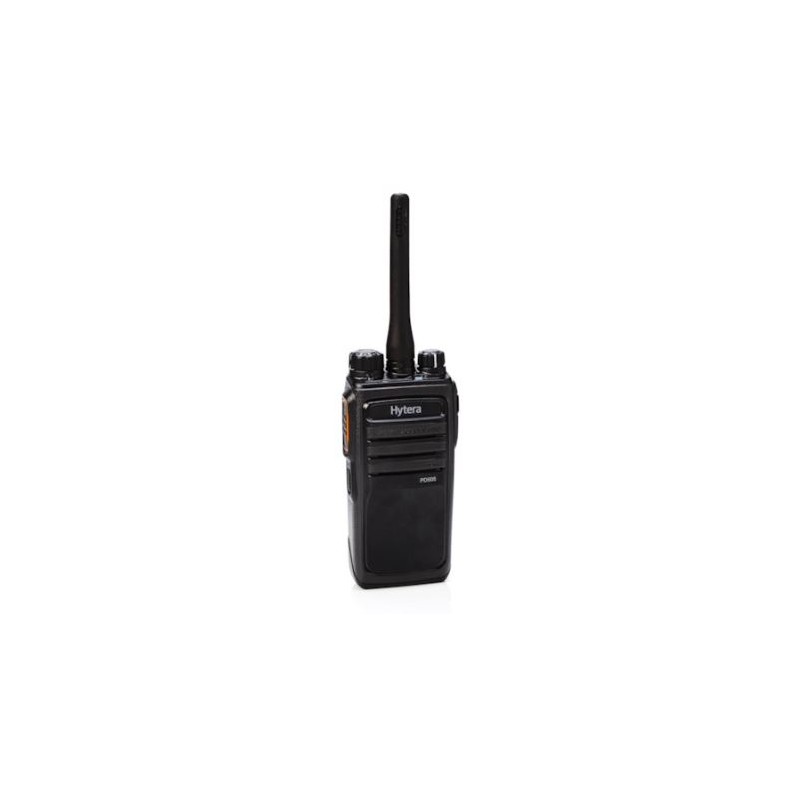

Hytera PD505 Handheld Digital Two-Way UHF Radio
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Packed with functionality, the Hytera PD505 handheld digital two-way radio impresses with its safety features and flexibility to support for both digital and analogue communications, ideal for manufacturing, events and hospitality environments.
Functions
ROAMING
This feature allows the radio to switch between sites on Multi-site Conventional and XPT systems, ensuring seamless communication.
RADIO CHECK
Allows other radio users to check if a radio is available.
PSEUDO TRUNKING IN DMO AND RMO
Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.
RRS
Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.
STUN / UNSTUN
You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.
EMERGENCY MODE
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.
QUICK TEXT MESSAGES
Pre-programmed via the Customer Programming Software and stored in the quick text menu ready to send to contacts.
XPT
Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.
Technical Specifications
General
Frequency Range
UHF (403-527 MHz)
Channel Capacity
256 (16 zones with 16 channels per zone)
Digital Protocol
ETSI-TS102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle)
1500mAh , Analogue 11h, Digital 16h
Dimensions(W×H×D)
115 x 54 x 27mm
Weight
Approx 260g (1500mAh Li-ion)
Display
NO
Keypad
NO
Programmable Buttons
1
Environmental Specifications
Dust & Water Intrusion
IP54 Standard
Features
RRS
YES (V7.06.01.006 firmware)
GPS
NO
Telemetry
NO
Option Board
NO
Intrinsically Safe Option
NO
Bluetooth Audio
NO
Alert Call
YES (decode only)
Remote Monitor
YES (decode only)
Stun/Unstun
YES (decode only)
Priority Interrupt
YES
IP Site Connect
YES
5 Tone Signalling
YES
2 Tone Signalling
YES
HDC1200 Signalling
YES
DTMF (Phone Patch)
NO
Intelligent audio
YES
VOX
YES
Priority Scan
YES
GPS SMS
NO
Emergency Mode
YES (V7.06.01.06 firmware)
Vibration
NO
Lone Worker
YES (V7.06.01.06 firmware)
Mandown
NO
Scrambler (Analogue)
YES
Voice Interrupt
Yes(TX Interrupt for voice call, emergency call, remote dekey, text message.)
Digital Encryption
Basic encryption as standard (10, 32 & 64 character keys)Advanced encryption NO
Multiple Key Encryption Decode
YES
Multilanguage Menu
NO
Power on & off user logo programming
NO
Voice Interrupt
Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.)
No of Contacts (Conventional)
Digital 1024 Analogue 2-Tone 32 Analogue HDC1200 N/A Analogue 5-Tone N/A
Text Messaging
256 characters (via Quick Text only)
MPT1327 / 1343 Trunking
NO
Tier 3 Trunking
NO
Over-the-Air Programming
NO
Analogue Only Version
Not Available
Wireless Charging
NO
RFID Reader
NO
Mixed Mode Operation
NO
Data Services via Bluetooth
N/A
Data sheet
