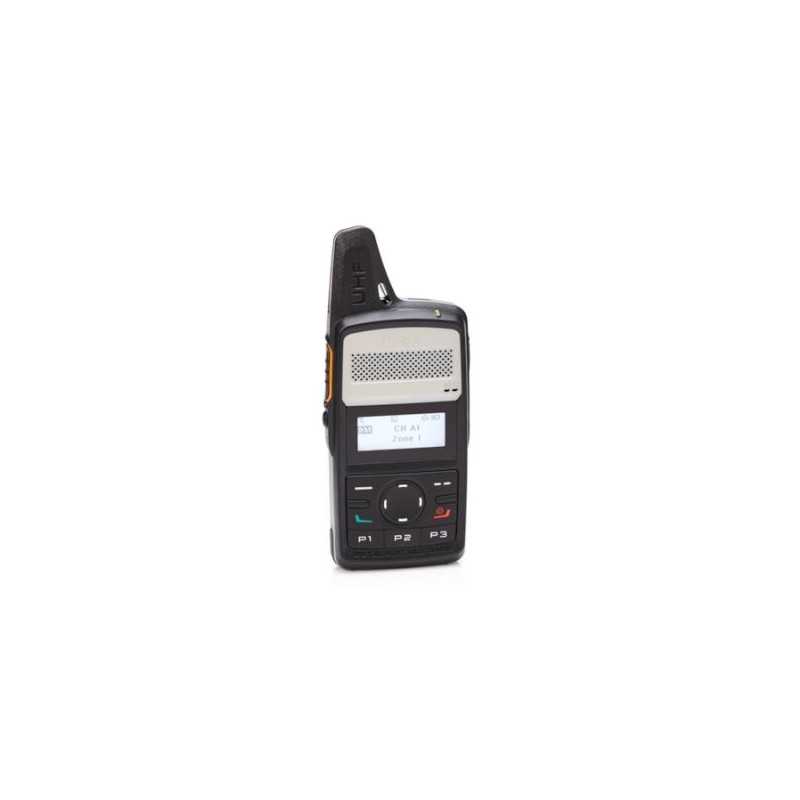

Hytera PD365 Handheld Digital Two-Way UHF Radio

Pocket-sized, the Hytera PD365 handheld digital two-way radio delivers a range of sought after features in a small form factor, ideal for discreet use in retail, hospitality or education environments.

Functions

WIRELESS CHARGING

With the optional wireless charging kit and battery case, place the PD365 in the wireless charger holder and it will charge without the need for cables to the radio.

MIXED MODE OPERATION

This feature allows the radio to automatically detect and switch between analogue and digital modes based on the signal received.

RADIO CHECK

Allows other radio users to check if a radio is available.

STUN / UNSTUN

You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.

RRS

Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.

ROAMING

This feature allows the radio to switch between sites on multi-site conventional systems, ensuring seamless communication.

EMERGENCY MODE

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

QUICK TEXT MESSAGES

Pre-programmed via the Customer Programming Software and stored in the quick text menu ready to send to contacts.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

256 (16 zones with 16 channels per zone)

Digital Protocol

ETSI-TS102 361-1,2 & 3

Battery Life (5-5-90 Duty Cycle)

2000mAh, Analogue 10h, Digital 12h

Dimensions(W×H×D)

106 x 54 x 23mm

Weight

Approx 160g

Display

3 line monochrome

Keypad

Partial Keypad

Programmable Buttons

4

Environmental Specifications

Dust & Water Intrusion

IP54 Standard

Features

GPS

NO

Telemetry

NO

Option Board

NO

Intrinsically Safe Option

NO

Bluetooth Audio

NO

Alert Call

YES (decode only) (requires latest firmware)

Stun/Unstun

YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)

Remote Monitor

YES (decode only) (requires latest hardware, firmware & chargeable licence key)

Priority Interrupt

YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)

IP Site Connect

NO

Work Order

YES (large MCU only, requires firmware upgrade)

5 Tone Signalling

NO

2 Tone Signalling

NO

HDC1200 Signalling

NO

DTMF (Phone Patch)

NO

Intelligent audio

YES

VOX

YES

Priority Scan

YES

GPS SMS

NO

Vibration

NO

Lone Worker

NO

Mandown

NO

Scrambler (Analogue)

YES (requires latest firmware)

Roaming

YES (large MCU only, firmware upgrade & licence key)

Digital Encryption

Basic Encryption YES (requires latest hardware, firmware & chargeable licence key)Advanced encryption NO

Multiple Key Encryption Decode

NO

Multilanguage Menu

YES

Pesudo Trunking in DMO and RMO

YES (requires latest firmware & chargeable licence key)

Power on & off user logo programming

NO

Voice Interrupt

YES (large MCU only) (TX interrupt for Voice Call, Emergency Call, All Call, text message)

No of Contacts (Conventional)

Digital 64 Analogue 2-Tone N/A Analogue HDC1200 N/A Analogue 5-Tone N/A

Text Messaging

64 characters (via Quick Text only)

MPT1327 / 1343 Trunking

NO

Tier 3 Trunking

NO

XPT

NO

Over-the-Air Programming

NO

Analogue Only Version

Not Available

Wireless Charging

YES (requires optional wireless charge kit and latest hardware)

RFID Reader

NO

Data Services via Bluetooth

N/A
