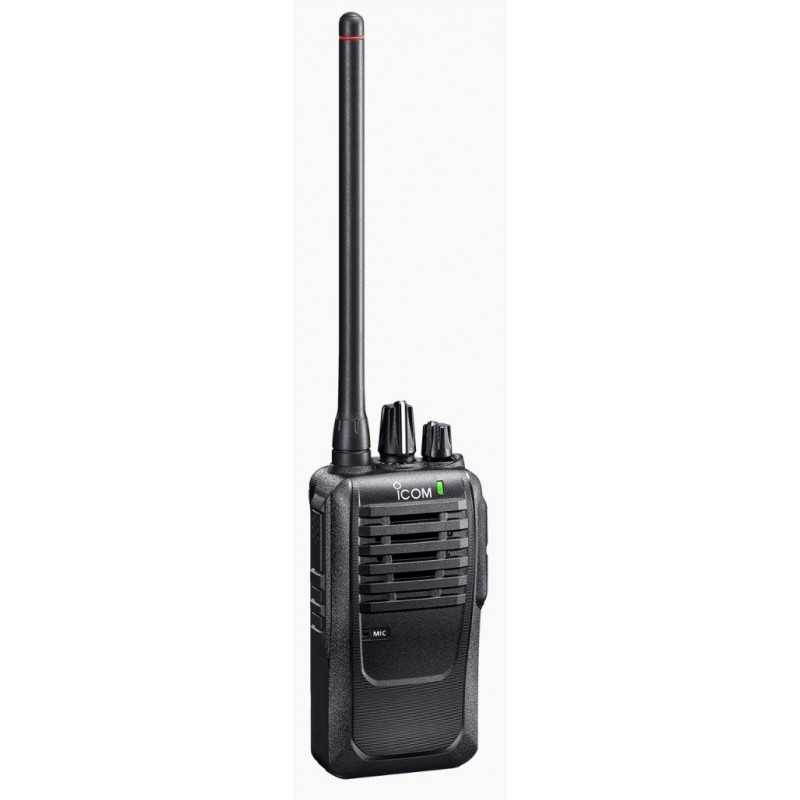

Icom IC-F4002 UHF Handheld Analog Radio

Simple operation for instant communication

The IC-F3002 series is so easy to use there’s no special training required. The few knobs and buttons are generously sized for easy operation and are designed to provide non-slip, positive action – even while wearing gloves.

Easy to hear in noisy areas

The radio provides 1500 mW* loud and clear audio with Icom custom high power handling capacity speaker. Clear communication is available even in noisy environments.

* Typical with internal speaker

Optional 1500 mW Speaker-Microphone, HM-222HLWP*

The combination of the optional HM-222HLWP and the IC-F3002 series* also provides 1500 mW (typ.) loud audio from the attached speaker microphone.

* For the transceiver with a "U" mark on the serial number label.

Longer operating time

A new high efficiency FET of the IC-F3002 series reduces consumption current and provides up to 31 hours* of operating time with the BP-299, 3150 mAh (typical) supplied battery pack.

* TX: RX: Standby=5: 5: 90. Power save function ON.

Weather resistant, dust protection, military rugged

While the radio is a compact unit with a height of only 111 mm, the radio is tested to dust protection and water resistant equivalent to IP54 and 11 categories of MILSTD- 810 environmental tests. In short, the IC-F3002 series is built rugged!

Internal VOX capability for hands-free operation

The radio has the internal VOX capability for hands-free operation. Optional compatible headset with plug adapter cable OPC-2004LA can be used with the radio. Also, the VOX gain and VOX delay time are adjustable.

Selective calling, quiet stand-by and more

2-Tone and 5-Tone signaling gives you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.

Scan features

The priority scan allows you to monitor one or two priority channels while scanning other non-priority channels. The TX channel and talk back functions allow you to make a quick response while scanning.

Other features

• DTMF autodial
• CTCSS/DTCS encoder/decoder
• BIIS PTT ID transmission
• MDC PTT ID and emergency
• Low battery alert
• 2-step power save
• PC programmable
• Time out timer
• Talk around function
• Lone worker function
• Enhanced emergency
• 3-color LED
• Surveillance function

Specifications

General

Frequency range (Varies according to version) 400–470 MHz

Number of memory channels 16 channels

Type of emission 8K50F3E/14K0F3E/16K0F3E

Channel spacing 12.5/20/25 kHz

Power supply requirement 7.2 V DC

Current drain (approximate) Tx High 1.6 A, Rx Stand-by 70 mA, Max. audio 500 mA (Internal SP)

Antenna impedance 50 Ω

Operating temperature range –25°C to +55°C (Radio only)

Dimensions (W×H×D) (Projections are not included) 58 × 111 × 35.5 mm (With BP-299)

Weight (approximate) 272 g (With BP-299)

Transmitter

RF output power (at 7.2V DC)  5 W, 2 W, 1 W (Hi, L2, L1)

Max. frequency deviation ± 5.0 kHz/±4.0 kHz/±2.5 kHz (Wide/Middle/Narrow)

Frequency stability ±2.5 ppm

Spurious emissions 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz)

Residual modulations 53/51/48 dB typical (Wide/Middle/Narrow)

Audio harmonic distortion (AF 1 kHz 40% deviation) 1.0%/1.0%/1.5% typical (Wide/Middle/Narrow)

Ext. microphone connector 3-conductor 2.5 (d) mm (1/10″)/2.2 kΩ)

Receiver

Sensitivity (at 20 dB SINAD) –4 dBμV typical emf

Adjacent channel selectivity 73/73/65 dB typical (Wide/Middle/Narrow)

Spurious response rejection 70dB (min.)

Intermodulation rejection 65 dB minimum

Hum and noise (With CCITT filter) 52/50/47 dB typical (Wide/Middle/Narrow)

Audio output power (at 5% distortion 8Ω load ) Internal SP 1500 mW typical, External SP 400 mW typical 1500 mW typical (BTL, HM-222HLWP connected)

Ext. speaker connector Ext. speaker connector
