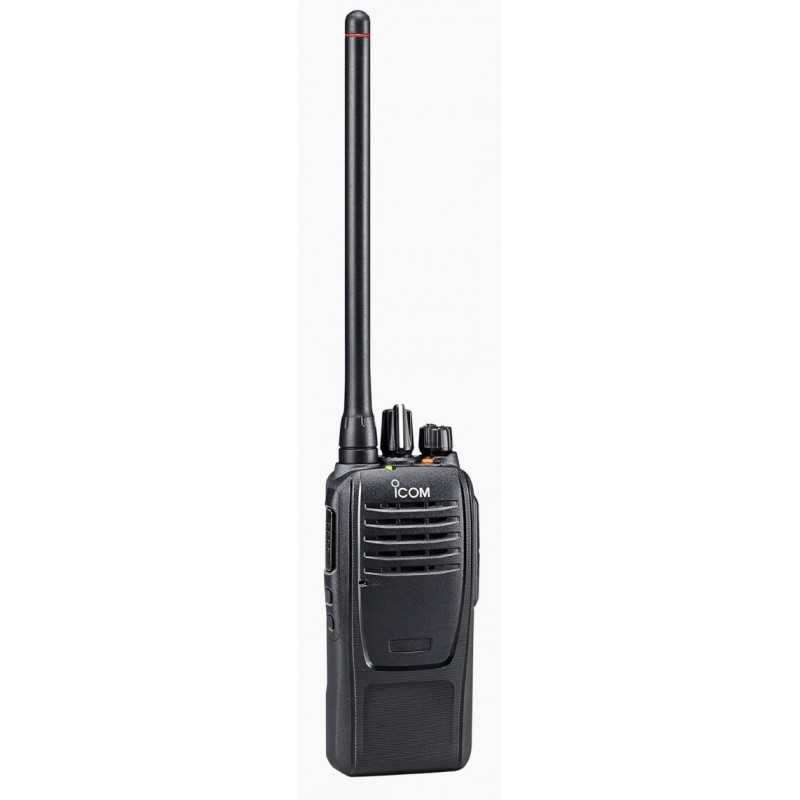

Icom IC-F1000 Advanced VHF Handheld Analog Radio

The Icom IC-F1000 is a versatile, high-performance VHF handheld analog radio designed for robust communication. Engineered with advanced features, it ensures clear audio quality, durability, and enhanced safety functions, making it ideal for professional use in various environments.

Key Features

• Powerful Audio: Equipped with a custom high power handling capacity speaker delivering 1500 mW of powerful audio output.
• Optional Speaker-Microphone: Compatible with the optional 1500 mW Speaker-Microphone, HM-222HLWP (for transceivers with a "U" mark on the serial number label; not available for USA version).
• Durable Design: Compact, waterproof, and durable with IP67 and MIL-STD-810-G ratings.
• Safety Features: Includes built-in motion/stationary detection sensor for enhanced emergency safety.
• Channel Capacity: Offers 128 channel capacity across eight zones, suitable for both Simple and Ten-Key types.
• Signaling Compatibility: Built-in 2-Tone, 5-Tone, CTCSS, and DTCS signaling; MDC and BIIS compatible.
• Security: 16-code inversion voice scrambler for secure communications.
• Emergency Functions: Features man down and lone worker functions.
• Convenience: Channel announcement feature for ease of use.
• Battery Life: Up to 14 hours of operating time with the supplied BP-279 battery.

Specifications

General

Frequency Coverage: 136–174 MHz (varies according to version)

Number of Channels: 16 channels

Type of Emission: 16K0F3E*/11K0F3E (USA/EXP), 16K0F3E/14K0F3E/8K50F3E (EUR)

Power Supply Requirement: 7.5V DC nominal

Current Drain: Tx 1.3A, Rx 500 mA / 77 mA (Max. audio (internal SP)/Standby)

Antenna Impedance: 50Ω

Operating Temperature Range: –30°C to +60°C; –22°F to +140°F (USA/EXP); –25°C to +55°C (EUR)

Dimensions (W × H × D): 52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)

Weight (Approx.): 240 g; 8.5 oz (With BP-279)

Transmitter

Output Power (Hi, L2, L1): 5 W, 2 W, 1 W

Maximum Frequency Deviation: ± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious Emissions: 70 dB minimum (USA/EXP) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)

Frequency Stability: ±2.5ppm

Audio Harmonic Distortion: 1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz) (at AF 1 kHz 40% deviation)

FM Hum and Noise: 46 dB typical (25 kHz), 40 dB typical (12.5 kHz) (USA/EXP)

Residual Modulations: 50 dB typical (25 kHz), 47 dB typical (20 kHz), 44 dB typical (12.5 kHz) (EUR)

External Microphone Connector: 3-conductor 2.5 (d) mm (1/10)/2.2 kΩ

Receiver

Sensitivity: 0.25μV typical (at 12dB SINAD); –4 dBμV typical emf (at 20dB SINAD)

Adjacent Channel Selectivity: 76 dB typical (25 kHz), 53 dB typical (12.5 kHz) (TIA-603D); 78 dB typical (25 kHz), 71 dB typical (12.5 kHz) (TIA-603A); 76 dB typ. (25 kHz), 72 dB typ. (20 kHz), 53 dB typ. (12.5 kHz) (EUR)

Spurious Response Rejection: 70dB minimum

Intermodulation Rejection: 74 dB typical (USA/EXP), 68 dB typical (EUR)

Hum and Noise: 51 dB typical (25 kHz), 45 dB typical (12.5 kHz) (USA/EXP); 52 dB typical (25 kHz), 49 dB typical (20 kHz), 46 dB typical (12.5 kHz) (EUR)

AF Output Power: Internal SP 1500 mW typical; External SP 400 mW typical (Single end) 1500 mW typical (BTL, HM-222HLWP connected)

External Speaker Connector: 2-conductor 3.5 (d) mm (1⁄8)/8 Ω
