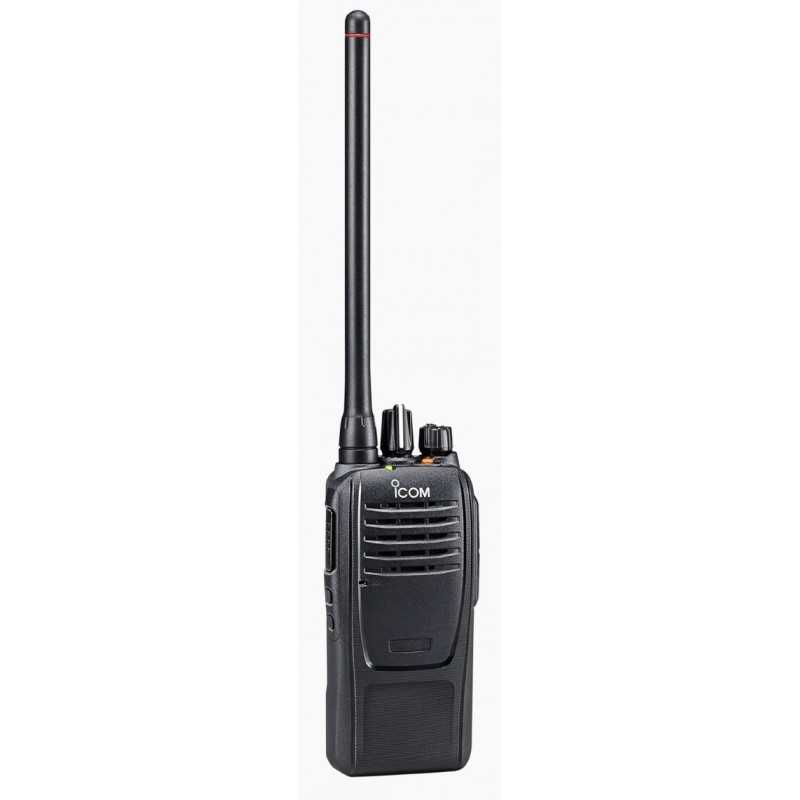

Icom IC-F1000S VHF Handheld Analog Radio

• Icom Custom High Power Handling Capacity Speaker for 1500 mW Powerful Audio
• Optional 1500 mW Speaker-Microphone, HM-222HLWP* (* For the transceiver with a "U" mark on the serial number label. Not available for USA version.)
• Compact, Waterproof Durable Design (IP67 and MIL-STD-810-G)
• Enhanced Emergency Safety with Built-in Motion/Stationary Detection Sensor
• 128 Channel Capacity with Eight Zones (Simple Type and Ten-Key Type)
• Built-in 2-Tone, 5-Tone, CTCSS and DTCS
• MDC and BIIS Compatible
• 16-Code Inversion Voice Scrambler
• Man Down and Lone Worker Functions
• Channel Announcement
• Up to 14 Hours of Operating Time with Supplied BP-279 Battery

Specifications

General

Frequency coverage* (*Varies according to version) 136–174 MHz

Number of channels 128 channels/ 8 zones

Type of emission 16K0F3E*/11K0F3E (USA/EXP), 16K0F3E/14K0F3E/8K50F3E (EUR)

Power supply requirement 7.5V DC nominal

Current drain (approx.) Tx 1.3A, Rx 500 mA /77 mA (Max. audio (internal SP)/Standby)

Antenna impedance 50Ω

Operating temperature range

(Radio specification) –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP) –25°C to +55°C (Radio specifi cation) (EUR)

Dimensions (W × H × D; Projections not included) 52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)

Weight (approx.) 240 g; 8.5 oz (With BP-279)

Transmitter

Output power (Hi, L2, L1) 5 W, 2 W, 1 W

Maximum frequency deviation ± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious emissions 70 dB minimum (USA/EXP) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)

Frequency stability ±2.5ppm

Audio harmonic distortion 1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz) (at AF 1 kHz 40% deviation)

FM Hum and Noise (without CCITT filter) 46 dB typical (25 kHz), 40 dB typical (12.5 kHz) (USA/EXP)

Residual modulations (with CCITT filter) 50 dB typical (25 kHz), 47 dB typical (20 kHz), 44 dB typical (12.5 kHz) (EUR)

External microphone connector 3-conductor 2.5 (d) mm (1/10)/2.2 kΩ

Receiver

Sensitivity (at 12dB SINAD) 0.25μV typical (at 20dB SINAD) –4 dBμV typical emf

Adjacent channel selectivity 76 dB typical (25 kHz), 53 dB typical (12.5 kHz) (TIA-603D) 78 dB typical (25 kHz), 71 dB typical (12.5 kHz) (TIA-603A) 76 dB typ. (25 kHz), 72 dB typ. (20 kHz), 53 dB typ. (12.5 kHz) (EUR)

Spurious response rejection 70dB minimum

Intermodulation rejection 74 dB typical (USA/EXP), 68 dB typical (EUR)

Hum and noise (With CCITT filter) 51 dB typical (25 kHz), 45 dB typical (12.5 kHz) (USA/EXP) (Without CCITT filter) 52 dB typical (25 kHz), 49 dB typical (20 kHz), 46 dB typical (12.5 kHz) (EUR)

AF output power (at 5% distortion 8Ω load ) Internal SP 1500 mW typical. External SP 400 mW typical (Single end) 1500 mW typical (BTL, HM-222HLWP connected)

External speaker connector 2-conductor 3.5 (d) mm (1⁄8)/8 Ω
