Icom IC-F2000S UHF Handheld Analog Radio
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

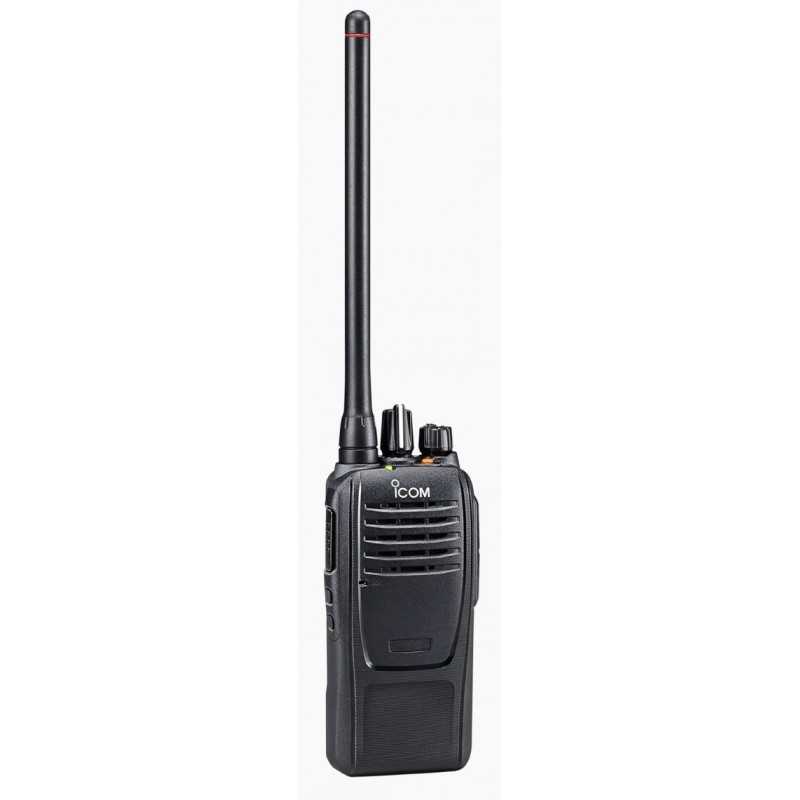

Icom IC-F2000S UHF Handheld Analog Radio

Discover the Icom IC-F2000S UHF Handheld Analog Radio—a compact powerhouse delivering exceptional 1500 mW audio output for crystal-clear communication in noisy settings. This rugged, water-resistant device is designed for durability and ease of use, featuring multiple scanning options and a built-in inversion voice scrambler for secure conversations. With MDC 1200 compatibility, it offers customizable accessibility for diverse needs. Whether in harsh environments or everyday use, the Icom IC-F2000S is your reliable communication solution, combining advanced features with robust performance.

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

Icom IC-F2000S UHF Handheld Analog Radio

Icom IC-F2000S UHF Handheld Analog Radio

The Icom IC-F2000S is a robust and reliable UHF handheld analog radio designed for effective communication in various environments. This device combines durability with advanced features to ensure user safety and operational efficiency.

  • Powerful Audio: Equipped with an Icom custom high power handling capacity speaker, delivering 1500 mW of powerful audio output.
  • Optional Accessories: Compatible with the optional 1500 mW speaker-microphone, HM-222HLWP* (*Note: Compatible with transceivers marked with a "U" on the serial number label; not available for the USA version).
  • Durable Design: Compact, waterproof, and built to withstand harsh conditions, meeting IP67 and MIL-STD-810-G standards.
  • Safety Features: Enhanced emergency features with a built-in motion/stationary detection sensor.
  • Channel Capacity: Offers 128 channel capacity with eight zones, available in simple type and ten-key type versions.
  • Signaling Compatibility: Built-in 2-Tone, 5-Tone, CTCSS, and DTCS signaling with MDC and BIIS compatibility.
  • Voice Security: 16-code inversion voice scrambler for secure communications.
  • Safety Functions: Includes Man Down and Lone Worker functions for added safety in the field.
  • User-Friendly: Features channel announcement for ease of use.
  • Long Battery Life: Provides up to 14 hours of operating time with the supplied BP-279 battery.

Specifications

General

  • Frequency Coverage: 400–470 MHz (ALL), 450–512 MHz (USA), 450–520 MHz (EXP)*
  • Channels: 128 channels / 8 zones
  • Emission Types: 16K0F3E*/11K0F3E (USA/EXP), 16K0F3E/14K0F3E/8K50F3E (EUR)
  • Power Supply: 7.5V DC nominal
  • Current Drain: Tx 1.3A, Rx 500 mA /80 mA (Max. audio/Standby)
  • Antenna Impedance: 50Ω
  • Operating Temperature: –30°C to +60°C; –22°F to +140°F (USA/EXP), –25°C to +55°C (EUR)
  • Dimensions: 52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279)
  • Weight: 240 g; 8.5 oz (With BP-279)

Transmitter

  • Output Power: 4 W, 2 W, 1 W
  • Max Frequency Deviation: ± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
  • Spurious Emissions: 70 dB minimum (USA/EXP), 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
  • Frequency Stability: ±2.5ppm
  • Audio Harmonic Distortion: 1.0% typical (25/20 kHz), 1.5% typical (12.5 kHz)
  • FM Hum and Noise: 46 dB typical (25 kHz), 40 dB typical (12.5 kHz) (USA/EXP)
  • Residual Modulations: 53 dB typical (25 kHz), 51 dB typical (20 kHz), 48 dB typical (12.5 kHz) (EUR)
  • External Microphone Connector: 3-conductor 2.5 mm /2.2 kΩ

Receiver

  • Sensitivity: 0.25μV typical (at 20dB SINAD) –4 dBμV typical emf
  • Adjacent Channel Selectivity: 73 dB typical (25 kHz), 56 dB typical (12.5 kHz) (TIA-603D)
  • Spurious Response Rejection: 70dB minimum
  • Intermodulation Rejection: 73 dB typical (USA/EXP), 67 dB typical (EUR)
  • Hum and Noise: 49 dB typical (25 kHz), 43 dB typical (12.5 kHz) (USA/EXP)
  • AF Output Power: Internal SP 1500 mW typical. External SP 400 mW typical
  • External Speaker Connector: 2-conductor 3.5 mm / 8 Ω

Data sheet

DY69W531M1
