Icom IC-F51 ATEX VHF Handheld Analog Radio
Viktoriia Turzhanska
Product Manager /
+48723706700 +48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description

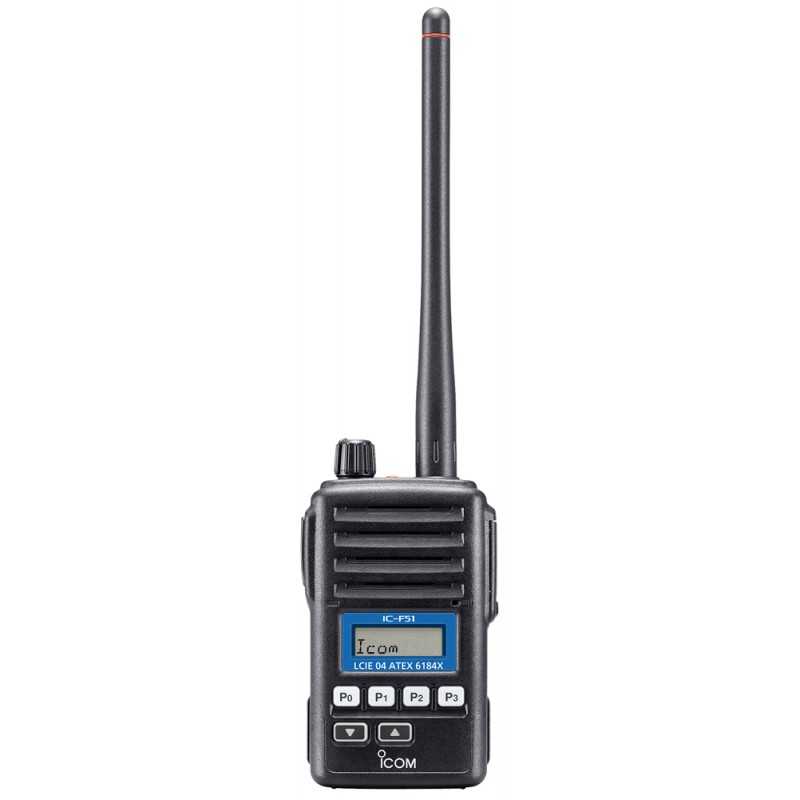

Icom IC-F51 ATEX VHF Handheld Analog Radio - Rugged and Reliable Communication
Dust and Waterproof Protection Equivalent to IP67
The Icom IC-F51 ATEX VHF Handheld Analog Radio is designed to withstand the toughest environments with its gasket-sealed waterproof housing. It provides exceptional dust and waterproof protection, equivalent to IP67, ensuring reliable performance under harsh conditions, whether in water or dusty environments.*
*Withstands 1 m depth of water for 30 minutes.
Advanced Tone Signaling
Enjoy advanced communication capabilities with built-in CTCSS, DTCS, 2-Tone, and 5-Tone signaling. This allows you to create personalized talk groups, maintain silent standby, and set up selective calls to individuals or control repeaters.
Multiple 5-Tone Decoding
Decode up to 8 different 5-Tone codes on a single memory channel, perfect for professionals needing multiple district paging on one channel. Programmable features per code include:
- Bell icon
- Answer back
- Stun
- Beep sound
- Auto transmit
- Scan
- ID decode
- Emergency cancel
Customizable Control with Programmable Buttons
The radio features up to 7 programmable buttons ([P0]–[P3], [Red], [Up], [Down]) to suit specific needs. The [Red] button can be assigned as an emergency trigger for added safety.
Clear Alphanumeric Display
The 8-character alphanumeric display shows essential information such as channel, bank, tone code, and scanning channel names. Operational icons provide status updates at a glance.
Secure Communication with Built-in Voice Scrambler
The IC-F51/F61 includes a built-in rolling type voice scrambler, equivalent to the UT-110, for secure communication.
Extensive Coverage and Channel Capacity
Covering 136–174 MHz (IC-F51) and 400–470 MHz (IC-F61), this radio offers 128 memory channels with 8 memory banks, allowing you to organize channels efficiently. Channel bandwidths are programmable to wide, middle, and narrow settings.*
*Programmable 25/12.5 kHz or 20/12.5 kHz channels.
Dependable Li-ion Battery Pack
The 1950 mAh (typ.) rechargeable Lithium-ion battery pack, BP-227AXD, provides up to 10 hours of operating time. Enjoy flexible charging with minimal memory effect.
*Typical operation Tx:Rx:Stand-by=5:5:90.
Compact and Durable Design
The radio's compact dimensions (56 W × 97 H × 36.4 D mm) and durable construction meet MIL standard specifications, fitting comfortably in your palm for easy portability.
BIIS 1200 Compatibility
Benefit from selective calling and data features through the BIIS system, including:
- 32 abbreviated call memories
- 7 group IDs
- 24-status messages
- 8-character SDM (Short Data Message)
Additional Features
- Built-in audio compander
- 8 DTMF autodial memories
- Normal and priority scans
- 2-step power saver
- Busy and repeater lockout functions
- Power ON password protection, and more...
Specifications
General
- Frequency Coverage: 136–174 MHz
- Number of Channels: Max. 128 channels/ 8 zones
- Type of Emission: 16K0F3E, 14K0F3E, 8K50F3E
- Channel Spacing: 12.5/20/25 kHz
- PLL Channel Step: 2.5/3.125 kHz
- Power Supply Requirement: 7.2 V DC nominal
- Current Drain (Approx.): Tx High (at 1 W) 0.7 A, Rx Max. audio 300 mA, Standby 85 mA
- Antenna Impedance: 50 Ω (SMA type)
- Operating Temperature Range: –20°C to +55°C
- Dimensions (W × H × D): 56 × 97 × 36.4 mm (With BP-227AXD)
- Weight (Approx.): 290 g (With BP-227AXD)
Transmitter
- Output Power (at 7.2 V DC): 1 W
- Max. Frequency Deviation: ±5.0 kHz/±4.0 kHz/±2.5 kHz (W/M/N)
- Frequency Stability: ±2.5 ppm
- Spurious Emissions: 0.25 μW (≤ 1 GHz) 1.0 μW (> 1 GHz)
- Modulation Limiting: 60–100% of Max. deviation
- Audio Harmonic Distortion: 3% typ. (AF 1 kHz 40% deviation)
- Ext. Microphone Connector: 9-pin multi connector/2.2 kΩ
Receiver
- Sensitivity (at 20 dB SINAD): –4 dBμV typ. (emf)
- Adjacent Channel Selectivity: 75/73/65 dB min. (W/M/N)
- Spurious Response: 70 dB
- Intermodulation Rejection: 67 dB typ.
- Hum and Noise: 55/53/50 dB typ. (W/M/N)
- Audio Output Power: 500 mW typ. (at 5% distortion with 8 Ω load)
- Ext. Speaker Connector: 9-pin multi connector/8 Ω
Data sheet
