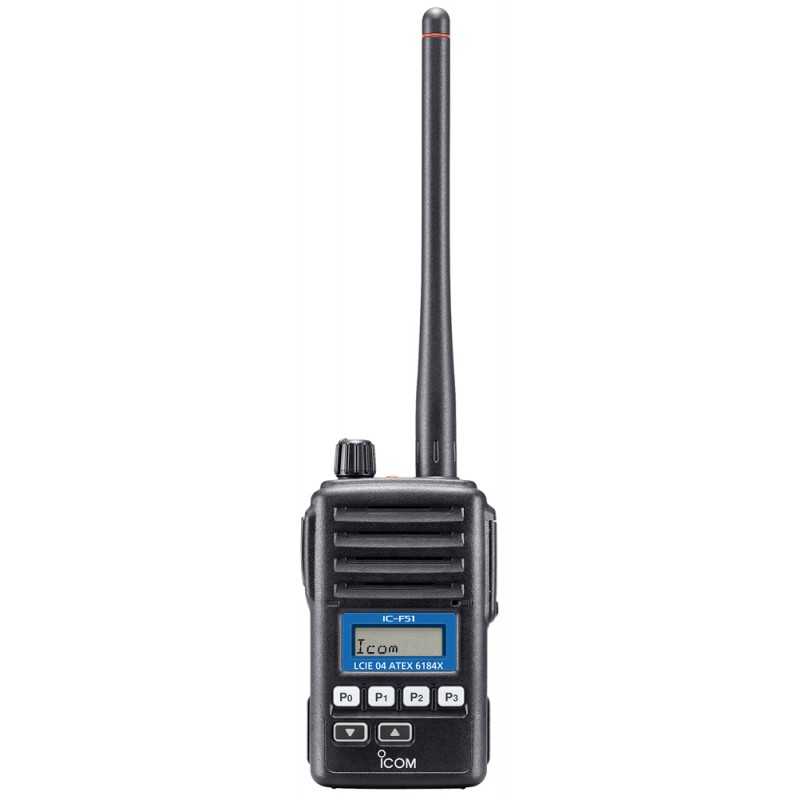

Icom IC-F61 ATEX UHF Handheld Analog Radio

Dust and Waterproof Protection Equivalent to IP67

The gasket sealed waterproof housing provides superior dust and waterproof* protection, equivalent to IP67. Reliable and dependable use in harsh conditions under water or dust, make the IC-F51 / IC-F61 the radio for all situations.

* 1 m depth of water for 30 minutes.

Built-in Tone Signaling

Use the built-in CTCSS, DTCS, 2-Tone and 5-Tone capability to set up your own talk groups and quiet stand-by when other groups are talking. You can also set up selective calls to individuals or control a repeater.

Multiple 5-Tone

Up to 8 5-Tone codes can be decoded on a single memory channel. This is perfect for professionals who require multiple district paging on one channel. When a matched tone is received, the following items are programmable for each code.

• Bell icon

• Answer back

• Stun

• Beep sound

• Auto transmit

• Scan

• ID decode

• Emergency cancel

Up to 7 Programmable Buttons

The [P0]–[P3], [Red] and [Up], [Down] buttons are programmable to meet specifi c needs. The [Red] button on the top panel can be assigned as an emergency trigger.

Alphanumeric Display

The 8-character alphanumeric display shows channel, bank, tone code and scanning channel names on the display. 7 operational icons on the sub-line show various status at a glance.

Built-in Voice Scrambler

The IC-F51/F61 has a built-in rolling type voice scrambler equivalent to the UT-110.

Wide Range Coverage and Large Channel Capacity

The IC-F51 covers 136–174 MHz and the IC-F61 covers 400–470 MHz in one version. The 128 memory channels with 8 memory banks allows you to divide and store a variety of channels from local to wide area network channels. Wide, middle and narrow* channel bandwidth is programmable to each channel.

(* Programmable 25/12.5 kHz or 20/12.5 kHz Ch.)

Li-ion Battery Pack

The large capacity 1950 mAh (typ.) rechargeable Lithium-ion (Li-ion) battery pack, BP-227AXD provides a practical 10 hours* of operating time. Li-ion batteries allow fl exible charging and have almost no memory effect.

* Typical operation Tx:Rx:Stand-by=5:5:90

Compact Body

56 (W) × 97 (H) × 36.4 (D) mm compact body with durable, dependable construction, has been tested to MIL standard specifi cations. The compact design fi ts comfortably in your palm, and is easy to carry around.

BIIS 1200 Compatible

The following selective calling and data features are available with the BIIS system.

• 32 abbreviated call memories

• 7 group IDs • 24-status Messages

• 8-character SDM (Short Data Message)

Other Features

• Built-in audio compander

• 8 DTMF autodial memories

• Normal and priority scans

• 2 step power saver

• Busy, repeater lockout functions

• Power ON password, and more...

SPECIFICATIONS

GENERAL

Frequency coverage 400–470 MHz, 350–400 MHz (Non-RTTE)

Number of channels Max. 128 channels/ 8 zones

Type of emission 16K0F3E, 14K0F3E, 8K50F3E

Channel spacing 12.5/20/25 kHz, 12.5/25 kHz (IC-F61-L)

PLL channel step 2.5/3.125 kHz

Power supply requirement 7.2 V DC nominal

Current drain (approx.)  Tx High (at 1 W) 0.8 A,  Rx Max. audio 300 mA, Standby 85 mA

Antenna impedance 50 Ω (SMA type)

Operating temperature range –20°C to +55°C

Dimensions (W × H × D) (Projections not included) 56 × 97 × 36.4 mm (With BP-227AXD)

Weight (approx.) 290 g (With BP-227AXD)

TRANSMITTER

Output power (at 7.2 V DC) 1 W

Max. frequency deviation ±5.0 kHz/±4.0 kHz/±2.5 kHz (W/M/N)

Frequency stability ±2.5 ppm

Spurious emissions 0.25 μW (≤ 1 GHz) 1.0 μW (> 1 GHz)

Modulation limiting 60–100% of Max. deviation

Audio harmonic distortion 3% typ. (AF 1 kHz 40% deviation)

Ext. microphone connector 9-pin multi connector/2.2 kΩ

RECEIVER

Sensitivity (at 20 dB SINAD) –4 dBμV typ. (emf)

Adjacent channel selectivity 75/73/65 dB min. (W/M/N)

Spurious response 70 dB

Intermodulation rejection 67 dB typ.

Hum and noise 55/53/50 dB typ. (W/M/N)

Audio output power 500 mW typ. (at 5% distortion with 8 Ω load)

Ext. speaker connector 9-pin multi connector/8 Ω
