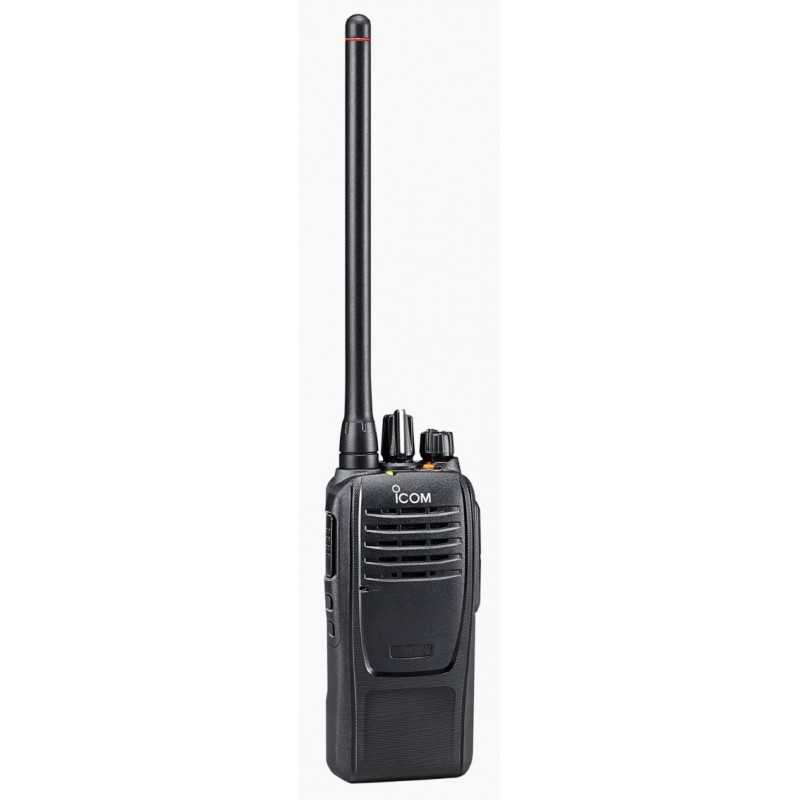

Icom IC-F1100D VHF Handheld IDAS Radio

• Icom’s Custom High Power Handling Capacity Speaker for 1500 mW of Powerful Audio
• Optional 1500 mW Speaker-Microphone, HM-222HLWP* (* For the transceiver with a "U" mark on the serial number label.)
• Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G)
• Multiple Operating Modes* (*Available protocol differs depending on the version.)
• Analog FM
• NXDN™ /dPMR™ conventional
• NXDN™ Type-D single-site trunking
• Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming (IC-F1100DT/DS and IC-F2100DT/DS only)
• AquaQuake™ Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit
• Motion/Stationary Detection, Man Down and Lone Worker Functions
• Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)
• IDAS™ Conventional and Type-D Single-Site Trunking

Specifications

General

Frequency coverage* (*Varies according to version) 136–174 MHz (NXDN/dPMR)

Number of channels 16 channels

Type of emission* (*Depending onversion) 11K0F3E, 4K00F1E, 4K00F1D (USA) 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP) 16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)

Power supply requirement 7.5V DC nominal

Current drain (approx.) Tx 1.3A, Rx 520 mA /110 mA (Max. audio (internal SP)/Standby)

Antenna impedance 50Ω

Operating temperature range (Radio specification) –30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP) –25°C to +55°C (Radio specification) (EUR)

Dimensions (W × H × D; Projections not included) IC-F1100DS/D, IC-F2100DS/D: 52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280) IC-F1100DT, IC-F2100DT: 52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)

Weight (approx.) IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133) IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133) IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)

Transmitter

Output power (Hi, L2, L1) 5 W, 2 W, 1 W

Maximum frequency deviation ± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious emissions 70 dB minimum (USA/EXP) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)

Frequency stability ±2.0ppm

Audio harmonic distortion 0.8% typ. (25 kHz), 0.9% typical (20 kHz), 1.0% typical (12.5 kHz) (at AF 1 kHz 40% deviation)

FM Hum and Noise (without CCITT filter) 46 dB typ. (25 kHz) (EXP), 44 dB typ. (12.5 kHz) (USA/EXP)

Residual modulations (with CCITT filter) 51 dB typical (25 kHz), 49 dB typical (20 kHz), 45 dB typical (12.5 kHz) (EUR/EXP)

FSK error 5% maximum

External microphone connector 3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ

Receiver

Sensitivity Analog (at 12dB SINAD) 0.24 μV typical, Analog (at 20dB SINAD) –5 dBμV typ. emf (25/20 kHz), –2 dBμV typ. emf (12.5 kHz) Digital (at 5% BER) –9 dBμV typical emf (0.18 μV typical)

Adjacent channel selectivity 77 dB typ. (25 kHz), 75 dB typ. (20 kHz), 67 dB typ. (12.5 kHz), 59 dB typ. (digital)

Spurious response rejection 80 dB typical

Intermodulation rejection Digital 71 dB typ. (USA/EXP), 74 dBμV emf typ. (EUR/EXP) Analog 76 dB typ. (25 kHz, EXP), 75 dB typ. (12.5 kHz, USA/EXP), 69 dB typ. (EUR/EXP)

Hum and noise (With CCITT filter) 48 dB typ. (25 kHz, EXP), 43 dB typ. (12.5 kHz, USA/EXP) (Without CCITT filter) 51 dB typ. (25 kHz), 49 dB typ. (20 kHz), 46 dB typ. (12.5 kHz) (EUR/EXP)

AF output power (at 5% distortion 8Ω load) Internal SP 1500 mW typical, External SP 450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected)

External speaker connector 2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω
