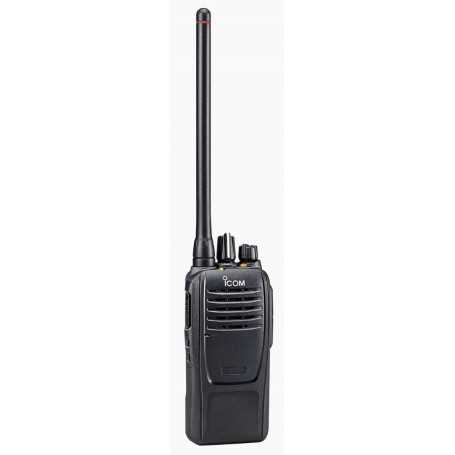

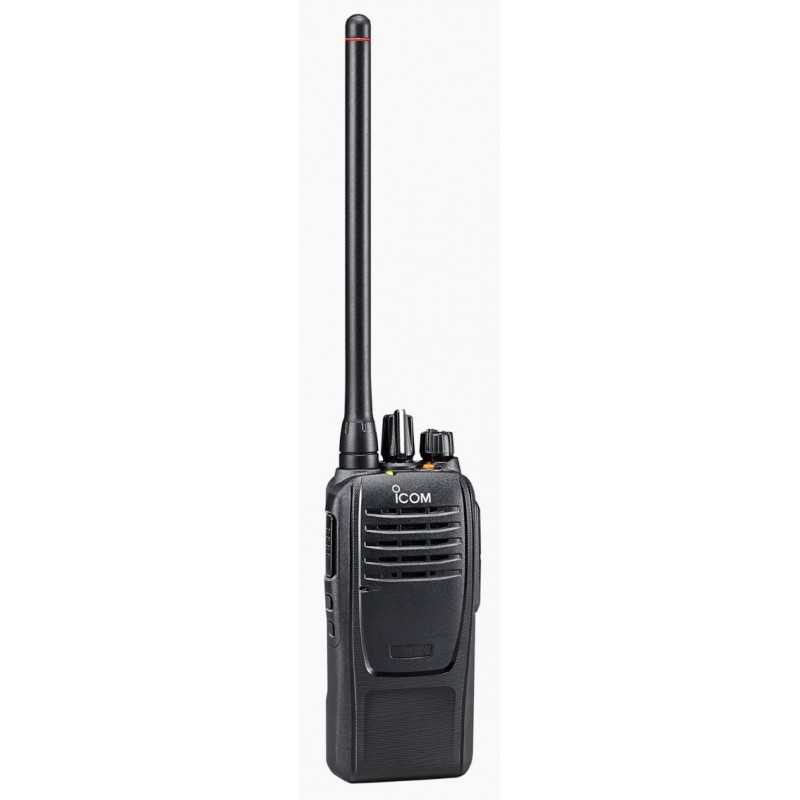

Icom IC-F1100DS VHF Handheld IDAS Radio

The Icom IC-F1100DS VHF Handheld IDAS Radio is designed to provide exceptional audio quality and reliable communication in challenging environments. With its robust build and advanced features, it is perfect for professionals who require dependable performance in the field.

Key Features

• Powerful Audio: Equipped with Icom’s custom high power handling capacity speaker, delivering 1500 mW of powerful audio.
• Optional Speaker-Microphone: Compatible with the optional 1500 mW Speaker-Microphone, HM-222HLWP* (*For transceivers with a "U" mark on the serial number label).
• Rugged Design: Compact and waterproof, meeting IP67/55/54 standards and MIL-STD-810-G for durability.
• Versatile Operating Modes:
  • Analog FM
  • NXDN™ /dPMR™ conventional
  • NXDN™ Type-D single-site trunking
• Over-the-Air Alias: Displays the caller’s name without programming (IC-F1100DT/DS and IC-F2100DT/DS only).
• AquaQuake™ Function: Clears water ingress from the speaker grill, ensuring clear audio.
• Safety Features: Includes motion/stationary detection, man down, and lone worker functions for enhanced safety.
• Long Battery Life: Provides up to 18 hours of operating time with the supplied battery (BP-280).
• IDAS™ Conventional and Trunking: Supports IDAS conventional and Type-D single-site trunking.

Specifications

General

• Frequency Coverage: 136–174 MHz (NXDN/dPMR), varying according to version.
• Channels: 128 channels across 8 zones.
• Power Supply: 7.5V DC nominal.
• Current Drain: Tx 1.3A, Rx 520 mA /110 mA (Max. audio/Standby).
• Operating Temperature: –30°C to +60°C (USA/EXP), –25°C to +55°C (EUR).
• Dimensions:
  • IC-F1100DS/D, IC-F2100DS/D: 52.2 × 111.8 × 29.4 mm
  • IC-F1100DT, IC-F2100DT: 52.2 × 111.8 × 34.1 mm
• Weight:
  • IC-F1100D, IC-F2100D: 258 g
  • IC-F1100DS, IC-F2100DS: 266 g
  • IC-F1100DT, IC-F2100DT: 277 g

Transmitter

• Output Power: 5 W, 2 W, 1 W
• Frequency Deviation: ±5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)
• Spurious Emissions: 70 dB minimum (USA/EXP)
• Frequency Stability: ±2.0 ppm
• Audio Harmonic Distortion: 0.8% typ. (25 kHz)

Receiver

• Sensitivity: Analog 0.24 μV typical, Digital –9 dBμV typical emf
• Adjacent Channel Selectivity: 77 dB typ. (25 kHz)
• Spurious Response Rejection: 80 dB typical
• Intermodulation Rejection: Digital 71 dB typ. (USA/EXP)
• AF Output Power: Internal SP 1500 mW typical

Experience the reliability and high performance of the Icom IC-F1100DS VHF Handheld IDAS Radio — an ideal choice for professionals in demanding environments.
