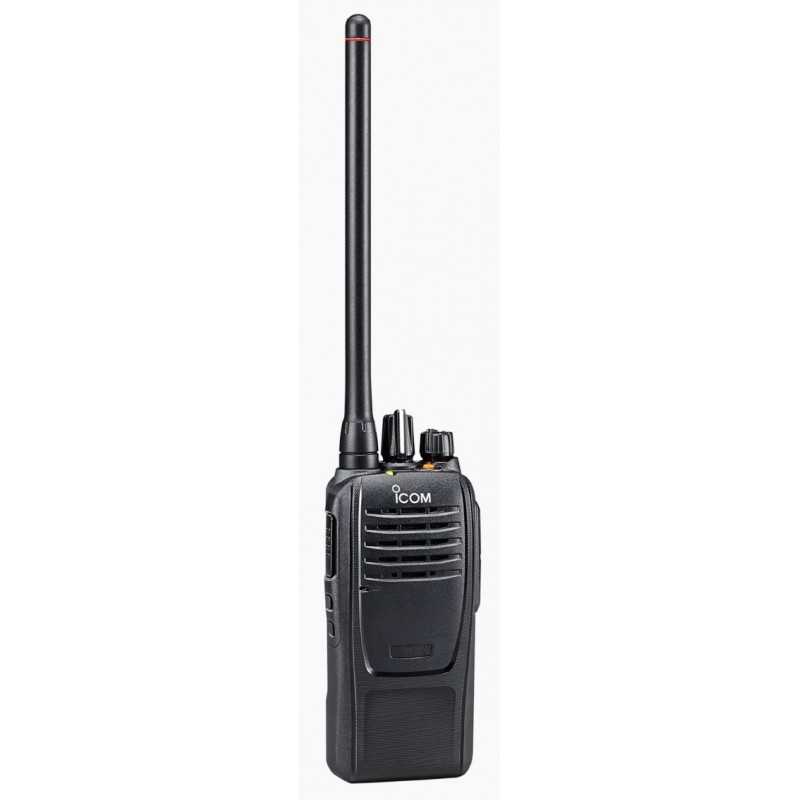

Icom IC-F2100D UHF Handheld IDAS Radio with Advanced Features

Experience exceptional audio quality and robust design with the Icom IC-F2100D UHF Handheld IDAS Radio. This device is engineered for reliability and performance in the most demanding environments.

Key Features

• Powerful Audio: Equipped with Icom's custom high power handling capacity speaker, delivering 1500 mW of powerful audio.
• Optional Accessories: Optional 1500 mW Speaker-Microphone available (HM-222HLWP) for enhanced communication.
• Durable Design: Compact and waterproof, adhering to IP67/55/54 and MIL-STD-810-G standards.
• Versatile Operating Modes: Supports multiple operating modes including Analog FM, NXDN™ /dPMR™ conventional, and NXDN™ Type-D single-site trunking.
• Enhanced Communication: Over-the-Air Alias (OAA) function displays the caller’s name without programming (only in specific models).
• AquaQuake™ Technology: Clears water ingress from the speaker grill, ensuring clear audio even in wet conditions.
• Safety Features: Motion/Stationary Detection, Man Down, and Lone Worker functions provide enhanced safety for users.
• Long-lasting Battery: Offers up to 18 hours of operating time with the supplied BP-280 battery.
• IDAS™ Capabilities: Supports IDAS™ conventional and Type-D single-site trunking.

Specifications

General

• Frequency Coverage: 400–470 MHz (varies by version)
• Number of Channels: 16 channels
• Power Supply: 7.5V DC nominal
• Operating Temperature: –30°C to +60°C (USA/EXP), –25°C to +55°C (EUR)
• Dimensions: 52.2 × 111.8 × 29.4 mm (IC-F1100DS/D, IC-F2100DS/D) | 52.2 × 111.8 × 34.1 mm (IC-F1100DT, IC-F2100DT)
• Weight: 258 g to 277 g (varies by model)

Transmitter

• Output Power: 5 W, 2 W, 1 W
• Frequency Stability: ±1.0ppm
• Audio Harmonic Distortion: 0.7% to 1.0% typical

Receiver

• Sensitivity: 0.24 μV typical for analog (12dB SINAD), –8 dBμV typical for digital (5% BER)
• AF Output Power: 1500 mW typical (internal speaker)

Discover the reliability and advanced capabilities of the Icom IC-F2100D UHF Handheld IDAS Radio, ideal for users in professional and demanding environments.
