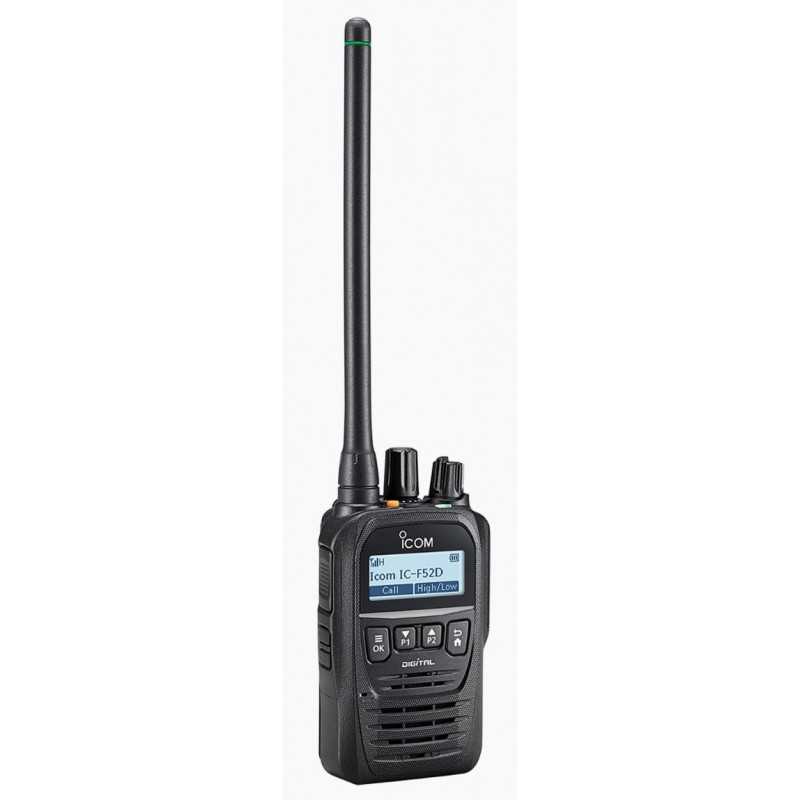

Icom IC-F52D VHF Handheld IDAS Radio

• Small, Light and Feature Packed
• Multiple Operating Modes (* Not available in all regions.)
• Analog FM
• NXDN™/dPMR™ conventional
• Upgradable to NXDN™ Type-D trunking
• Upgradable to dPMR™ Mode 3 trunking*
• Full Dot-Matrix Display, Rotary Channel and Volume Knob for Simple Every-day Operation
• Built-in Bluetooth®, Voice Recording, Active Noise Cancelling Functions* (* Version without Bluetooth® also available. Ask your Dealer for details.)
• Motion/Stationary Detection, Man Down and Lone Worker Functions
• OTAP (Over-the-Air Programming) Function Easily Reconfigures In-the-Field Radios
• Intelligent Battery Management Helps to Extend the Battery Life

Specifications

General

Frequency coverage* (* Depending on version) 136–174 MHz

Number of channels 512 channels /128 zones

Type of emission* (* Depending on version)

(NXDN Version) 16K0F3E*, 14K0F3E, 11K0F3E, 8K50F3E, 8K30F1E/D, 4K00F1E/D

(dPMR Version) 16K0F3E*, 14K0F3E, 8K50F3E, 4K00F1E/D

* 25 kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.

Power supply requirement 7.5 V DC nominal

Current drain (approx.) Tx 1.8 A, Rx 500 mA /170 mA (Max. audio (internal SP)/Standby)

Antenna impedance 50 Ω

Operating temperature range −30 °C to +60 °C; −22 °F to +140 °F (Radio specifications)

Dimensions (W × H × D; Projections not included) 56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in (With BP-294)

Weight (approx.) 125 g; 4.4 oz (main unit) 270 g; 9.5 oz (BP-294, MBB-3)

Transmitter

Output power (Hi, L2, L1) 5 W, 2 W, 1 W

Frequency stability ±1.0 ppm

Spurious emissions 80 dB typ. (USA) 0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)

FM Hum and noise 57 dB typ. (@25 kHz), 55 dB typ. (@12.5 kHz) (USA)

Audio harmonic distortion 0.4% typ. (AF 1 kHz 40% deviation)

FSK error 1% typ. (@DVN, DN)

Receiver

Sensitivity Analog (12 dB SINAD) 0.23 μV typ. Analog (20 dB SINAD) −4.0 dBμV emf typ. (@25 kHz), −1.4 dBμV emf typ. (@12.5 kHz) Digital (1% BER) −5.0 dBμV emf typ. (0.28 μV typ. ) (@DVN), −3.0 dBμV emf typ. (0.35 μV typ. ) (@DN)

Adjacent channel Analog 79 dB typ. (@25/20 kHz), 77 dB typ. (@12.5 kHz) Digital 70 dB typ. (@DVN), 72 dB typ. (@DN)

Spurious response rejection 76 dB typ.

Intermodulation rejection Analog 76 dB typ. (USA) 68 dB typ. (EUR) Digital 73 dBμV emf typ. (@DVN)/−40 dBm typ. (@DN)

Audio output power Internal SP 1300 mW typ. (at 5% distortion, 8 Ω load) External SP 1000 mW typ. (at 5% distortion, 8 Ω load) 1300 mW typ. (at 5% distortion, 8 Ω load) with HM-222H
