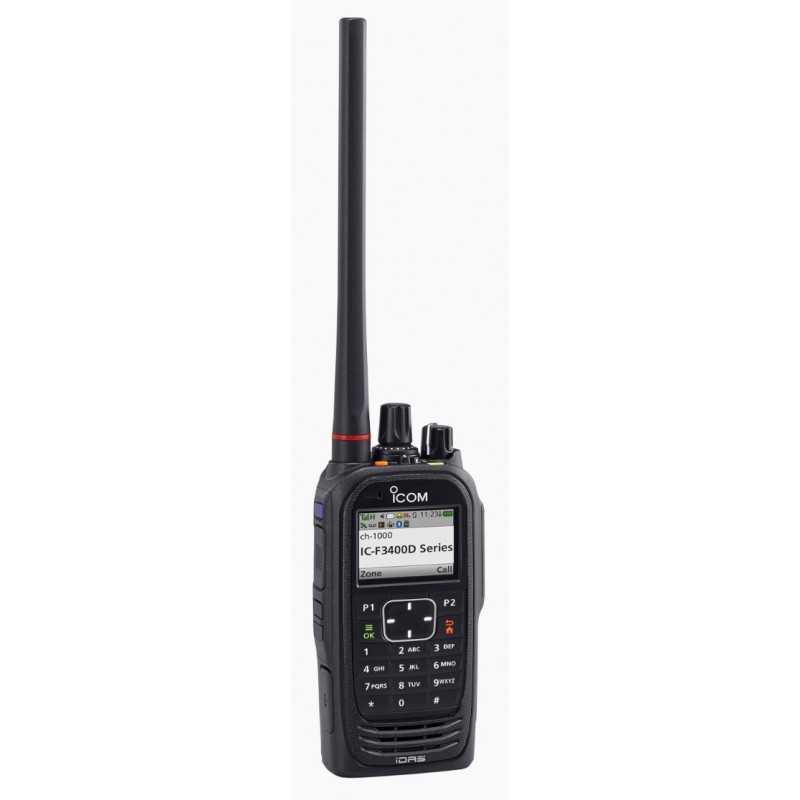

Icom IC-F3400DS VHF Handheld IDAS Radio

Icom IC-F3400DS VHF Handheld IDAS Two-Way Radio

Experience seamless communication with the Icom IC-F3400DS VHF Handheld IDAS Two-Way Radio, designed for professionals who demand reliability and efficiency in their communication systems. Perfect for wide-area connectivity, this radio integrates advanced features for optimal performance in various environments.

Key Features:

• Efficiently manages multiple channels for a large number of users.
• Note: License key (ISL-UGMTR for NXDN Type-D or ISL-UGMD3 for dPMR Mode 3) required.

• Connect multiple repeater sites over an IP network for expanded communication coverage.
• Applicable to both conventional and trunking modes.

• Automatically selects the optimal repeater site in a multi-site conventional system, ideal for wide-area user mobility.

• Receive and respond to both analog and digital mode signals on a single channel.
• Integrate IDAS radios while continuing to use existing analog systems.

• Enhance functionality with upgrades for trunking capability, channel capacity, AES encryption, and more via license key options.

System Management and Efficiency:

• Update radio configurations remotely, saving time and eliminating the need for physical reprogramming.
• Note: OTAP manager software (CS-OTPM1) required.

• Export and import common system parameters for enhanced programming efficiency.

Design and User Interface:

• Compact and efficient design with reduced power consumption for a thinner battery pack.

• High-resolution color LCD enhances visibility with night mode for low-light conditions.
• Intuitive icons and menu items simplify operation.

Convenience and Functionality:

• Automatically display caller information without the need for pre-programmed lists.

• Built-in Bluetooth® for remote and hands-free operations.
• Pair with third-party headsets such as 3M™ Peltor™ WS™ 5 series.*2

• Record up to 500 hours of calls (with 32 GB microSD* card).
• Embedded call information, including user IDs and GPS positions.

Safety and Security:

• Secure digital communication with encryption and remote key updates.
• Note: OTAR manager software (CS-OTAR1) required.

• Automatic emergency signal transmission for enhanced worker safety.

• Disable lost or stolen radios to mitigate security threats.
• Revive functionality available with password or command.

Audio Quality and Data Communication:

• Clear audio in noisy environments with background noise suppression.

• Transmit data and position information with voice or status calls.
• Compatible with third-party AVL systems.

Specifications:

• Frequency Range: 136–174MHz (NXDN and dPMR)
• Number of Channels: Up to 4000 channels / 128 zones (option available)
• Power Supply: 7.5V DC nominal
• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Dimensions: 53.6 × 123.5 × 29.3 mm; 2.1 × 4.9 × 1.2 in
• Weight: 215 g (main unit), 340 g (with battery and accessories)

• Output Power: 5 W, 2 W, 1 W
• Frequency Stability: ±1.0ppm
• Spurious Emissions: 80 dB typ. (USA)

• Sensitivity: 0.22 μV typ. (12dB SINAD)
• Audio Output Power: 1300 mW typ. (Internal speaker)
