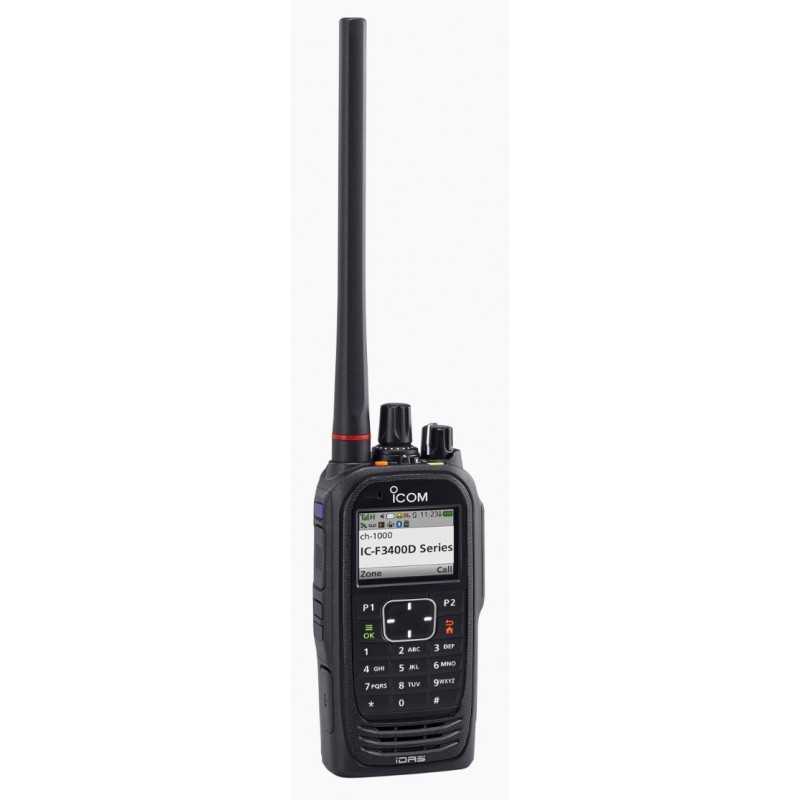

Icom IC-F4400DT UHF Handheld IDAS Radio with Advanced Features

The Icom IC-F4400DT UHF Handheld IDAS Radio is a versatile communication device designed for robust performance in various demanding environments. It integrates cutting-edge technology for seamless voice and data transmission, offering a suite of features tailored for enhanced connectivity, convenience, and security.

Key Features

Trunking (NXDN Type-D or dPMR Mode 3)

• IDAS trunking efficiently manages multiple channels for a large number of users.
• Requires a license key (ISL-UGMTR for NXDN Type-D or ISL-UGMD3 for dPMR Mode 3).

Multi-Site Connectivity

• Expand communication coverage by connecting multiple repeater sites over an IP network.
• Applicable in both conventional and trunking modes.

Voting Scan

• Automatically selects the optimal repeater site for users on the move, ensuring seamless communication.

Mix Mode Operation

• Compatible with both analog and digital signals, allowing gradual transitions to digital systems.

Customizable and Upgradable

License Key Upgrade

• Add functions like trunking capability, AES encryption, and more through license key options, personalizing the radio to meet specific needs.

Over-the-Air-Programming (OTAP)

• Update radio configurations over the air, saving time without the need for physical reprogramming.
• Requires OTAP manager software (CS-OTPM1).

Operating Convenience

Small, Slim, and Smart Design

• Compact and lightweight with reduced power consumption for extended use.

Color LCD and User Interface

• High-resolution display with enhanced visibility and easy-to-navigate icons and menu items.
• Night mode setting available for low-light conditions.

Hands-Free Operation with Bluetooth®

• Supports hands-free communication with a Bluetooth® headset for remote operations.

Digital Voice Recording

• Record and review communications, with up to 500 hours of storage on a 32 GB microSD card.

Safety and Security

AES/DES Encryption and OTAR

• Secure communication with encryption options, including over-the-air key updates.

Emergency Features

• Includes motion detection and man-down functions for worker safety, with automatic emergency signal transmission.

Radio Kill, Stun, and Revive

• Remotely disable lost or stolen radios to prevent unauthorized use.

Specifications

General

• Frequency range: 380–470 MHz (NXDN), 380–470 MHz (dPMR)
• Channel capacity: 1024 channels / 128 zones (expandable)
• Operating temperature: –30 °C to +60 °C
• Dimensions: 53.6 × 123.5 × 29.3 mm
• Weight: 215 g (main unit)

Transmitter

• Output power: Up to 5 W
• Frequency stability: ±1.0ppm

Receiver

• Sensitivity: 12dB SINAD 0.23 μV typ.
• Audio output power: 1300 mW typ. (internal speaker)

The Icom IC-F4400DT is a reliable choice for professional communication needs, offering advanced features, flexibility, and upgradability to adapt to various operational scenarios.
