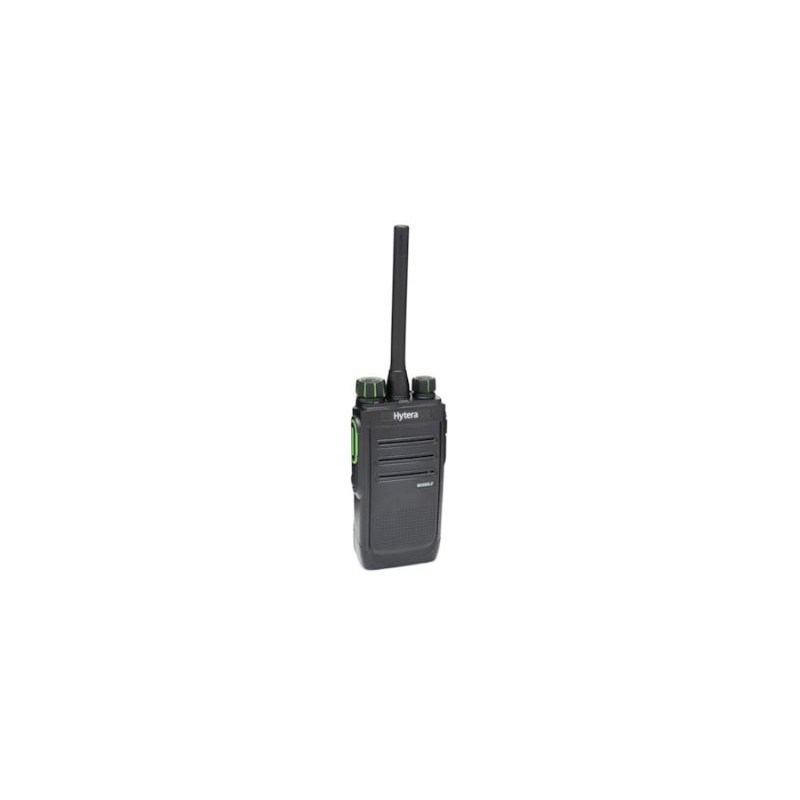

Hytera BD505LF Handheld DMR Licence-Free UHF Radio (PMR446)

A lightweight design in a compact yet rugged exterior, providing clear voice communication and high performance makes the BD505LF the ideal licence-free DMR radio for everyday business communication.

Functions

SLIMLINE AND COMPACT

This lightweight device weighs less than 200g (with antenna and standard battery)

RUGGED AND RELIABLE

BD505LF is designed and tested to meet Military Standards 810 C, D, E, F and G, including temperature shock, vibration, high & low temperature and humidity. IP54 dust- and water-proof design guarantees the reliability in different environments.

CLEAR COMMUNICATIONS

With the use of digital coding and correction technology, transmission of interaction is delivered and received clearly and without interference of background noise.

CHANNEL ANNOUNCEMENT

This feature allows switching of channels to be quick and accurate even in adverse working conditions.

Technical Specifications

General Data

Frequency Range

UHF (403-527 MHz)

Supported operating modes

DMR Tier I (license-free DMR) ETSI TS 102 361-1/2/3, Analogue PMR446

Channel Capacity

8

Zone Capacity

3

Channel Spacing

12.5 kHz (analogue), 25 kHz (digital)

Battery Service Life (5/5/90 duty cycle)

approx. 16 h (digital) approx. 12 h (analogue)

Standard Battery

1500 mAh (lithium-ion battery)

Frequency Stability

± 0.5 ppm

Antenna Impedance

50 Ω

Dimensions (HxBxT)

108 × 54 × 29 mm

Weight (with antenna and standard battery)

approx. 220 g

Environmental Conditions

Operating temperature range

-30 °C to +60 °C

Storage temperature range

-40 °C to +85 °C

Protection against dust and moisture

IP54

Shock and vibration resistance

MIL-STD-810 G standard

Relative humidity

MIL-STD-810 G standard

Transmitter

Transmitting Power

0.5 W

Modulation

11K0F3E at 12.5 kHz, 16K0F3E at 25 kHz

4FSK digital modulation

12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW

Interfering signals and harmonics

36 dBm (< 1 GHz) 30 dBm (> 1 GHz)

Noise cancellation

40 dB at 12.5 kHz 45 dB at 25 kHz

Audio sensitivity

+1 dB to -3 dB

Audio distortion

≤ 3 %

Receiver

Sensitivity (analogue)

0.22 μV (typical) (12 dB SINAD) 0.4 μV (typical) (20 dB SINAD)

Sensitivity (digital)

0.22 μV / BER 5%

Adjacent channel selectivity (ETSI)

60 dB at 12.5 kHz

Nominal audio power output

0.5 W

Conducted spurious emission

< -57 dBm
