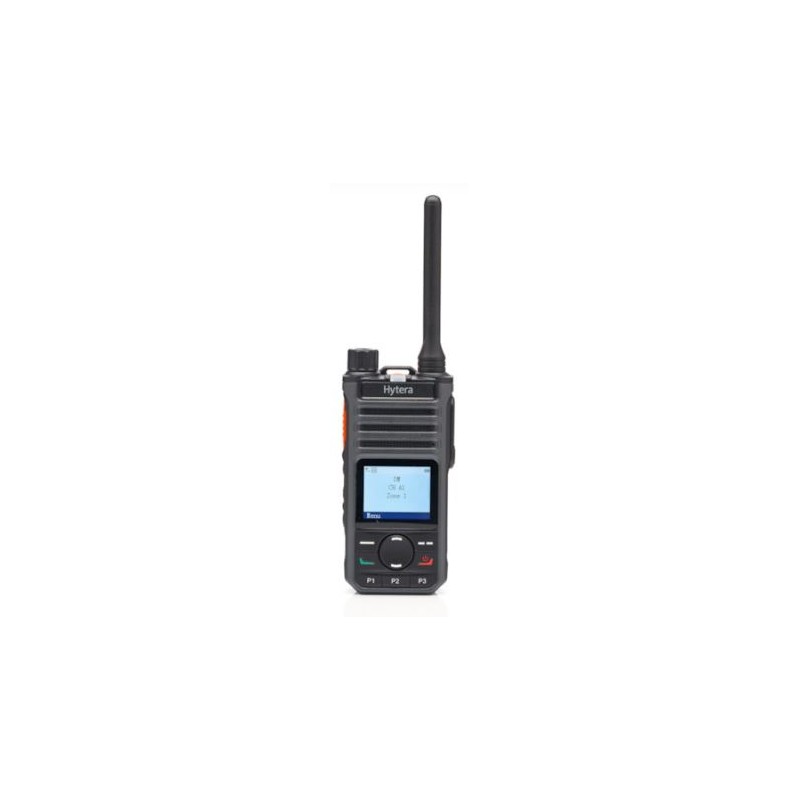

Hytera BP565 DMR and Analog Radio UHF

Powerful digital features like priority interrupt, basic encryption, text messaging, roaming will enhance your business service. The BP565 series has extended range in class and features 128 channels, making group communication more flexible.

Functions

HIGH ENERGY BATTERY

The BP5 series uses international well-known brand batteries with a long service life. It still has 80% of the initial battery capacity after 500 charge-discharge cycles. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can work for 10 hours. A 10W rapid-rate charger ensures safe and reliable charging which can work in harsh environments such as high or low temperatures.

CLEAR AND LOUD AUDIO

Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.

DIGITAL AND ANALOGUE COMPATIBLE

Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging and roaming will enhance your business service. The BP565 series has extended range in class and feature 128 channels, making group communication more flexible.

EXCELLENT COVERAGE

The BP5 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.

Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

128

Zone Capacity

8

Channels Per Zone

16

Channel Spacing

12.5kHz/20kHz/25kHz

Operating Voltage

7.4V

Battery

1500mAh (Standard)

2000mAh (Optional)

Battery Life (5/5/90 Duty Cycle, High TX Power)

Analogue: 12h (1500mAh), 16h (2000mAh)

Digital: 16h (1500mAh), 22h (2000mAh)

Weight (with antenna & battery)

230g±5%g

Dimensions (H x W x D)

115X54.5X29.5mm

BT (Optional)

BT 5.0 BLE+EDR

Display

1.77 inch TFT

Receiver

Sensitivity

Digital: 0.1 BμV / BERS%

Analogue: 0.1 BμV (12dB SINAD)

Adjacent Channel Selectivity

TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz

ETSI: 60dB@l 2.5kHz; 70dB@20/25kHz

Intermodulation

TIA-603: 70dB@l 2.5/20/25kHz

ETSI: 65dB@l 2.5/20/25kHz

Spurious Response Rejection

TIA-603: 70dB@l 2.5/20/25kHz

ETSI: 70dB@l 2.5/20/25kHz

Blocking

TIA-603: B0dB

ETSI: 84dB

Hum and Noise

40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz

Rated Audio Power Output

1W

Rated Audio Distortion

<3%

Audio Response

+1 to -3dB

Conducted Spurious Emission

<-57dBm

Transmitter

RF Power Output

UHF: 4W/1W

FM Modulation

11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz

Conducted/Radiated Emission

-36dBm<lGHz; -30dBm>l GHz

Modulation Limiting

±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz

FM Hum & Noise

[email protected]; 43dB@20kHz; 45dB@25kHz

Adjacent Channel Power

[email protected]; 70dB@20/25kHz

Environmental

Operating Temperature

-30°C ~ +60°C

Storage Temperature

-40°C ~ +85°C

ESD

IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air)

Dust and Water Intrusion

IEC60529-IP54 (IP67 optional)

Humidity

MIL-STD-810 G

Shock and Vibration

MIL-STD-810 G
