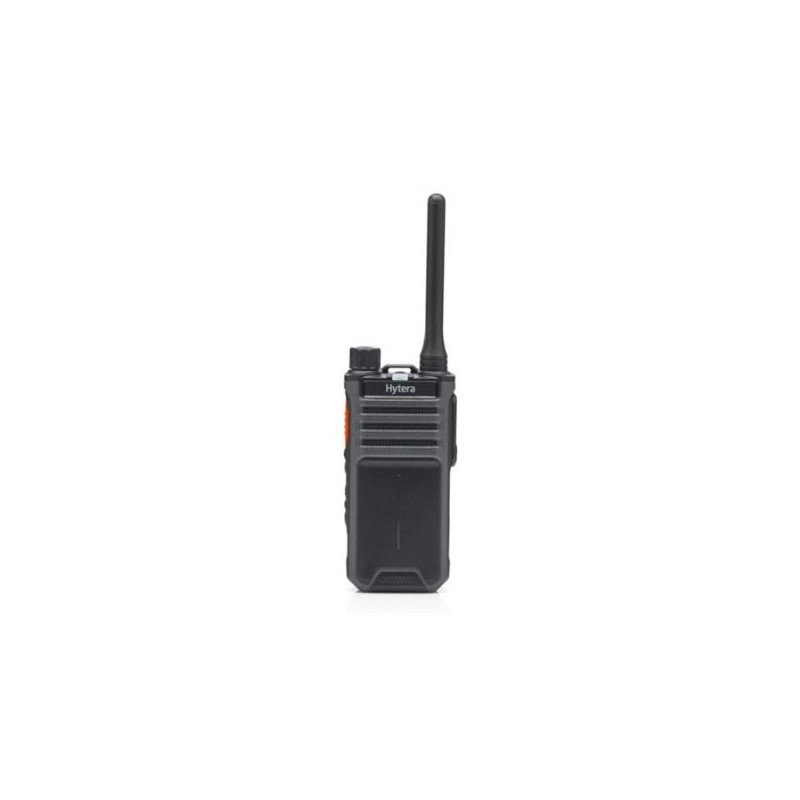

Hytera BP515 BT DMR and Analogue VHF Radio

Hytera BP515 BT DMR and Analogue VHF Radio with Enhanced Digital Features

Enhance your business communication with the Hytera BP515 BT DMR and Analogue VHF Radio, equipped with powerful digital features such as priority interrupt, basic encryption, text messaging, and roaming. This radio offers an extended range and includes 64 channels, providing flexible group communication solutions.

Key Features

• Clear and Loud Audio
• Lightweight and compact design with a built-in intelligent noise reduction algorithm.
• Three-level noise reduction adjustment to ensure clarity even in noisy environments.
• 3W high-power loudspeaker delivering up to 90dBA for clear sound in harsh conditions.
• Excellent howling suppression for use in crowded spaces without feedback noise.
• High Energy Battery
• Equipped with a long-lasting battery from a renowned brand.
• Maintains 80% capacity even after 500 charge-discharge cycles.
• Quick charging capability: 0% to 100% in 1.8 hours, with a 10W rapid-rate charger.
• Operates efficiently in extreme temperatures.
• Digital and Analogue Compatibility
• Compatible with existing digital and analogue systems and terminals.
• Includes features like priority interrupt, basic encryption, text messaging, and roaming.
• Extended class range with 64 channels for flexible group communications.
• Excellent Coverage
• High sensitivity receiving module with efficient monopole antenna for better signal penetration.
• Unique thick screw thread design enhances antenna durability and radiation efficiency.

Technical Specifications

General

• Frequency Range: VHF: 136-174 MHz
• Channel Capacity: 64
• Zone Capacity: 4
• Channels Per Zone: 16
• Channel Spacing: 12.5kHz/20kHz/25kHz
• Operating Voltage: 7.4V
• Battery: 1500mAh (Standard), 2000mAh (Optional)
• Battery Life:
  • Analogue: 12h (1500mAh) / 16h (2000mAh)
  • Digital: 16h (1500mAh) / 22h (2000mAh)
• Weight (with antenna & battery): 210g±5%g
• Dimensions (H x W x D): 115x54.5x29.5mm
• Bluetooth (optional): BT 5.0 BLE+EDR

Receiver

• Sensitivity:
  • Digital: 0.1 BμV / BERS%
  • Analogue: 0.1 BμV (12dB SINAD)
• Adjacent Channel Selectivity:
  • TIA-603: [email protected]; 70dB@20/25kHz
  • ETSI: [email protected]; 70dB@20/25kHz
• Intermodulation:
  • TIA-603: [email protected]/20/25kHz
  • ETSI: [email protected]/20/25kHz
• Spurious Response Rejection:
  • TIA-603: [email protected]/20/25kHz
  • ETSI: [email protected]/20/25kHz
• Blocking:
  • TIA-603: 80dB
  • ETSI: 84dB
• Hum and Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
• Rated Audio Power Output: 1W
• Rated Audio Distortion: <3%
• Audio Response: +1 to -3dB
• Conducted Spurious Emission: <-57dBm

Transmitter

• RF Power Output: VHF: 5W/1W
• FM Modulation: 11 [email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
• Conducted/Radiated Emission: -36dBm<1GHz; -30dBm>1GHz
• Modulation Limiting: ±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
• FM Hum & Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
• Adjacent Channel Power: [email protected]; 70dB@20/25kHz

Environmental

• Operating Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
• Dust and Water Intrusion: IEC60529-IP54 (IP67 optional)
• Humidity: MIL-STD-810 G
• Shock and Vibration: MIL-STD-810 G
