Hytera BP515 BT DMR and UHF Analogue Radio
185.37 £ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description

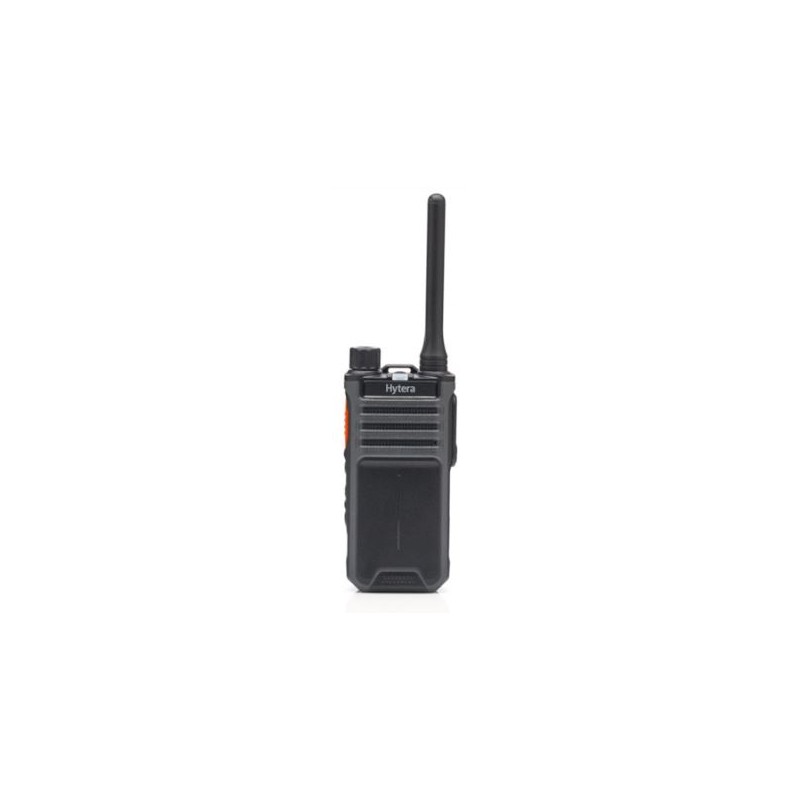

Hytera BP515 BT DMR and UHF Analogue Radio - Enhanced Communication Solution
Enhance your business communication with the Hytera BP515 series, featuring powerful digital capabilities such as priority interrupt, basic encryption, text messaging, and roaming. The extended range and 64-channel capacity provide flexible group communication solutions, ensuring your team stays connected effectively.
Key Features
- Clear and Loud Audio: Equipped with a 3W high-power loudspeaker and intelligent noise reduction, the BP515 delivers clear, loud audio up to 90dBA even in noisy environments. The device offers three levels of noise reduction and excellent howling suppression.
- High Energy Battery: The BP515 uses renowned brand batteries with a long service life, retaining 80% capacity after 500 cycles. It charges fully in 1.8 hours, with a 10-hour operation after just one hour of charging. The 10W rapid-rate charger performs reliably in extreme temperatures.
- Digital and Analogue Compatible: Seamlessly supports both digital and analogue modes, making it compatible with existing systems. The BP515's digital features enhance business operations with greater flexibility and reach.
- Excellent Coverage: Featuring a high-sensitivity receiving module and a robust monopole antenna for superior signal penetration, the BP515 ensures excellent call quality even in weak signal areas. The antenna's design enhances durability and efficiency, extending communication distance.
Technical Specifications
General
- Frequency Range: UHF (403-527 MHz)
- Channel Capacity: 64
- Zone Capacity: 4
- Channels Per Zone: 16
- Channel Spacing: 12.5kHz/20kHz/25kHz
- Operating Voltage: 7.4V
- Battery: 1500mAh (Standard), 2000mAh (Optional)
- Battery Life: Analogue: 12h (1500mAh), 16h (2000mAh); Digital: 16h (1500mAh), 22h (2000mAh)
- Weight (with antenna & battery): 210g±5%g
- Dimensions (H x W x D): 115 x 54.5 x 29.5mm
- BT (optional): BT 5.0 BLE+EDR
Receiver
- Sensitivity: Digital: 0.1 μV / BERS% ; Analogue: 0.1 μV (12dB SINAD)
- Adjacent Channel Selectivity: TIA-603: [email protected]; 70dB@20/25kHz
- Intermodulation: TIA-603: [email protected]/20/25kHz
- Spurious Response Rejection: TIA-603: [email protected]/20/25kHz
- Blocking: TIA-603: 80dB
- Hum and Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output: 1W
- Rated Audio Distortion: <3%
- Audio Response: +1 to -3dB
- Conducted Spurious Emission: <-57dBm
Transmitter
- RF Power Output: UHF: 4W/1W
- FM Modulation: 11 [email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
- Conducted/Radiated Emission: -36dBm<1GHz; -30dBm>1GHz
- Modulation Limiting: ±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- FM Hum & Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Adjacent Channel Power: [email protected]; 70dB@20/25kHz
Environmental
- Operating Temperature: -30°C ~ +60°C
- Storage Temperature: -40°C ~ +85°C
- ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
- Dust and Water Intrusion: IEC60529-IP54 (IP67 optional)
- Humidity: MIL-STD-810 G
- Shock and Vibration: MIL-STD-810 G
