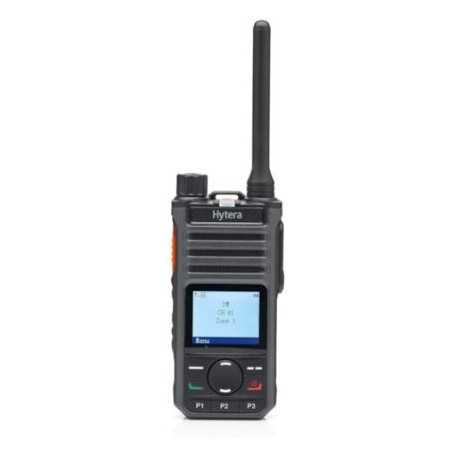

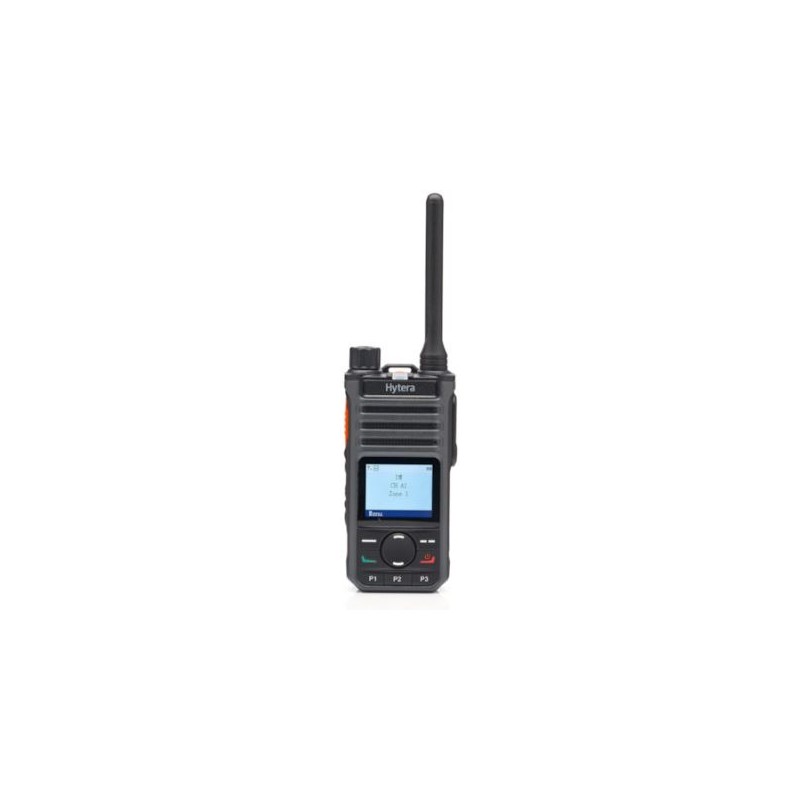

Hytera BP565 BT DMR and Analogue UHF Radio

Enhance your business communication with the Hytera BP565 BT DMR and Analogue UHF Radio. Equipped with powerful digital features, this versatile radio offers both digital and analogue compatibility, ensuring seamless integration with your existing systems. With an extended range and 128 channels, group communication has never been more flexible.

Key Features

• High Energy Battery
  • Uses internationally recognized brand batteries.
  • Maintains 80% capacity after 500 charge-discharge cycles.
  • Fast charging: 0% to 100% in 1.8 hours.
  • Quick charge for 1 hour provides 10 hours of usage.
  • 10W rapid-rate charger operates in extreme temperatures.
• Clear and Loud Audio
  • Lightweight and compact design.
  • Intelligent noise reduction algorithm with three-level adjustment.
  • 3W high-power loudspeaker with up to 90dBA loudness.
  • Excellent howling suppression for clear communication.
• Digital and Analogue Compatible
  • Supports both digital and analogue modes.
  • Features priority interrupt, basic encryption, text messaging, and roaming.
  • 128 channels for flexible group communication.
• Excellent Coverage
  • High sensitivity receiving module for better signal penetration.
  • Durable monopole antenna with enhanced radiation efficiency.

Technical Specifications

General

• Frequency Range: UHF (403-527 MHz)
• Channel Capacity: 128
• Zone Capacity: 8
• Channels Per Zone: 16
• Channel Spacing: 12.5kHz/20kHz/25kHz
• Operating Voltage: 7.4V
• Battery: 1500mAh (Standard), 2000mAh (Optional)
• Battery Life (5/5/90 Duty Cycle, High TX Power):
  • Analogue: 12h (1500mAh), 16h (2000mAh)
  • Digital: 16h (1500mAh), 22h (2000mAh)
• Weight (with antenna & battery): 230g±5%g
• Dimensions (H x W x D): 115X54.5X29.5mm
• BT (Optional): BT 5.0 BLE+EDR
• Display: 1.77 inch TFT

Receiver

• Sensitivity: Digital: 0.1 BμV / BERS%, Analogue: 0.1 BμV (12dB SINAD)
• Adjacent Channel Selectivity: TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz
• Intermodulation: TIA-603: 70dB@l 2.5/20/25kHz
• Spurious Response Rejection: TIA-603: 70dB@l 2.5/20/25kHz
• Blocking: TIA-603: B0dB
• Hum and Noise: 40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz
• Rated Audio Power Output: 1W
• Rated Audio Distortion: <3%
• Audio Response: +1 to -3dB
• Conducted Spurious Emission: <-57dBm

Transmitter

• RF Power Output: UHF: 4W/1W
• FM Modulation: 11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
• Conducted/Radiated Emission: -36dBm<lGHz; -30dBm>l GHz
• Modulation Limiting: ±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
• FM Hum & Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
• Adjacent Channel Power: [email protected]; 70dB@20/25kHz

Environmental

• Operating Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +85°C
• ESD: IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air)
• Dust and Water Intrusion: IEC60529-IP54 (IP67 optional)
• Humidity: MIL-STD-810 G
• Shock and Vibration: MIL-STD-810 G
