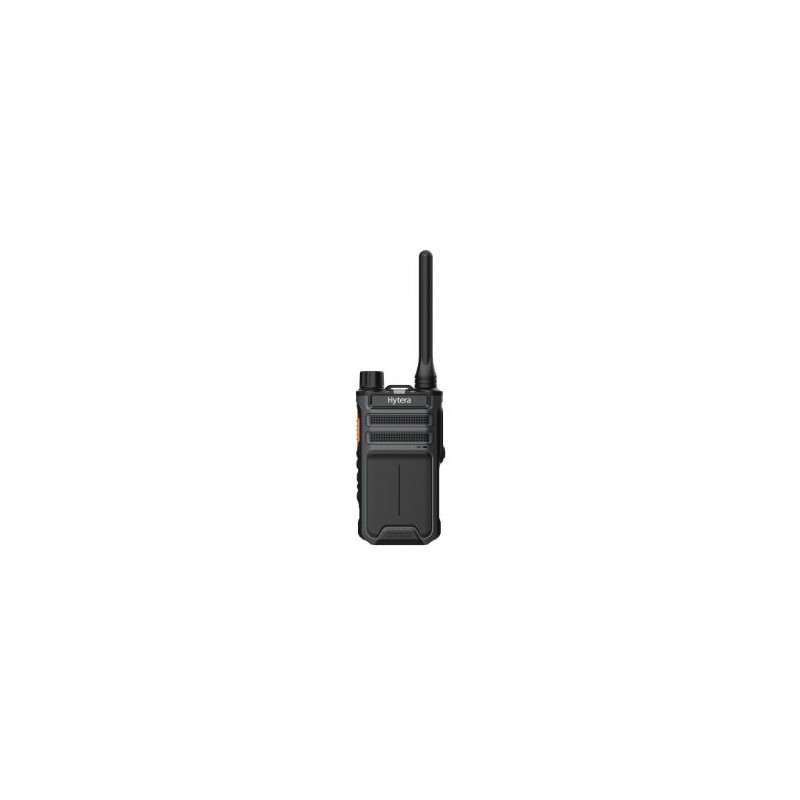

Hytera AP515 Analog Radio VHF
150.84 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise.
Functions
EXTENDED COMMUNICATIONS DISTANCE
Brand-new radio frequency scheme and antenna design | Sensitivity up to 0.18 μV | Communication distance increased by 11%
CLEAR AND LOUD AUDIO
Noise cancellation | Loudness up to 90 dB (at 30 cm away, 300 Hz –3 kHz), increased by 3.4%
IMPROVED USER EXPERIENCE
Flame-retardant polycarbonate plastic housing | Worm finish | Double-shot injection | Long-life keys | Center-placed antenna and knob from the side view | Independent volume keys | 9-pin accessory connector
FAST CHARGING
95% charged in 2.5 hours and fully charged in just 3.15 hours. Thanks to USB Type C connectivity it can be easily charged with standard USB cables and power supply units and even USB power banks.
Technical Specifications
General
Frequency Range
VHF (136-174 MHz)
Channel Capacity
32
Zone Capacity
2
Channels Per Zone
16
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
3.7V (rated)
Battery
4000mAh 3.7V
Battery Life (5/5/90 Duty Cycle, High TX Power)
18h
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Dimensions (H x W x D)
105*55*29.5mm
Weight (with antenna & battery)
200g ±5g
BT (Optional)
BT 5.0 BLE+EDR
Receiver
Sensitivity
0.18μV (12dB SINAD)
Adjacent Channel Selectivity
TIA-603: [email protected]; 70dB@20/25kHz
ETSI: [email protected]; 70dB@20/25kHz
Intermodulation
TIA-603: [email protected]/20/25kHz
ETSI: [email protected]/20/25kHz
Hum and Noise
[email protected]; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1~-3dB
Conducted Spurious Emission
<-57dBm
Transmitter
RF Power Output
VHF: 4-5W / 1W
FM Modulation
[email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
Conducted/Radiated Emission
-36dBm＜1GHz; -30dBm＞1GHz
Modulation Limiting
±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
FM Hum & Noise
[email protected]; 43dB@20kHz; 45dB@25kHz
Adjacent Channel Power
[email protected]; 70dB@20/25kHz
Environmental
Operating Temperature
-20℃ to +60℃
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion
IEC60529-IP54
Humidity
MIL-STD-810 G
Shock and Vibration
MIL-STD-810 G
