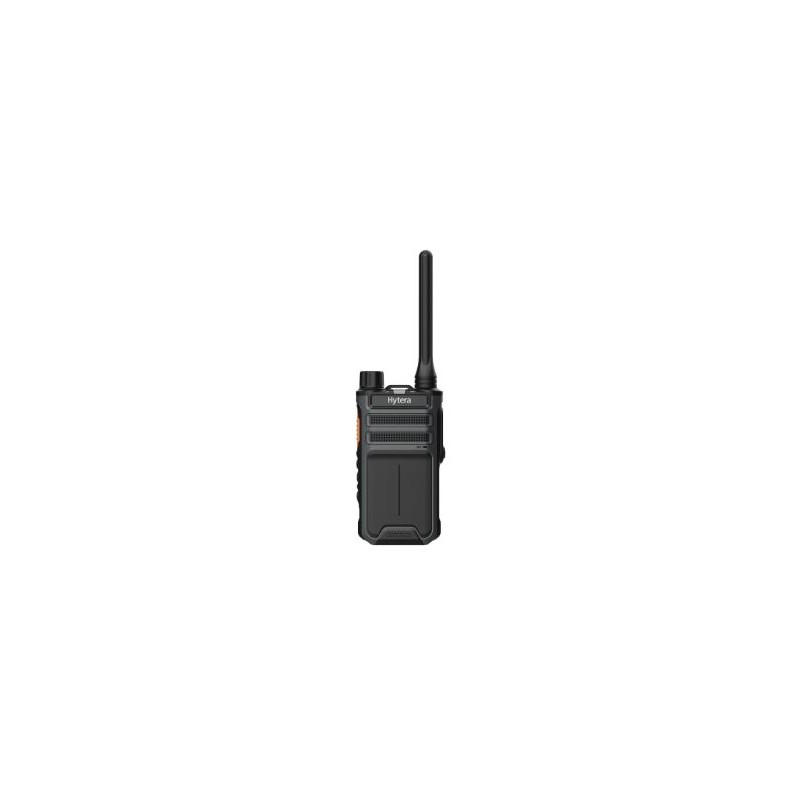

Hytera AP515 BT Analog UHF Radio
750.72 lei net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Hytera AP515 BT Analog UHF Radio - Compact and Powerful Communication Device
The Hytera AP515 BT Analog UHF Radio offers exceptional audio clarity with its powerful 3W speaker, ensuring that you can hear and be heard even in noisy environments. This compact and lightweight radio is designed for convenience and efficiency.
Key Features
- Extended Communications Distance:
- Innovative radio frequency scheme and antenna design
- Sensitivity up to 0.18 μV
- Communication distance increased by 11%
- Clear and Loud Audio:
- Advanced noise cancellation technology
- Loudness up to 90 dB (at 30 cm away, 300 Hz –3 kHz), increased by 3.4%
- Improved User Experience:
- Durable flame-retardant polycarbonate plastic housing
- Comfortable worm finish and double-shot injection
- Long-life keys and center-placed antenna for ease of use
- Independent volume keys and 9-pin accessory connector
- Fast Charging:
- 95% charged in 2.5 hours and fully charged in 3.15 hours
- USB Type C connectivity for easy charging with standard USB cables and power banks
Technical Specifications
General
- Frequency Range: UHF (403-527 MHz)
- Channel Capacity: 32
- Zone Capacity: 2
- Channels Per Zone: 16
- Channel Spacing: 12.5kHz/20kHz/25kHz
- Operating Voltage: 3.7V (rated)
- Battery: 4000mAh 3.7V
- Battery Life (5/5/90 Duty Cycle, High TX Power): 18h
- Frequency Stability: ±0.5ppm
- Antenna Impedance: 50Ω
- Dimensions (H x W x D): 105*55*29.5mm
- Weight (with antenna & battery): 200g ±5g
- BT (Optional): BT 5.0 BLE+EDR
Receiver
- Sensitivity: 0.18μV (12dB SINAD)
- Adjacent Channel Selectivity: TIA-603: [email protected]; 70dB@20/25kHz
- Intermodulation: TIA-603: [email protected]/20/25kHz
- Hum and Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output: 0.5W
- Rated Audio Distortion: ≤3%
- Audio Response: +1~-3dB
- Conducted Spurious Emission: <-57dBm
Transmitter
- RF Power Output: UHF: 3-4W / 1W
- FM Modulation: [email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
- Conducted/Radiated Emission: -36dBm＜1GHz; -30dBm＞1GHz
- Modulation Limiting: ±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- FM Hum & Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Adjacent Channel Power: [email protected]; 70dB@20/25kHz
Environmental
- Operating Temperature: -20℃ to +60℃
- Storage Temperature: -40℃ to +85℃
- ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
- Dust and Water Intrusion: IEC60529-IP54
- Humidity: MIL-STD-810 G
- Shock and Vibration: MIL-STD-810 G
