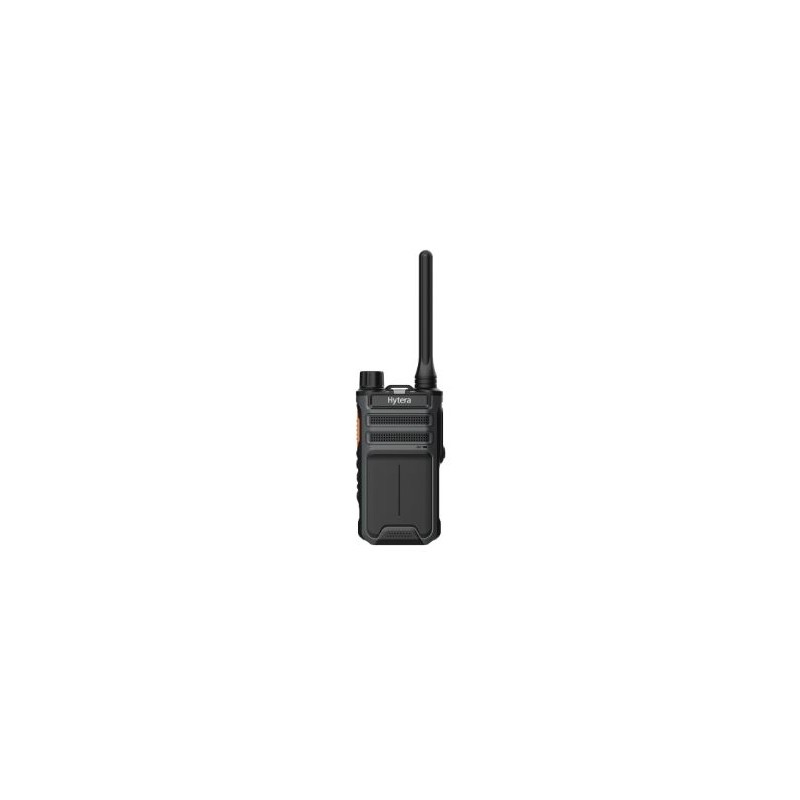

Hytera AP515 BT Analog VHF Radio
287.34 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Hytera AP515 BT Analog VHF Radio with Enhanced Audio and Connectivity
The Hytera AP515 BT Analog VHF Radio is a compact and lightweight communication device that ensures you hear and are heard clearly, even in noisy environments. Equipped with a powerful 3W speaker, it offers exceptional audio quality, making it ideal for various professional and personal applications.
Key Features
- Extended Communications Distance:
- New radio frequency scheme and antenna design
- Sensitivity up to 0.18 μV
- 11% increase in communication range
- Clear and Loud Audio:
- Effective noise cancellation
- Audio loudness up to 90 dB (at 30 cm distance, 300 Hz – 3 kHz), improved by 3.4%
- Improved User Experience:
- Durable flame-retardant polycarbonate plastic housing
- Worm finish with double-shot injection
- Long-lasting keys and center-placed antenna
- Independent volume keys and 9-pin accessory connector
- Fast Charging:
- 95% charged in 2.5 hours, fully charged in just 3.15 hours
- USB Type C connectivity for convenient charging
Technical Specifications
General
- Frequency Range: VHF (136-174 MHz)
- Channel Capacity: 32
- Zone Capacity: 2
- Channels Per Zone: 16
- Channel Spacing: 12.5kHz/20kHz/25kHz
- Operating Voltage: 3.7V (rated)
- Battery: 4000mAh 3.7V
- Battery Life: 18 hours (5/5/90 Duty Cycle, High TX Power)
- Frequency Stability: ±0.5ppm
- Antenna Impedance: 50Ω
- Dimensions (H x W x D): 105 x 55 x 29.5 mm
- Weight (with antenna & battery): 200g ±5g
- Bluetooth (Optional): BT 5.0 BLE+EDR
Receiver
- Sensitivity: 0.18μV (12dB SINAD)
- Adjacent Channel Selectivity: TIA-603: [email protected]; 70dB@20/25kHz
- Intermodulation: TIA-603: [email protected]/20/25kHz
- Hum and Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output: 0.5W
- Rated Audio Distortion: ≤3%
- Audio Response: +1~-3dB
- Conducted Spurious Emission: <-57dBm
Transmitter
- RF Power Output: VHF: 4-5W / 1W
- FM Modulation: [email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
- Conducted/Radiated Emission: -36dBm＜1GHz; -30dBm＞1GHz
- Modulation Limiting: ±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- FM Hum & Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
- Adjacent Channel Power: [email protected]; 70dB@20/25kHz
Environmental
- Operating Temperature: -20℃ to +60℃
- Storage Temperature: -40℃ to +85℃
- ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
- Dust and Water Intrusion: IEC60529-IP54
- Humidity: MIL-STD-810 G
- Shock and Vibration: MIL-STD-810 G
