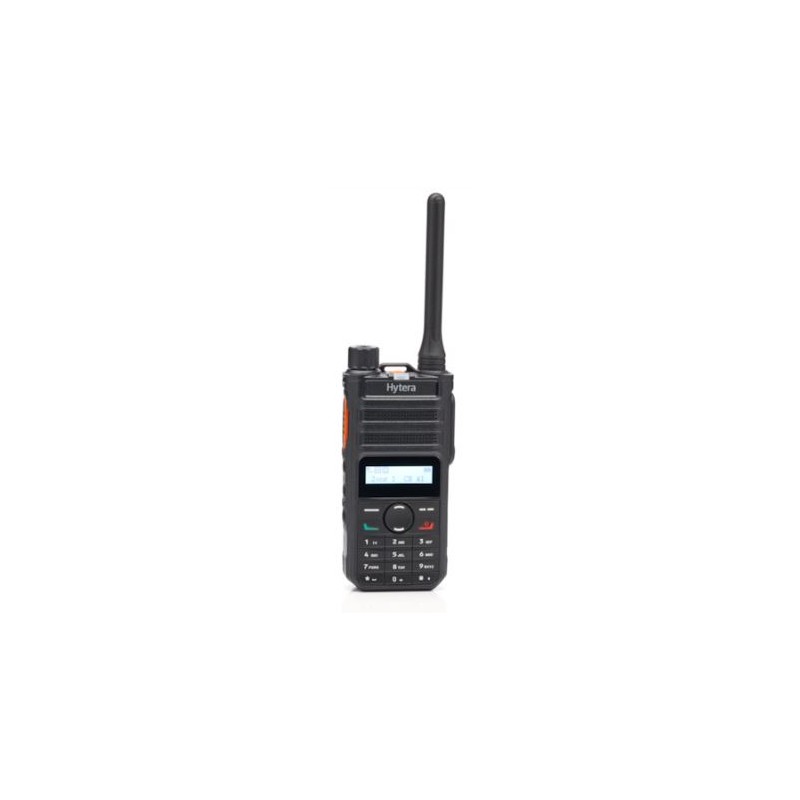

Hytera AP585 Analogue UHF Radio
162.67 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 12-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP5 series will ensure you stay connected and productive.
Functions
SCRAMBLER
Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice
SCAN
Allows you to listen to activities on other channels, keeping track of your colleagues
AROUND
Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater
Technical Specifications
General
Frequency Range
UHF (403-527 MHz)
Channel Capacity
128
Zone Capacity
8
Channels Per Zone
16
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
7.4V (rated)
Battery
1500mAh 7.4V
2000mAh 7.4V (Optional)
Battery Life (5/5/90 Duty Cycle, High TX Power)
12h (1500mAh)
16h (2000mAh)
Dimensions (H x W x D)
115*55*29.5mm
Weight (with antenna & battery)
230g±5g
Display
1.44 inch LCD
BT (optional)
BT 5.0 BLE+EDR
Receiver
Sensitivity
0.18μV (12dB SINAD)
Hum and Noise
[email protected]; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output
1W
Rated Audio Distortion
≤3%
Audio Response
+1~-3dB
Transmitter
RF Power Output
UHF: 4W / 1W
FM Modulation
[email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
Modulation Limiting
±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
Conducted/Radiated Emission
-36dBm＜1GHz; -30dBm＞1GHz
Environmental
Operating Temperature
-20℃ to +60℃
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion
IEC60529-IP54 (IP67 optional)
Humidity
MIL-STD-810 G
Shock and Vibration
MIL-STD-810 G
Data sheet
