Hytera AP585 BT Analog UHF Radio
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

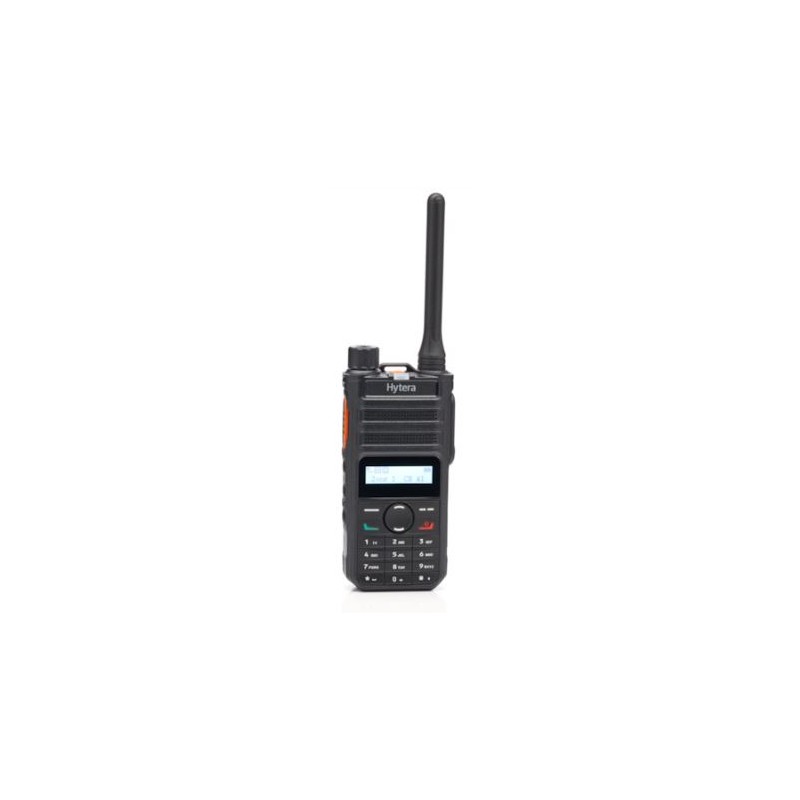

Hytera AP585 BT Analog UHF Radio

Introducing the Hytera AP585 BT Analogue Radio UHF – the ultimate solution for seamless and instant communication in your business operations. This high-performance radio offers exceptional sound quality, long-lasting battery life, and user-friendly design with Bluetooth capabilities. Designed to operate efficiently in demanding environments, the AP585 ensures reliable communication across a wide range of industries, such as construction, security, event management, and more. Its robust construction and advanced features like channel scan, CTCSS/CDCSS encoding, and squelch tail elimination make it an indispensable tool for any professional team. Experience the exceptional performance of the Hytera AP585 and keep your team connected with this versatile, durable, and top-performing analogue radio.
223.63 $
Tax included

181.81 $ net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 12-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP5 series will ensure you stay connected and productive.



Functions

SCRAMBLER

Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice

SCAN

Allows you to listen to activities on other channels, keeping track of your colleagues

AROUND

Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater



Technical Specifications

General

Frequency Range

UHF (403-527 MHz)

Channel Capacity

128

Zone Capacity

8

Channels Per Zone

16

Channel Spacing

12.5kHz/20kHz/25kHz

Operating Voltage

7.4V (rated)

Battery

1500mAh 7.4V

2000mAh 7.4V (Optional)

Battery Life (5/5/90 Duty Cycle, High TX Power)

12h (1500mAh)

16h (2000mAh)

Dimensions (H x W x D)

115*55*29.5mm

Weight (with antenna & battery)

230g±5g

Display

1.44 inch LCD

BT (optional)

BT 5.0 BLE+EDR

Receiver

Sensitivity

0.18μV (12dB SINAD)

Hum and Noise

[email protected]; 43dB@20kHz; 45dB@25kHz

Rated Audio Power Output

1W

Rated Audio Distortion

≤3%

Audio Response

+1~-3dB

Transmitter

RF Power Output

UHF: 4W / 1W

FM Modulation

[email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz

Modulation Limiting

±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz

Conducted/Radiated Emission

-36dBm＜1GHz; -30dBm＞1GHz

Environmental

Operating Temperature

-20℃ to +60℃

Storage Temperature

-40℃ to +85℃

ESD

IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)

Dust and Water Intrusion

IEC60529-IP54 (IP67 optional)

Humidity

MIL-STD-810 G

Shock and Vibration

MIL-STD-810 G

Data sheet
