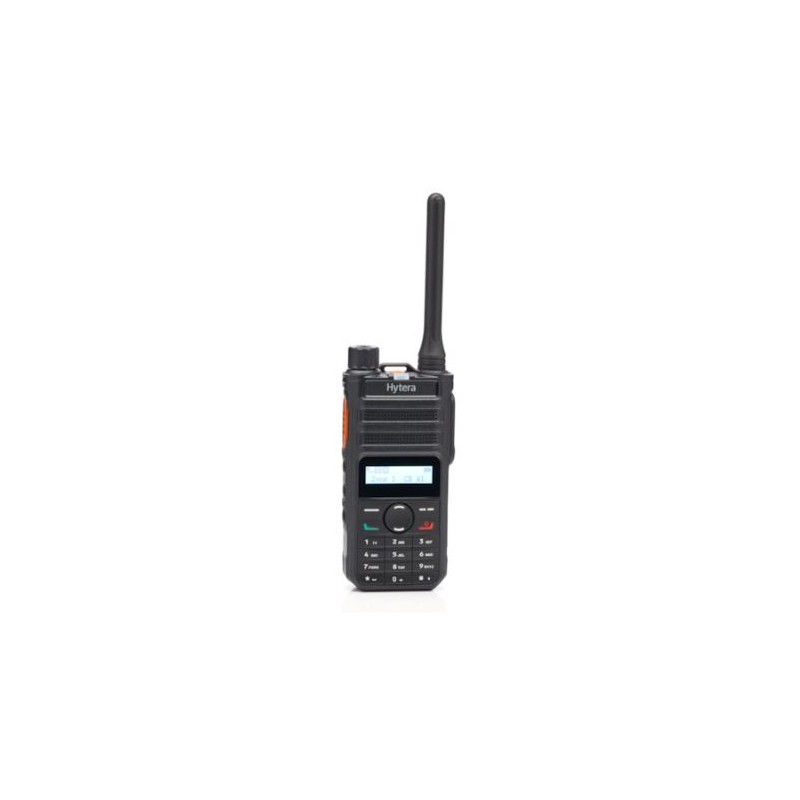

Hytera AP585 BT Analog Radio VHF

Discover the Hytera AP585 BT Analog Radio VHF, perfect for seamless communication in any business setting. This high-performance radio delivers crystal-clear audio for effective team interactions. Its durable design and user-friendly interface make it an ideal choice for industries like construction, retail, and hospitality. With built-in Bluetooth, enjoy hands-free operation to boost productivity and safety. Choose the Hytera AP585 BT for reliable and efficient communication tailored to your organizational needs.
821.39 AED
Tax included

667.79 AED net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

Hytera AP585 BT VHF Analog Radio

Hytera AP585 BT VHF Analog Radio

Experience exceptional audio clarity with the Hytera AP585 BT VHF Analog Radio. This compact and lightweight device is equipped with a powerful 3W speaker, ensuring that you can hear and be heard even in noisy environments. With an impressive 12-hour battery life, it keeps you connected throughout your day.

Charging is convenient and flexible with the Type-C USB port, allowing you to power up using a power bank wherever you are. The extended range and a suite of productivity features make the AP585 BT an essential tool for staying connected and efficient.

Key Features

  • SCRAMBLER: Encrypts your voice communications to protect against casual listeners.
  • SCAN: Monitor activities on other channels, keeping track of your team.
  • AROUND: Continue communication in direct mode when out of repeater coverage.

Technical Specifications

General

  • Frequency Range: VHF (136-174 MHz)
  • Channel Capacity: 128
  • Zone Capacity: 8
  • Channels Per Zone: 16
  • Channel Spacing: 12.5kHz/20kHz/25kHz
  • Operating Voltage: 7.4V (rated)
  • Battery: 1500mAh 7.4V (standard), 2000mAh 7.4V (optional)
  • Battery Life: 12h (1500mAh), 16h (2000mAh)
  • Dimensions: 115 x 55 x 29.5 mm
  • Weight: 230g ± 5g (with antenna & battery)
  • Display: 1.44 inch LCD
  • Bluetooth: BT 5.0 BLE+EDR (optional)

Receiver

  • Sensitivity: 0.18μV (12dB SINAD)
  • Hum and Noise: [email protected]; 43dB@20kHz; 45dB@25kHz
  • Rated Audio Power Output: 1W
  • Rated Audio Distortion: ≤3%
  • Audio Response: +1~-3dB

Transmitter

  • RF Power Output: VHF: 5W / 1W
  • FM Modulation: [email protected]; 14K0F3E@20kHz; 16K0F3E@25kHz
  • Modulation Limiting: ±[email protected]; ±4.0kHz@20kHz; ±5.0kHz@25kHz
  • Conducted/Radiated Emission: -36dBm<1GHz; -30dBm>1GHz

Environmental

  • Operating Temperature: -20℃ to +60℃
  • Storage Temperature: -40℃ to +85℃
  • ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
  • Dust and Water Intrusion: IEC60529-IP54 (IP67 optional)
  • Humidity: MIL-STD-810 G
  • Shock and Vibration: MIL-STD-810 G

Data sheet

J4W60XA885
