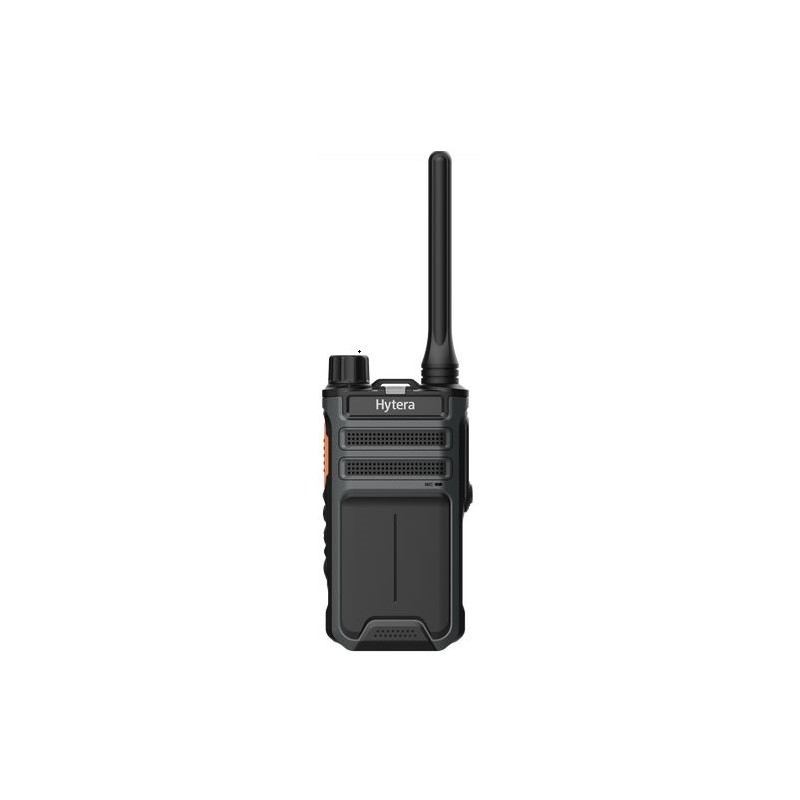

Hytera AP515LF Handheld Analogue Licence Free Radio

The AP515LF series business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP515LF can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 25-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP515LF will ensure you stay connected and productive.

HEAR AND BE HEARD ANYWHERE

You might lose key information due to the unclear audio mixed with heavy background noise, or spend much extra time delivering your information to your partners. The AP515LF has a 3W speaker and advanced noise cancellation algorithm to eliminate unwanted background noise, reduce distortion, and suppress howling caused by other devices when in close proximity of each other, delivering louder and clearer audio. The background noise will no longer slow down your communication, and you can hear and be heard wherever you are.

COMMUNICATE THROUGHOUT THE WORKPLACE

The AP515LF has a high-sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call effect even in weak signal rooms. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps enhance the life time of the antenna and also increase the radiation efficiency compared to traditional antenna by 11% to extend radio communication distance.

DO MORE WHILE CARRYING LESS

With a 4000mAh Li-polymer battery, plus the low consumption design, the AP515LF has an incredibly long 25-hour battery life in its most minimal form to supply your increasing needs, without compromising in style or performance. The 10W USB Type-C charger can get the radio fully charged in 1.8-hours, or charge the radio in just one hour to get 8-hour of talk time. The long life battery also helps your teams power through extended shifts. So you can do more, while carrying less.

TRUSTWORTHY QUALITY

Hytera has the world's largest professional communication production line, and manufactures each device in accordance with Industry 4.0 standards. Strict supplier management system certification, each component meets the quality control requirements to ensure the consistency of product quality.

Technical Specifications

General

Frequency Range

446.0 - 446.2 MHz

Channel Capacity

32

Zone Capacity

2

Zone Channel

16

Channel Spacing

12.5kHz

Operating Voltage

3.7V (rated)

Battery

4000mAh 3.7V

Battery Life (5/5/90 Duty Cycle, High TX Power)

25h

Frequency Stability

±0.5ppm

Antenna Impedance

50Ω

Dimensions (H x W x D)

105 x 55 x 29.5mm

Weight (with antenna & battery)

200g

Receiver

Sensitivity

0.18μV (12dB SINAD)

Adjacent Channel Selectivity

TIA-603: [email protected]

ETSI: [email protected]

Intermodulation

TIA-603: [email protected]

ETSI: [email protected]

Spurious Response Rejection

TIA-603: [email protected]

ETSI: [email protected]

Blocking

TIA-603: 80dB; ETSI: 84dB

Hum and Noise

[email protected]

Rated Audio Power Output

0.5W

Rated Audio Distortion

≤3%

Audio Response

+1~-3dB

Conducted Spurious Emission

<-57dBm

Transmitter

RF Power Output

UHF: 0.5W

FM Modulation

-36dBm＜1GHz; -30dBm＞1GHz

Modulation Limiting

±[email protected]

FM Hum & Noise

[email protected]

Adjacent Channel Power

[email protected]

Audio Response

+1 to -3dB

Audio Distortion

≤3%

Environmental

Operating Temperature

-30℃ to +60℃

(-30℃* Radio only - Battery -20℃)

Storage Temperature

-40℃ to +85℃

ESD

IEC 61000-4-2 (Level 4)

±8kV (contact); ±15kV (air)

Dust and Water Intrusion

IEC 60529 IP54

Humidity

MIL-STD-810 G

Shock and Vibration

MIL-STD-810 G
