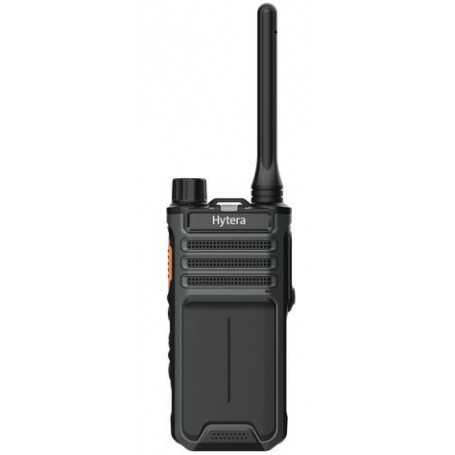

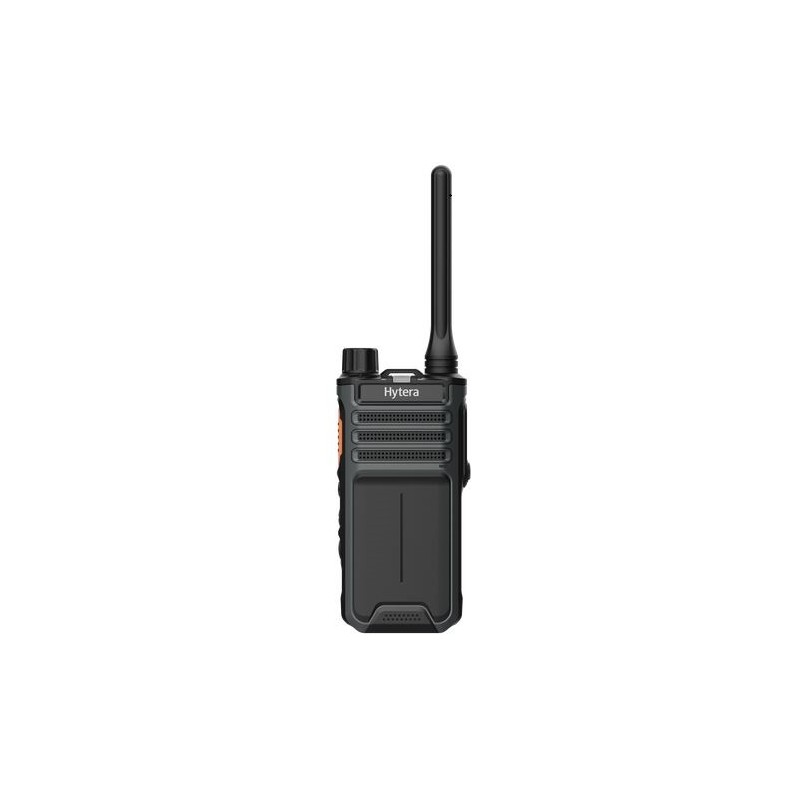

Hytera BP515LF Handheld Analogue Licence Free Radio
212.79 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
The BP515LF is an enhanced two-way business radio that takes advantage of both digital and analogue modes for added flexibility. Powerful digital features like basic encryption and text messaging will enhance your business service. The BP515LF has extended range in class and features 256 channels, making group communication more flexible.
LOUD AND CLEAR AUDIO
Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.
DIGITAL AND ANALOGUE COMPATIBLE
Supports both digital and analogue modes, compatible with other PMR446 analogue and DMR Tier I radios. The BP515LF has extended range in class and features 256 channels, making group communication more flexible.
VOICE NOTIFICATION
Voice notification confirms the operation of programmable buttons or changing the channel.
EXPAND COVERAGE
The BP515LF has a high sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique stable design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 11% to extend radio communication distance.
Technical Specifications
General
Frequency Range
446.0 - 446.2 MHz
Channel Capacity
256
Zone Capacity
4
Zone Channel
16
Channel Spacing
12.5kHz
Operating Voltage
7.4V
Battery
1500mAh (Standard); 2200mAh (Optional)
Battery Life (5/5/90 Duty Cycle, High TX Power)
Analogue: 17hr (1500mAh), 22hr (2200mAh)
Digital: 18hr (1500mAh), 24hr (2200mAh)
Frequency Stability
+0.5ppm
Antenna Impedance
50
Dimensions (H x W x D)
115 x 55 x 29.5mm
Receiver
Sensitivity
Digital: 0.18uV / BER5%
Analogue: 0.18uV (12dB SINAD)
Adjacent Channel Selectivity
TIA-603: [email protected]
ETSI: [email protected]
Intermodulation
TIA-603: [email protected]
ETSI: [email protected]
Spurious Response Rejection
TIA-603: [email protected]
ETSI: [email protected]
Blocking
TIA-603: 80dB
ETSI: 84dB
Hum and Noise
Rated Audio Power Output
1W
Rated Audio Distortion
<3%
Audio Response
+1to-3dB
Conducted Spurious Emission
<-57dBm
Transmitter
RF Power Output
0.5W
FM Modulation
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD
12.5kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm < 1GHz; -30dBm > 1GHz
Digital Vocoder Type
AMBE+2
Environmental
Operating Temperature
-30℃ to +60℃
(-30℃* Radio only - Battery -20℃)
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4)
+8kV (contact) +15kV (Air)
Dust and Water Intrusion
IEC60529-IP54
Humidity
MIL-STD-810-G
Shock and Vibration
MIL-STD-810-G
Data sheet
