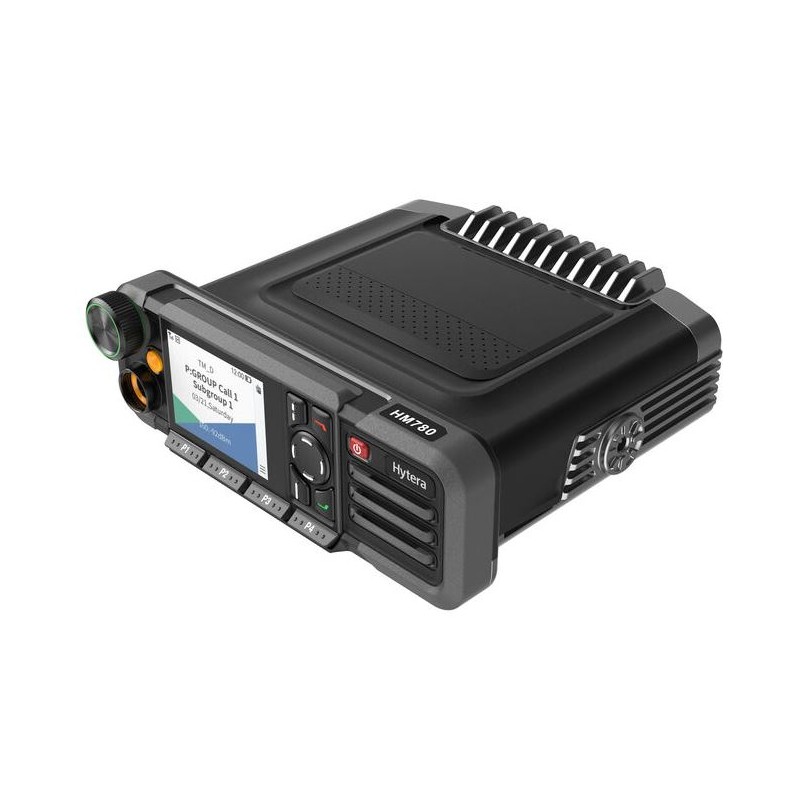

Hytera HM785 High Power 50W DMR mobile radio UHF

The HM785 DMR mobile radio is the next generation of professional digital mobile radio providing greater flexibility and scalability. This mobile radio with DMR technology supports a single control head as standard with options for remote control head mounting and dual control head to suit different environments (such as vehicles, motorcycles and fixed control rooms) ensuring efficient communication. The new UI interface facilitates faster operations and the AI-based noise cancellation technology guarantees clearer voice even in the noisiest environments. It is also the first ever DMR radio that can support the IP Transit Solution feature. It comes with a rich digital mobile feature set including a broad range and ability to integrate into existing services, which provides greater efficiency.

MORE FLEXIBLE

Flexible control heads and accessories allow installation according to the users requirements. The connection cable of the remote control head can be either 3m, 10m or 40m as standard. A connection cable of up to 120m is also available (Customisation required).

CLEARER AUDIO

Adopts AI noise cancellation technology to filter out background noise (such as road noise), eliminate echoes, enhance speech and reduce howling when in close proximity to the transmitting radio. With this technology, the mobile radio provides crisper and clearer audio when transmitting and receiving voice calls.

MORE RELIABLE

Improved receiver sensitivity improves audio quality in weak signal areas to provide clearer audio

General

Frequency range UHF: 350-470 MHz

Channels & zones Channel capacity: 1024, Zone capacity: 64, Channels per zone: 256

Channel spacing Analogue: 12.5kHz/20kHz/25kHz, Digital: 12.5kHz

Operating voltage 13.6 V DC ±15%

Current drain standby: <0.5 A, receive: <2.0 A, transmit 1W: <3 A, transmit 5W: <4 A, transmit 25W: <8 A, transmit 45W/50W: <12 A

Frequency stability +0.5 ppm

Antenna impedance 50 Ohm

Dimensions(W×H×D) 61.5 x 177 x 179 mm

Weight 1520g

Display 2.4 inch LCD display

Digital protocol ETSI-TS102 361-1,-2,-3,-4

Receiver

Sensitivity Analogue: 0.18µV (12dB SINAD), Analogue: 0.16µV (12dB SINAD) (typical), Digital: 0.18µV / BER 5%

Selectivity TIA-603: 60dB @12.5kHz / 70dB @20/25kHz, ETSI: 60 dB @12.5kHz / 70dB @20/25kHz

Intermodulation TIA-603: 70 dB, ETSI: 70 dB

Spurious response rejection TIA-603: 70 dB, ETSI: 70 dB

Blocking TIA-603: 80 dB, ETSI: 84 dB

Hum and noise 40 dB @12.5kHz, 43 dB @20kHz, 45 dB @25kHz

Rated audio power output internal (20 Ohm load): 3W, external (8 Ohm load): 7.5W

Max audio power output internal (20 Ohm load): 8W, external (8 Ohm load): 20W

Rated audio distortion <3%

Audio response +1 to -3 dB

Conducted spurious emission < -57 dBm

Transmitter

RF power output High Power model: 1-45 W (UHF)

FM modulation 11K0F3E @12.5kHz, 14K0F3E @20kHz, 16K0F3E @25kHz

4FSK digital modulation 12.5kHz data only: 7K60FXD, 12.5kHz data and voice: 7K60FXW

Conducted/radiated emission -36dBm @<1GHz; -30dBm @>1GHz

Modulation limiting ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz

FM hum and noise 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz

Adjacent channel power 60dB @12.5kHz; 70dB @20/25kHz

Audio response +1 to -3 dB

Audio distortion <3%

Digital vocoder type AMBE+2™

Environmental

Operating temperature -30°C to +60°C

Storage temperature -40°C to +85°C

ESD IEC 61000-4-2 (level 4), +8kV (contact); +15kV (air)

American Military standard MIL-STD-810G

Dust & water protection IP54

Humidity per MIL-STD-810G standard

Shock and vibration per MIL-STD-810G standard
